ABBOther modular devices2CMA241665R1000 ABB Ener counter. D11 15-M 40A Modbus MID

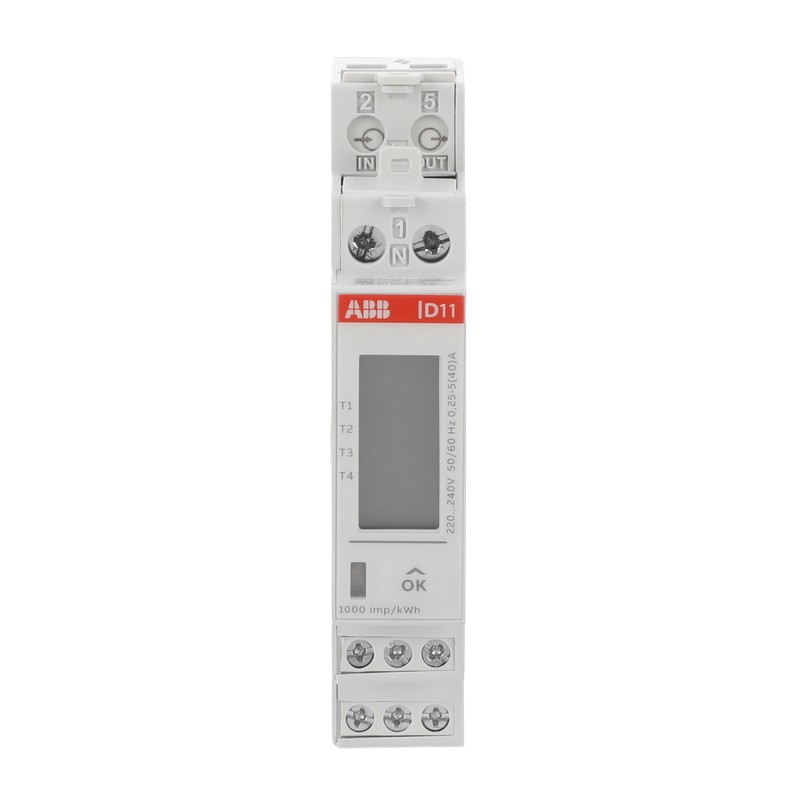

ABB 2CMA241665R1000 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CMA241665R1000 ABB Ener counter. D11 15-M 40A Modbus MID

Code: 2CMA241665R1000

Manufacturer: ABB

Description:

Ener counter. D11 15-M 40A Modbus MID
Energy meter '15', Modbus, 1-phase, 40 A

Categories:

  • Meters > Kilowatt-hour meter
  • ABB > Other modular devices

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 119,47 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ABB EcoSolutions
ABB EcoSolutionsYes
EcoSolutions Profile9AKK108469A7385
Material Resource Reduction (wt. %)Design for Reduced Resource Consumption - 49.4 %
Sustainable Material Content in Product (wt. %)Recycled Metal - 26 %
Mechanically Recycled Polymer - 70 %
Recycled Metal - 76 %
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill
Sustainable Material Content in Packaging (wt. %)FSC Recycled Paperboard - 82 %
Improved Energy Efficiency for CustomersProduct Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line
Offered with Takeback ServicesTake Back for Recycling
End Of Life Disassembling Instructions9AKK108469A6369
Environmental Product Declaration - EPD9AKK108469A4516
Technical
ApplicationPurchase/supply
FunctionElectricity meter
Sub-Function15
Current Rating40 A
Communication InterfaceModbus
AccuracyActive Energy Class B MID (±1%)
Measuring Instrument ConformityMeasurement Instrument Directive (MID)
Meter Tariff ControlInternal
External
Meter Tariff RatingTwo-Tariff
Pulse Output Rate1-999999
Model NumberDirect measurement
Number of Poles1P
Number of Phases1-phase
Number of Counter Positions6
Number of Digital In/Outputs1 Digital Input, 1 Digital Output
Meter TypeDirect connected
Pulse Output TypeElectrical
Type of IndicatorDigital
CommunicationModbus RTU
Number of Batteries0
Connecting Capacity Main Circuit1 ... 10 mm²
Electrical
Rated Voltage (Ur)220 ... 240 V
Voltage Range176...288 V
Rated Current (In)5 A
Maximum 40 A
Frequency (f)50 / 60 Hz
Rated Frequency (f)50 … 60 Hz
Power Consumption (@Pcons)0.69 W
Design
Enclosure MaterialHousing and terminal covers: made with at least 70% of recycle plastic Frontal Panel: UV resistant Polyester
Material Compliance
RoHS Declaration9AKK108469A1600
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240730
REACH Declaration9AKK108467A9482
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240521
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Ambient Air TemperatureOperation  -40 ... +70 °C
Storage -40 ... +85 °C
Degree of ProtectionIP20
Dimensions
Width in Number of Modular Spacings1
Product Net Width17.5 mm
Product Net Height92 mm
Product Net Depth / Length65 mm
Product Net Weight70 g
Screen Size1 in
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.0777 kg
E-Number (Finland)6719073
E-Number (Norway)8002567
Installation
Instructions and Manuals9AKK108469A1075
Mounting TypeDIN-Rail
Popular Downloads
Data Sheet, Technical Information9AKK108468A8828
External Classifications and Standards
ETIM 9EC001506 - Kilowatt-hour meter
ETIM 10EC001506 - Electricity meter
eClassV11.0 : 27142316
StandardsEN 50470-3
IEC 62052-11
IEC 62052-31
IEC 62053-21
IEC 62052-23

ETIM for 2CMA241665R1000 Meters (EC001506)

Feature nameType of meter (EF005441)
Feature valueElectronic
Feature nameNominal current (In) (EF008873)
Feature value40 A
Feature nameMax. current (Imax) (EF000877)
Feature value40 A
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature nameAccuracy class (EF008842)
Feature valueB
Feature namePole type (EF008843)
Feature valueSingle phase
Feature nameModel (EF000010)
Feature valueDirect measurement
Feature nameTariff type (EF007550)
Feature valueTwo-tariff
Feature nameTariff control (EF008834)
Feature valueInternal/external
Feature nameApproval (EF008837)
Feature valueMeasuring Instruments Directive
Feature namePulse output (EF008838)
Feature valueElectrical
Feature namePulse type (EF008839)
Feature valueS0
Feature nameType of indication (EF000306)
Feature valueDigital
Feature nameMounting method (EF000003)
Feature valueDRA (DIN-rail adapter)
Feature nameWidth in number of modular spacings (EF002950)
Feature value1
Feature nameWidth (EF000008)
Feature value17.5 mm
Feature nameDepth (EF000049)
Feature value65 mm
Feature nameHeight (EF000040)
Feature value92 mm
Feature nameType of interface (EF006977)
Feature valueModbus
Feature nameWith lock code (EF008846)
Feature valueYes
Feature nameNumber of positions total (counter) (EF004442)
Feature value6
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
