ABBIndustrial2CCL563110E0254 2ccl563110e0254 ABB SMISSLINE-I. Com FS403E C 20A 30mA

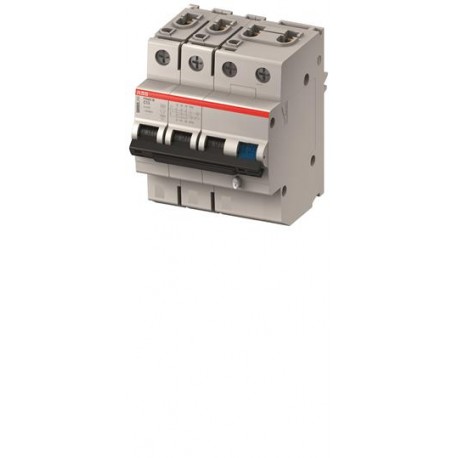

ABB 2CCL563110E0254 2CCL563110E0254 - Image 1

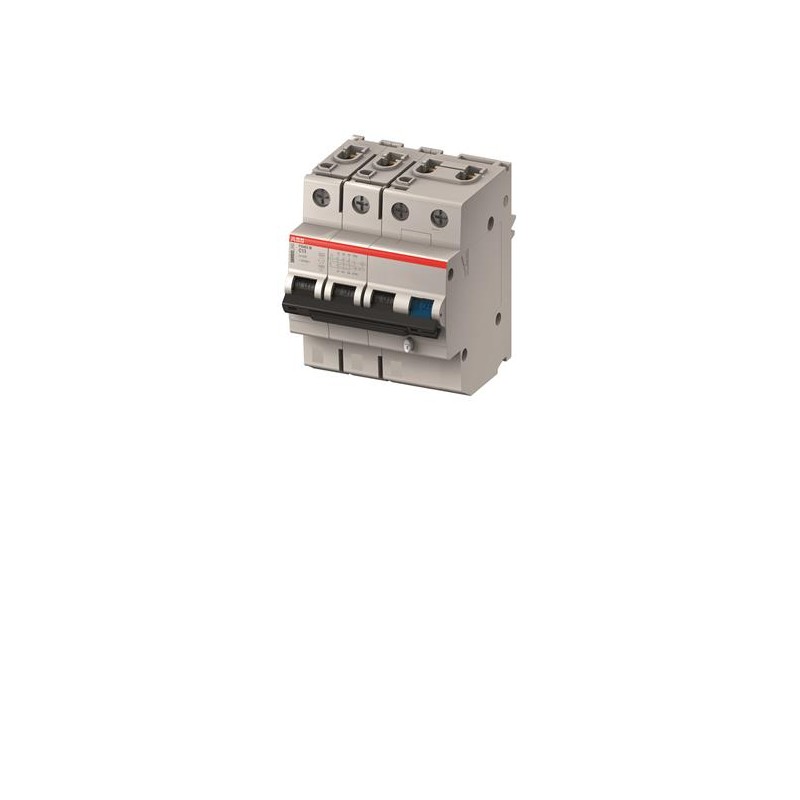

Images are for illustrative purposes only. Please refer to data sheet for details.

2CCL563110E0254 2ccl563110e0254 ABB SMISSLINE-I. Com FS403E C 20A 30mA

Reference: 2CCL563110E0254

Manufacturer: ABB

Description:

SMISSLINE-I. Com FS403E C 20A 30mA
Pluggable Residual Current Circuit Breaker with overcurrent Protection for the SMISSLINE TP System acc. IEC/EN/DIN EN 61009-1, EN/DIN EN 61009-2-1 Rated breaking capacity Icn 10kA Tripping characteristic C Rated current In 25A Rated sensitivity I Δn 0.03 Rated voltage Ue 240/415VAC

Categories:

  • ABB > Industrial

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

b'

General Information

Extended Product Type:
FS403M-C25/0.03
Product ID:
2CCL563110E0254
EAN:
7612271442583
Catalog Description:
FS403M-C25/0.03
Long Description:
Pluggable Residual Current Circuit Breaker with overcurrent Protection for the SMISSLINE TP System acc. IEC/EN/DIN EN 61009-1, EN/DIN EN 61009-2-1  Rated breaking capacity Icn 10kA Tripping characteristic C Rated current In 25A Rated sensitivity  I Δn 0.03 Rated voltage Ue 240/415VAC
\n

Ordering

E-Number (Switzerland):
809181732
EAN:
7612271442583
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362020

Dimensions

Product Net Width:
76 mm
Product Net Height:
90.5 mm
Product Net Length:
72 mm
Product Net Depth / Length:
72 mm
Product Net Weight:
420 g

Container Information

Package Level 1 Units:
carton 1 piece
Package Level 1 Width:
100 mm
Package Level 1 Height:
90 mm
Package Level 1 Depth / Length:
75 mm
Package Level 1 Gross Weight:
420 g
Package Level 1 EAN:
7612271442583

Environmental

Ambient Air Temperature:
Operation -25...40 °C
RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment

Technical UL/CSA

Short-Circuit Current Rating (SCCR):
0.03 A

Additional Information

Ambient Temperature:
-25...40 °C
Degree of Protection:
IP20
Energy Limiting Class:
3
Number of Poles:
4
Number of Protected Poles:
3
Operating Characteristic:
Instantaneous
Overvoltage Category:
III
Pollution Degree:
2
Position of Neutral Terminals:
Right
Product Main Type:
FS400
Product Name:
Residual Current Circuit Breaker with Overcurrent Protection
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
50 %
Rated Cross-Section:
1 - Solid-Core 0...35 mm²

4 - Multi-Wired 0...35 mm²
Rated Current (In):
25 A
Rated Frequency (f):
50...60 Hz
Rated Residual Current:
30 mA
Rated Voltage (Ur):
240 / 415 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Rated Insulation Voltage (Ui):
500 V
Rated Operational Voltage:
240 ... 415 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(415 V AC) 7.5 kA
Rated Short-Circuit Capacity (Icn):
(240 / 415 V AC) 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
10 kA
Release Type:
C
RoHS Date:
20170426
Standards:
IEC 61009-1

EN 61009-1

DIN EN 61009-1

EN 61009-2-1

DIN EN 61009-2-1
Tripping Characteristic:
C
Type of Residual Current:
A type

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n9AKK107492A6192
Declaration of Conformity - CE:\n2CCC451036D0201
Environmental Information:\n2CCC451024D0201
Instructions and Manuals:\n9AKK107680A1664
RoHS Information:\n2CCC413008D0206_RoHS
Dimension Diagram:\n9AKK107492A6192

Classifications

ETIM 4:
EC000003 - Residual current circuit breaker (RCCB)
ETIM 5:
EC000003 - Residual current circuit breaker (RCCB)
ETIM 6:
EC000905 - Earth leakage circuit breaker
ETIM 7:
EC000905 - Earth leakage circuit breaker
Object Classification Code:
FC
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

DATASHEET - PDF

Title
Size
Type
PDF MINIATURE CIRCUIT BREAKERS EN
37 Mbytes
