ABBElectronic relays1SVR760740R0120 ABB RELE TEMP. 3 SENSORS Modbus-RTU Push-in

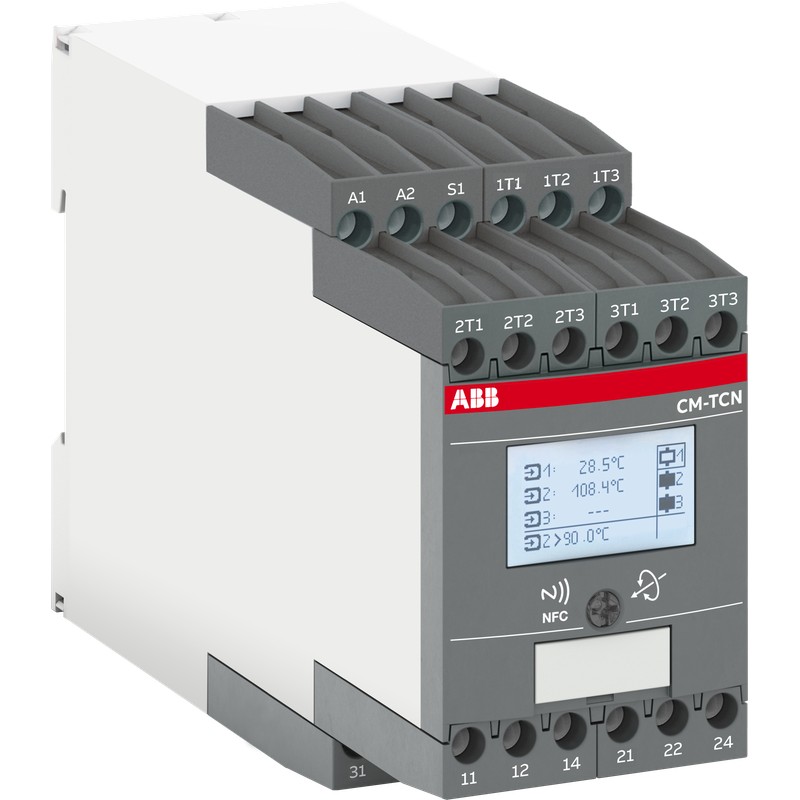

ABB 1SVR760740R0120 1SVR760740R0120 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SVR760740R0120 ABB RELE TEMP. 3 SENSORS Modbus-RTU Push-in

Reference: 1SVR760740R0120

Manufacturer: ABB

Description:

RELE TEMP. 3 SENSORS Modbus-RTU Push-in
CM-TCN.012P Temp. monitoring relays LCD+NFC+RTU, -200..+850°C, 24-240VAC/DC

Categories:

  • Relays > Temperature monitoring relay
  • ABB > Electronic relays

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 412,04 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Ordering
EAN4013614552663
Minimum Order Quantity1 piece
Customs Tariff Number85364900
Popular Downloads
Data Sheet, Technical Information2CDC112286C0201
Instructions and Manuals1SVC750040M0000
2CDC112285M0201
CAD Dimensional Drawing2CDC001079B0201
EPLAN Data9AAC159147_EPLAN
Dimensions
Product Net Width45 mm
Product Net Height85.6 mm
Product Net Depth / Length103.7 mm
Product Net Weight0.27 kg
Technical
FunctionOvertemperature monitoring
Undertemperature monitoring
Over- and undertemperature monitoring
Measuring Range-200 ... 850 °C
Sensor TypePT100
PTC
Bimetal Switch
NTC
PT1000
Rated Control Supply Voltage (Us)24 ... 240 V AC/DC
Rated Frequency (f)Supply Circuit 50 Hz
Supply Circuit 60 Hz
Supply Circuit DC Hz
Output3x 1 C/O Contact, Configurable
Terminal TypeScrewless Terminals
Rated Operational Current AC-12 (Ie)(230 V) 4 A
Rated Operational Current AC-15 (Ie)(230 V) 3 A
Rated Operational Current DC-12 (Ie)(24 V) 4 A
Rated Operational Current DC-13 (Ie)(24 V) 2 A
Minimum Switching Capacity12 V
100 mA
Rated Impulse Withstand Voltage (Uimp)Measuring Circuit / Output Circuit 6 kV
Output Circuit 1 / Output Circuit 2 4 kV
Supply Circuit / Measuring Circuit 6 kV
Supply Circuit / Output Circuit 6 kV
Rated Insulation Voltage (Ui)Measuring Circuit / Output Circuit 600 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 600 V
Supply Circuit / Output Circuit 600 V
Degree of ProtectionHousing IP50
Terminals IP20
Overvoltage CategoryIII
Pollution Degree2
Short-Circuit Protective DevicesOutput Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical DurabilityAC-12 100000 cycle
Mechanical DurabilityNr. Operations 30000000 cycle
Connecting CapacityFlexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length8 mm
Mounting Position1 ... 6
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Technical UL/CSA
Maximum Operating Voltage UL/CSAOutput Circuit 300 V AC
Contact Rating UL/CSAB300
Connecting Capacity UL/CSAFlexible 2x 18-16 AWG
Rigid 2x 20-16 AWG
Pilot Duty UL/CSAB300
Environmental
Ambient Air TemperatureOperation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SVD981001-4501
RoHS Declaration1SVD981001-4401
Toxic Substances Control Act - TSCA2CMT2023-006536
ABB EcoSolutions
Environmental Product Declaration - EPD1SAC200438H0001
Certificates and Declarations
CQC CertificateCQC2018010303056014
CSA CertificateUL-CA-L140448-41-22600202-1
Declaration of Conformity - CCC2020980303000208
Declaration of Conformity - CE1SVD981067-00
Declaration of Conformity - UKCA1SVD981067-10
EU Data Act Compliance Declaration1SFC100125C0341
UL CertificateUL-US-L140448-11-22600202-1
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width97 mm
Package Level 1 Depth / Length52.5 mm
Package Level 1 Height109 mm
Package Level 1 Gross Weight0.299 kg
Package Level 1 EAN4013614552663
External Classifications and Standards
Object Classification CodeB
ETIM 7EC001446 - Temperature monitoring relay
ETIM 8EC001446 - Temperature monitoring relay
ETIM 9EC001446 - Temperature monitoring relay
eClassV11.0 : 27371810
UNSPSC39122331
E-Number (Norway)4187799

ETIM for 1SVR760740R0120 Relays (EC001446)

Feature nameType of electric connection (EF003961)
Feature valueSpring clamp connection
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameNumber of measuring circuits (EF003425)
Feature value1
Feature nameError registration possible (EF003423)
Feature valueNo
Feature nameExternal reset possible (EF003426)
Feature valueNo
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value2
Feature nameTemperature measuring range (EF009788)
Feature value-200 °C
Feature nameWidth (EF000008)
Feature value45 mm
Feature nameHeight (EF000040)
Feature value85.6 mm
Feature nameDepth (EF000049)
Feature value103.7 mm

DATASHEET - PDF

Title
Size
Type
1SVR760740R0120 1SVR760740R0120 EN_1SVR760740R0120.pdf
418 Kbytes
PDF ABB Time Relays CT-C CT-S CT-D 2024 EN
47 Mbytes
