ABBElectronic relays1SVR405622R8200 ABB CR-U125DC3 PLUG-IN RELe

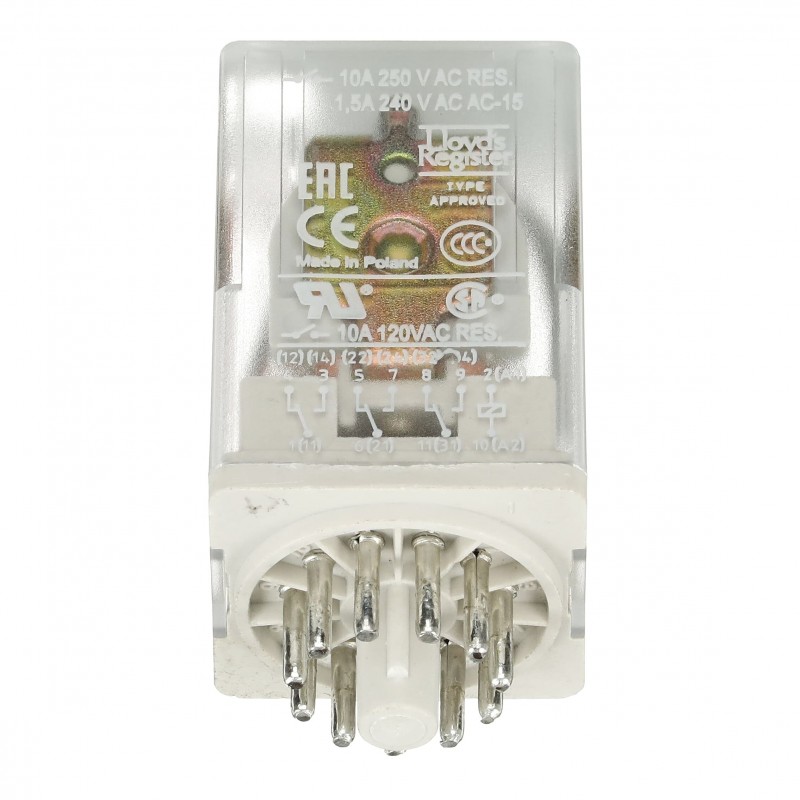

ABB 1SVR405622R8200 1SVR405622R8200 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SVR405622R8200 ABB CR-U125DC3 PLUG-IN RELe

Reference: 1SVR405622R8200

Manufacturer: ABB

Description:

CR-U125DC3 PLUG-IN RELe
CR-U125DC3 Pluggable interface relay 3c/o, A1-A2=125VDC, 250V/10A

Categories:

  • Relays > Switching relay
  • ABB > Electronic relays

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 96,11 €

Unit Price: 9,611 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Ordering
EAN4013614498749
Minimum Order Quantity10 piece
Customs Tariff Number85364900
Popular Downloads
Data Sheet, Technical Information2CDC110004C0210_05
Instructions and Manuals1SVC405600M9000
CAD Dimensional Drawing2CDC001079B0201
EPLAN Data9AAC132578_EPLAN
Dimensions
Product Net Width35 mm
Product Net Height54.4 mm
Product Net Depth / Length35 mm
Product Net Weight0.083 kg
Technical
FunctionPluggable universal interface relay CR-U
Sub-FunctionRelay w/o built in LED
Rated Control Supply Voltage (Us)125 V DC
Rated Operational Voltage250 V AC
Output3 c/o (SPDT) contacts
Output Signal250 V / 10 A
Terminal TypePin
Rated Operational Current AC-12 (Ie)(230 V) 10 A
Rated Operational Current AC-15 (Ie)(120 V) 3 A
(230 V) 1.5 A
Rated Operational Current DC-12 (Ie)(24 V) 10 A
Rated Operational Current DC-13 (Ie)(24 V) 2 A
(250 V) 0.1 A
Rated Insulation Voltage (Ui)250 V
Degree of ProtectionIP40
Mounting Position1
StandardsIEC/EN 63000
IEC/EN 61810-1
UL 508
Technical UL/CSA
Maximum Operating Voltage UL/CSA300 V AC
Pilot Duty UL/CSAB300
Flammability According to UL94HB
Environmental
Ambient Air TemperatureOperation -40 ... +70 °C
Storage -40 ... +85 °C
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
RoHS Declaration1SVD981001-4401
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Certificates and Declarations
CCC CertificateCCC_2017010303949759
CQC CertificateCQC2017010303949759
Declaration of Conformity - CCC2020980303000199
Declaration of Conformity - CE1SVD982021-0003
Declaration of Conformity - UKCA1SVD982021-1000
EAC CertificateEAC_RU_C-DE.ME77.B.00446-19
LR CertificateLR_05_20002_E5
UR CertificateUR_E244330
VDE CertificateVDE_40019116
Container Information
Package Level 1 Unitsbox 10 piece
Package Level 1 Width182 mm
Package Level 1 Depth / Length77 mm
Package Level 1 Height76 mm
Package Level 1 Gross Weight0.87 kg
Package Level 1 EAN4013614403859
External Classifications and Standards
Object Classification CodeK
ETIM 7EC001437 - Switching relay
ETIM 8EC001437 - Switching relay
ETIM 9EC001437 - Switching relay
eClassV11.0 : 27371601
UNSPSC39122331

ETIM for 1SVR405622R8200 Relays (EC001437)

Feature nameType of electric connection (EF003961)
Feature valueOther
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameNominal current (EF000001)
Feature value10 A
Feature nameRated control supply voltage DC (EF003980)
Feature value125 V
Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameDrive, polarization (EF003355)
Feature valuePolarized
Feature nameDrive, switching attitude (EF003356)
Feature valueMono stable
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value3
Feature nameWith forced-guided contacts (EF003357)
Feature valueNo
Feature nameType of switch contact (EF003358)
Feature valueSingle contact
Feature nameComplete with socket (EF003359)
Feature valueNo
Feature nameWith LED indication (EF005950)
Feature valueNo
Feature nameMaterial of contact surface (EF004020)
Feature valueOther
Feature nameMaterial contact (EF007544)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameWidth (EF000008)
Feature value35 mm
Feature nameHeight (EF000040)
Feature value54.4 mm
Feature nameDepth (EF000049)
Feature value35 mm
