ABBSwitchboards ArTu1STQ002021B0000 ABB Supports for inter 2ud uprights

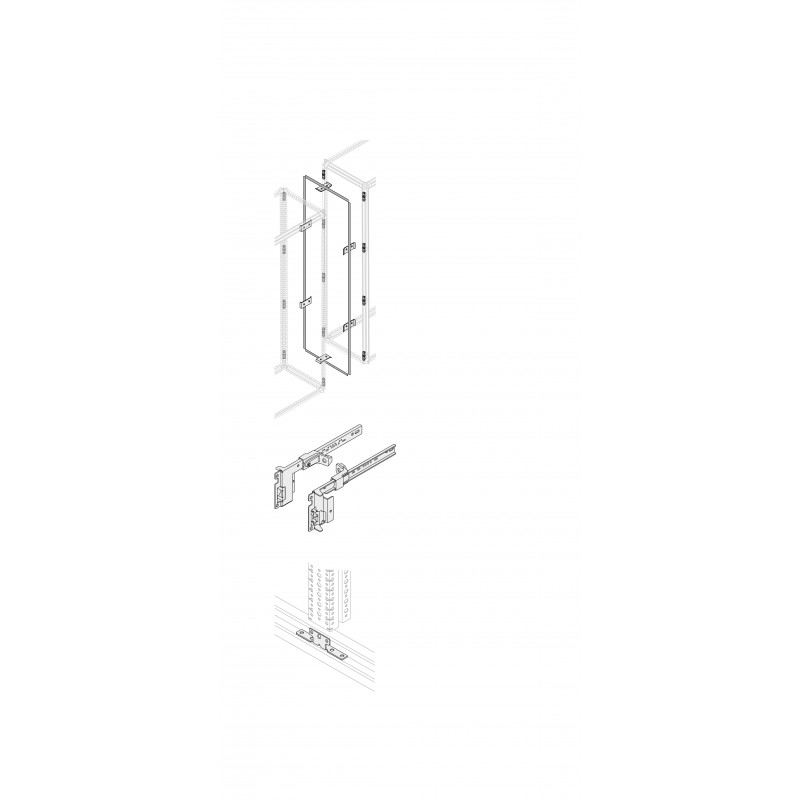

ABB 1STQ002021B0000 1STQ002021B0000 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1STQ002021B0000 ABB Supports for inter 2ud uprights

Reference: 1STQ002021B0000

Manufacturer: ABB

Description:

Supports for inter 2ud uprights
KIT N.2 INTERMEDIATE UPRIGHT BRACKETS

Categories:

  • Fasteners > Mounting rail/-profile
  • ABB > Switchboards ArTu

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 12,83 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical
Suitable ForModular boards - System pro E Power
Suitable for Product ClassMain Distribution Boards
Product Type5P5P20P2090
RemarksETIM
Design
MaterialGalvanized Steel sheet
Material Compliance
RoHS Declaration1STE000077
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20231024
REACH Declaration1STE000078
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20241125
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Environmental
Environmental Information1STC803005D0208
9AKK108467A6707
Dimensions
Product Net Width150 mm
Product Net Height20 mm
Product Net Depth / Length170 mm
Product Net Weight0.06 kg
Engineering
Building Information Modeling – BIM1STC860077
Ordering
Package Level 1 Units1 piece
Package Level 1 Gross Weight0.06 kg
Certificates and Declarations
Declaration of Conformity - CE1STC860111
Installation
Instructions and Manuals1STM604200R0000
Instructions and Manuals (Part 2)1SDC007110G0902
Popular Downloads
Data Sheet, Technical Information1STC803005D0208
External Classifications and Standards
ETIM 9EC000386 - Mounting rail/-profile
ETIM 10EC000386 - Mounting rail/-profile
eClassV11.1 : 27400501

ETIM for 1STQ002021B0000 Fixings and fasteners (EC000386)

Feature nameLength (EF001438)
Feature value170 mm
Feature nameWidth (EF000008)
Feature value150 mm
Feature nameHeight (EF000040)
Feature value20 mm
Feature nameMaterial thickness (EF000386)
Feature value1.5 mm
Feature nameProfile shape (EF005179)
Feature valueOther
Feature nameModel (EF000010)
Feature valueSingle channel
Feature nameType of perforation (EF004147)
Feature valueRim perforated
Feature nameWith toothing (EF000571)
Feature valueNo
Feature nameSnap-off (EF007562)
Feature valueNo
Feature nameSuitable for circuit integrity (EF007806)
Feature valueYes
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameMaterial quality (EF001257)
Feature valueOther
Feature nameColour (EF000007)
Feature valueOther
Feature nameWeight (EF000167)
Feature value0.06 kg

DATASHEET - PDF

Title
Size
Type
1STQ002021B0000 1STQ002021B0000 EN_1STQ002021B0000.pdf
74 Kbytes
PDF CATALOG ABB ARTU EN
21 Mbytes
