ABBContactors and overload relays1SFL617731R5122 ABB GF875-20-22-51 Contactor

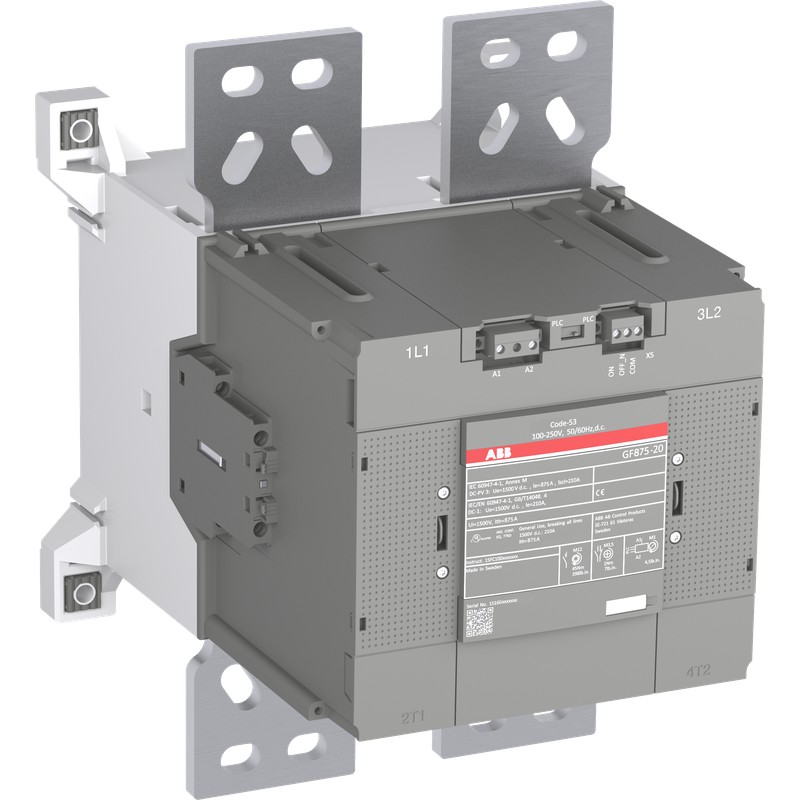

ABB 1SFL617731R5122 1SFL617731R5122 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SFL617731R5122 ABB GF875-20-22-51 Contactor

Reference: 1SFL617731R5122

Manufacturer: ABB

Description:

GF875-20-22-51 Contactor

Categories:

  • Low-voltage industrial components > Power contactor, DC switching
  • ABB > Contactors and overload relays

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 2.726,97 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Ordering
Minimum Order Quantity1 piece
Customs Tariff Number8536490099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals1SFC100003M0001
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width253 mm
Product Net Depth / Length300 mm
Product Net Height355 mm
Product Net Weight14.3 kg
Technical
Number of Main Contacts NO2
Number of Main Contacts NC0
Number of Auxiliary Contacts NO2
Number of Auxiliary Contacts NC2
Number of Poles2P
Rated Operational VoltageMain Circuit 1500 V
Rated Frequency (f)Control Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 900 A
acc. to IEC 60947-4-1, Open Contactors Θ = 60 °C 875 A
acc. to IEC 60947-4-1, Open Contactors Θ = 70 °C 650 A
Rated Operational Current DC-1 (Ie)(1500 V DC) 2-Pole, 40 °C 210 A
Rated Operational Current DC-PV3 (Ie)(1500 V DC) 2-Pole, 60 °C 875 A
(1500 V DC) 2-Pole, 70 °C 650 A
Rated Short-time Withstand Current Low Voltage (Icw)at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 5184 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1139 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 3109 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 6218 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 4150 A
Rated Insulation Voltage (Ui)acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1500 V
acc. to UL/CSA 1500 V
Rated Impulse Withstand Voltage (Uimp)Main Circuit 8 kV
Maximum Electrical Switching Frequency15 cycles per hour
Mechanical Durability0.05 million
Maximum Mechanical Switching Frequency60 cycles per hour
Coil Operating Limits(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)50 Hz 24...60 V
60 Hz 24...60 V
DC Operation 24 ... 60 V
Coil ConsumptionHolding at Max. Rated Control Circuit Voltage 50 Hz 11.6 V·A
Holding at Max. Rated Control Circuit Voltage 60 Hz 11.6 V·A
Holding at Max. Rated Control Circuit Voltage DC 5 V·A
Holding at Max. Rated Control Circuit Voltage DC 5 W
Pull-in at Max. Rated Control Circuit Voltage 50 Hz 420 V·A
Pull-in at Max. Rated Control Circuit Voltage 60 Hz 420 V·A
Pull-in at Max. Rated Control Circuit Voltage DC 880 V·A
Pull-in at Max. Rated Control Circuit Voltage DC 880 W
Operate TimeBetween Coil De-energization and NO Contact Opening 33...70 ms
Between Coil Energization and NO Contact Closing 50...120 ms
Connecting Capacity Main CircuitSolid 600 mm²
Connecting Capacity Auxiliary CircuitFlexible with Ferrule 2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²
Flexible 2x0.75 ... 2.5 mm²
Solid 2x1 ... 4 mm²
Stranded 2x1 ... 4 mm²
Connecting CapacitySolid 600 mm²
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal TypeMain Circuit: Bars
Product NameBlock Contactor
Technical UL/CSA
Maximum Operating Voltage UL/CSAMain Circuit 1500 V
Environmental
Ambient Air TemperatureClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C
Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
End Of Life Disassembling Instructions1SFC100112M0006
Certificates and Declarations
ABS Certificate9AKK108466A1583
BV Certificate9AKK108466A6837
CB Certificate1SFC100041D0101
CQC CertificateCQC20012271919
Declaration of Conformity - CCC2020980304002803
Declaration of Conformity - CE1SFC100019D2701
Declaration of Conformity - UKCA2CMT2020-006118
DNV Certificate9AKK108466A1584
LR Certificate9AKK108466A2274
UL Certificate1SFC100021D0101
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width402 mm
Package Level 1 Depth / Length305 mm
Package Level 1 Height415 mm
Package Level 1 Gross Weight16.45 kg
Package Level 1 EAN7320500541272
External Classifications and Standards
ETIM 7EC002552 - Power contactor, DC switching
ETIM 8EC002552 - Power contactor, DC switching
ETIM 9EC002552 - Power contactor, DC switching
eClassV11.0 : 27371018
UNSPSC39121529
E-Number (Norway)4115800

ETIM for 1SFL617731R5122 Low-voltage industrial controls and switchgear (EC002552)

Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value24 V
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value24 V
Feature nameRated control supply voltage DC (EF003980)
Feature value24 V
Feature nameVoltage type for actuating (EF008242)
Feature valueAC/DC
Feature nameModular version (EF001126)
Feature valueNo
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value2
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value2
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueConnection rail
Feature nameNumber of normally closed contacts as main contact (EF001375)
Feature value0
Feature nameNumber of normally open contacts as main contact (EF001374)
Feature value2
