ABBCommand and signaling1SFA611821R1041 ABB POS-BOX MEPY1-1041

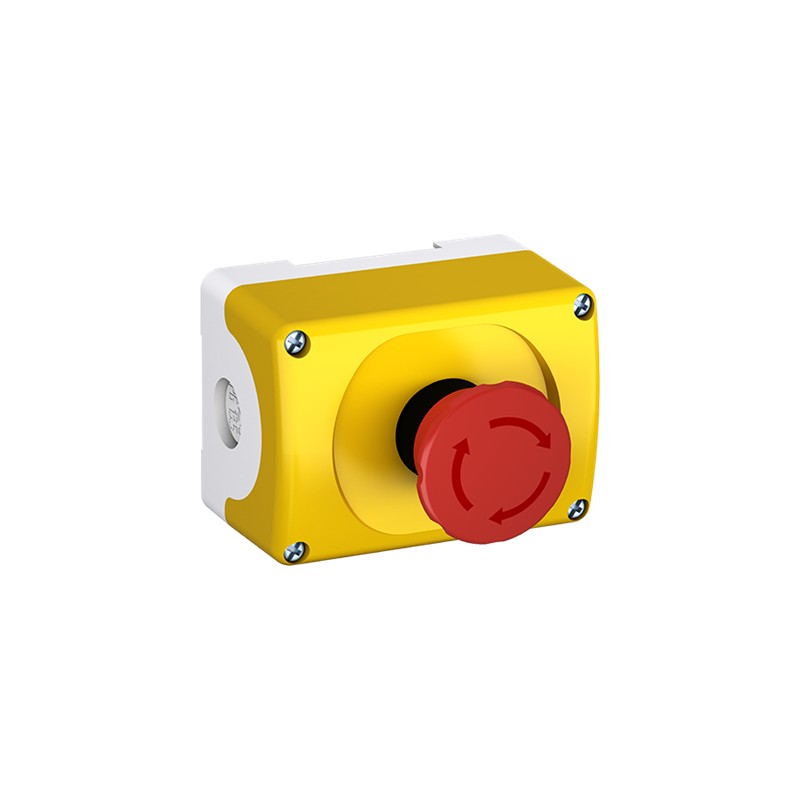

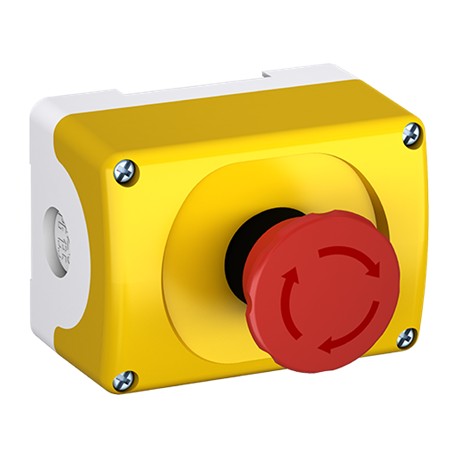

ABB 1SFA611821R1041 1SFA611821R1041 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SFA611821R1041 ABB POS-BOX MEPY1-1041

Reference: 1SFA611821R1041

Manufacturer: ABB

Description:

POS-BOX MEPY1-1041
MEPY1-1041 Enclosure

Categories:

  • Low-voltage industrial components > Control circuit devices combination in enclosure
  • ABB > Command and signaling

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 30,69 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Ordering
Minimum Order Quantity1 piece
Customs Tariff Number8538909999
Product Main TypeMEPY1
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width0.101 m
Product Net Depth / Length0.109 m
Product Net Height0.075 m
Product Net Weight0.223 kg
Technical
ColorYellow/Light grey
Enclosure Type NEMAType1
Type12
Type13
Type3R
Type4
Type4X
Housing MaterialPlastic
Number of Auxiliary Contacts NC2
Number of Auxiliary Contacts NO1
Rated Operational Voltage24 ... 690 V AC/DC
Environmental
Ambient Air TemperatureOperation -25 ... +70 °C
Storage -40 ... +85 °C
Degree of ProtectionFront IP66
Housing IP66
Terminals IP20
MaterialPlastic
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
CQC CertificateCQC2005010304154103
cULus Certificate9AKK107046A9925
Declaration of Conformity - CCC2020980305001528
Declaration of Conformity - CE2CMT2015-005444
Declaration of Conformity - UKCA2CMT2020-006122
DNV GL CertificateE-14107
EAC CertificateEAC RU C-CN.ME77.B.00537/19
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width0.113 m
Package Level 1 Depth / Length0.129 m
Package Level 1 Height0.08 m
Package Level 1 Gross Weight0.34 kg
Package Level 1 EAN7320500512968
External Classifications and Standards
eClassV11.0 : 27371216
E-Number (Sweden)3705899
ETIM 6EC000225 - Control circuit devices combination in enclosure
ETIM 7EC000225 - Control circuit devices combination in enclosure
ETIM 8EC000225 - Control circuit devices combination in enclosure
ETIM 9EC000225 - Control circuit devices combination in enclosure
IDEA Granular Category Code (IGCC)4478 >> Electrical pushbutton enclosure
UNSPSC39121326

ETIM for 1SFA611821R1041 Low-voltage industrial controls and switchgear (EC000225)

Feature nameNumber of command positions (EF001372)
Feature value1
Feature nameNumber of push buttons (EF005558)
Feature value0
Feature nameNumber of indicator lights (EF001965)
Feature value0
Feature nameNumber of key switches (EF005590)
Feature value0
Feature nameNumber of selector switches (EF005567)
Feature value0
Feature nameNumber of mushroom-shaped push-buttons (EF006670)
Feature value0
Feature nameSuitable for emergency stop (EF001433)
Feature valueYes
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value24 V
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value24 V
Feature nameColour housing cover (EF001373)
Feature valueYellow
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value1
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value2
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value0
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameDegree of protection (NEMA) (EF011959)
Feature value4X
