1SEP620022R3001 ABB ZHBM2-3P-M12-EFM fuse disconnect

Code: 1SEP620022R3001

Manufacturer: ABB

Description:

ZHBM2-3P-M12-EFM fuse disconnect

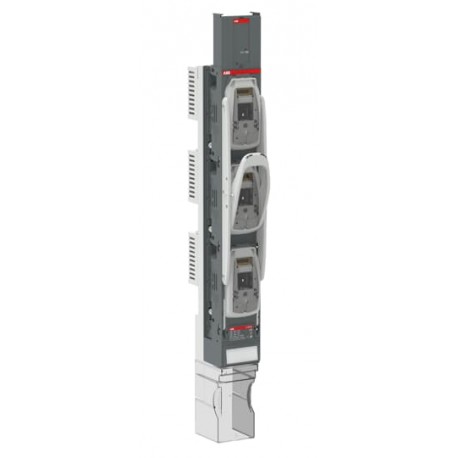

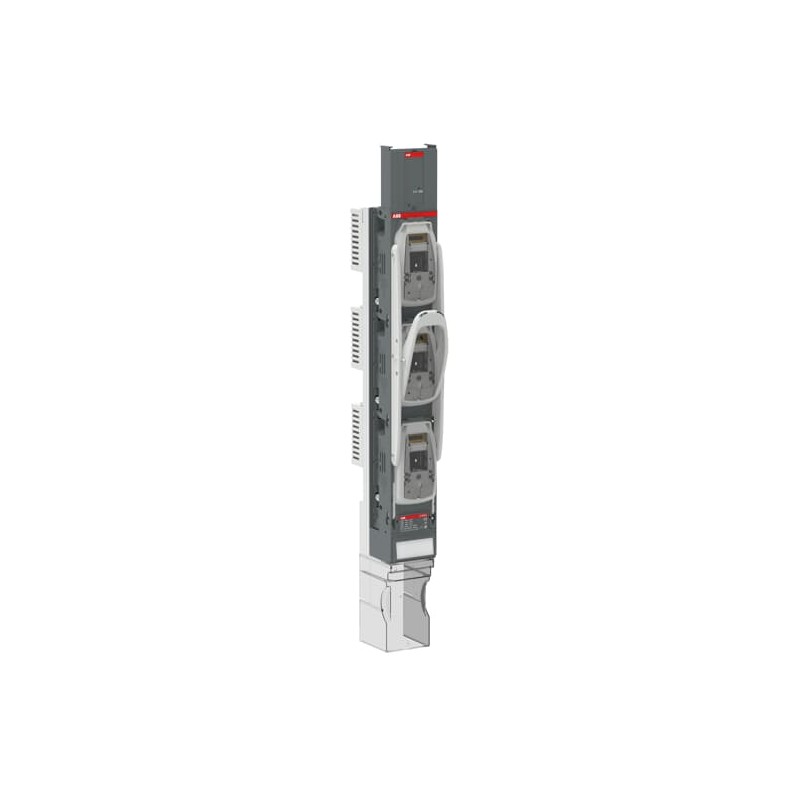

ZHBM2-3P-M12-EFM Fuse switch disconnector

Categories:

Low-voltage industrial components > Fuse switch disconnector
ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 553,47 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill Target	No non-hazardous waste is sent to a landfill
	UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions	9AKK108470A6421
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SCC011021D0201
RoHS Declaration	1SCC011020D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information	1SEC312023D0201
Instructions and Manuals	9AKK107991A1277
Electrical Drawings	9AKK108466A4603
	9AKK108466A4600
Environmental
Degree of Protection	Front IP30
Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85389099
Country or Territory of Origin	Bulgaria
Dimensions
Product Frame Size	High
Product Net Width	99 mm
Product Net Height	773 mm
Product Net Depth / Length	130 mm
Product Net Weight	4.41 kg
Container Information
Package Level 1 Units	shrink-wrap 1 piece
Package Level 1 Width	99 mm
Package Level 1 Depth / Length	218 mm
Package Level 1 Height	773 mm
Package Level 1 Gross Weight	4.41 kg
Package Level 1 EAN	7025840091523
Technical
Degree of Protection	Front IP30
Device Type Manager (DTM)	Fuseswitchdisconnector
Distance Between Phases	185 mm
Electronic Fuse Monitoring	Yes
Fuse Size	NH2
Fuse System	DIN
Handle Type	3P
Number of Poles	3P
Power Loss	at Rated Load 55.5 W
Rated Current (I_n)	Main Circuit 400 A
Rated Impulse Withstand Voltage (U_imp)	Main Circuit 8 kV
Rated Insulation Voltage (U_i)	1000 V
Rated Operational Current AC-20B	(690 V) 400 A
	(500 V) 400 A
	(400 V) 400 A
	(800 V) 400 A
Rated Operational Current AC-21B (I_e)	(690 V) 400 A
	(500 V) 400 A
	(400 V) 400 A
	(800 V) 400 A
Rated Operational Current AC-22B (I_e)	(400 V) 400 A
	(500 V) 400 A
	(800 V) 400 A
Rated Operational Current AC-23B (I_e)	(400V) 400 A
Rated Operational Voltage	Main Circuit 800 V AC
Standards	IEC60947-3
Terminal Type	Bolt
Tightening Torque	25 N·m
Technical UL/CSA
Tightening Torque	25 N·m
Certificates and Declarations
Declaration of Conformity - CE	1SEP500046P0001
External Classifications and Standards
Object Classification Code	Q
ETIM 9	EC001040 - Fuse switch disconnector
ETIM 10	EC001040 - Fuse switch disconnector
eClass	V11.1 : 27371401
WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm)

ETIM for 1SEP620022R3001 Low-voltage industrial controls and switchgear (EC001040)

Feature nameVersion as main switch (EF006981)

Feature valueNo

Feature nameVersion as safety switch (EF006985)

Feature valueNo

Feature nameMax. rated operation voltage Ue AC (EF007355)

Feature value800 V

Feature nameRated permanent current Iu (EF001389)

Feature value400 A

Feature nameConditioned rated short-circuit current Iq (EF001444)

Feature value100 kA

Feature nameSuitable for fuses (EF006692)

Feature valueNH2

Feature nameNumber of poles (EF001391)

Feature value3

Feature nameWith error protection (EF007384)

Feature valueNo

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueBolt connection

Feature nameCable entry (EF000537)

Feature valueBelow

Feature nameEquipped with connectors (EF011696)

Feature valueNo

Feature nameSuitable for floor mounting (EF007243)

Feature valueNo

Feature nameSuitable for front mounting (EF007246)

Feature valueNo

Feature nameSuitable for busbar mounting (EF007259)

Feature valueYes

Feature nameType of control element (EF006976)

Feature valueOther

Feature namePosition control element (EF009410)

Feature valueFront

Feature nameMotor drive optional (EF007386)

Feature valueNo

Feature nameMotor drive integrated (EF006697)

Feature valueNo

Feature nameVersion as emergency stop installation (EF006959)

Feature valueNo

Feature nameDegree of protection (IP), front side (EF003118)

Feature valueIP30
