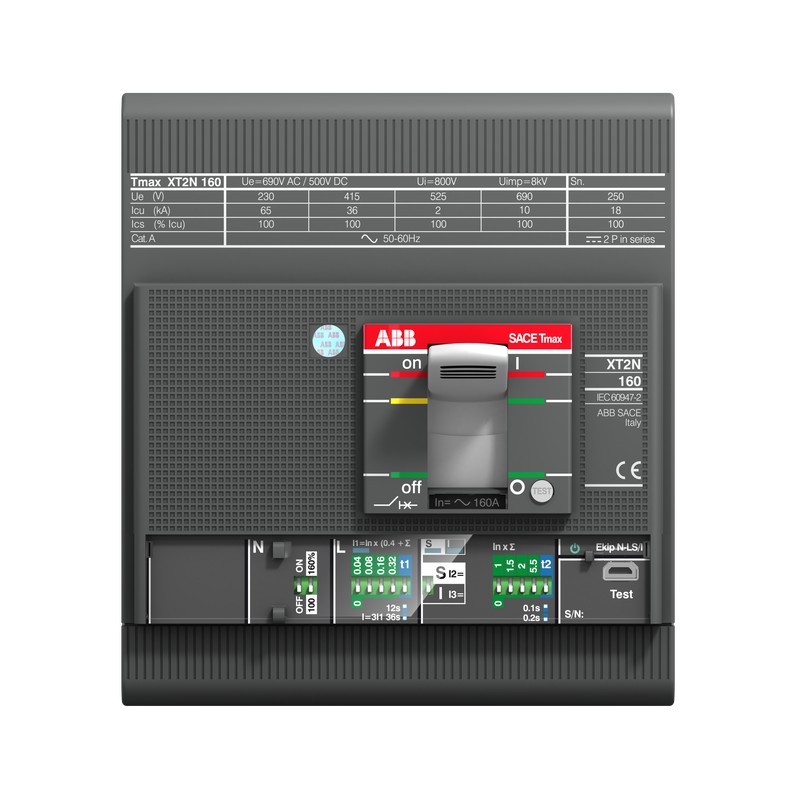

1SDA122941R1 ABB XT2L 160 Ekip Dip LSI In 10A 4pFF

Code: 1SDA122941R1

Manufacturer: ABB

Description:

XT2L 160 Ekip Dip LSI In 10A 4pFF

XT2L 160 Ekip Dip LSI In=10A 4p F F

Categories:

Low-voltage industrial components > Shunt release (for power circuit breaker)
ABB > Molded Case Circuit Breakers ≤ 250 A Xtmax

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
Reviews

Guarantee, repair and return.

Unit Price: 1.052,43 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

ABB EcoSolutions
Environmental Product Declaration - EPD	9AKK108469A1855
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 55.70 %
Material Compliance
REACH Declaration	9AKK108466A1425
RoHS Declaration	9AKK108466A1424
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
Toxic Substances Control Act - TSCA	9AKK108467A8326
Ordering
EAN	8056221176033
Minimum Order Quantity	1 piece
Customs Tariff Number	85362090
Dimensions
Product Net Width	120 mm
Product Net Height	130 mm
Product Net Depth / Length	82.5 mm
Product Net Weight	1.6 kg
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	130 mm
Package Level 1 Height	208 mm
Package Level 1 Depth / Length	145 mm
Package Level 1 Gross Weight	1.6 kg
Package Level 1 EAN	8056221176033
Additional Information
Circuit Breaker Type to be Associated	Power Distribution
Product Main Type	SACE Tmax XT
Product Name	Moulded Case Circuit Breaker
Product Type	Automatic Circuit Breaker
Version	F
CAD Dimensional Drawing	1SDH002230A1002
Technical
Current Type	AC
Electrical Durability	120 cycles per hour
	8000 cycle
Mechanical Durability	240 cycles per hour
	25000 cycle
Number of Poles	4P
Power Loss	at Rated Operating Conditions per Pole 0.10 W
Rated Current (I_n)	10 A
Rated Frequency (f)	50/60 Hz
Rated Impulse Withstand Voltage (U_imp)	8 kV
Rated Insulation Voltage (U_i)	1000 V AC
Rated Operational Voltage	690 V AC
Rated Service Short-Circuit Breaking Capacity (I_cs)	(220 V AC) 150 kA
	(230 V AC) 150 kA
	(240 V AC) 150 kA
	(380 V AC) 120 kA
	(415 V AC) 120 kA
	(440 V AC) 100 kA
	(500 V AC) 60 kA
	(525 V AC) 36 kA
	(690 V AC) 15 kA
Rated Ultimate Short-Circuit Breaking Capacity (I_cu)	(220 V AC) 150 kA
	(230 V AC) 150 kA
	(240 V AC) 150 kA
	(380 V AC) 120 kA
	(415 V AC) 120 kA
	(440 V AC) 100 kA
	(500 V AC) 60 kA
	(525 V AC) 36 kA
	(690 V AC) 18 kA
Rated Uninterrupted Current (I_u)	160 A
Rated Voltage (U_r)	690 V AC
Release	Ekip Dip LSI
Release Type	EL
Short-Circuit Performance Level	L
Standards	IEC
Sub-type	XT2
Certificates and Declarations
ATEX Certificate	No certification needed
Data Sheet, Technical Information	1SDC210100D0206
	1SDC210099D0206
Declaration of Conformity - CE	9AKK106713A5901
VDE Certificate	No certification needed
Mechanical Drawings	1SDH000721R0100
Wiring Diagram	1SDM000068R0001
Instructions and Manuals	1SDH000721R0001
	1SDH000721R0510
External Classifications and Standards
ETIM 9	EC001023 - Shunt release (for power circuit breaker)
ETIM 10	EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code	Q
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
