ABBMolded case "Isomax-Tmax"1SDA101909R1 ABB XT7D 1000 4p F F

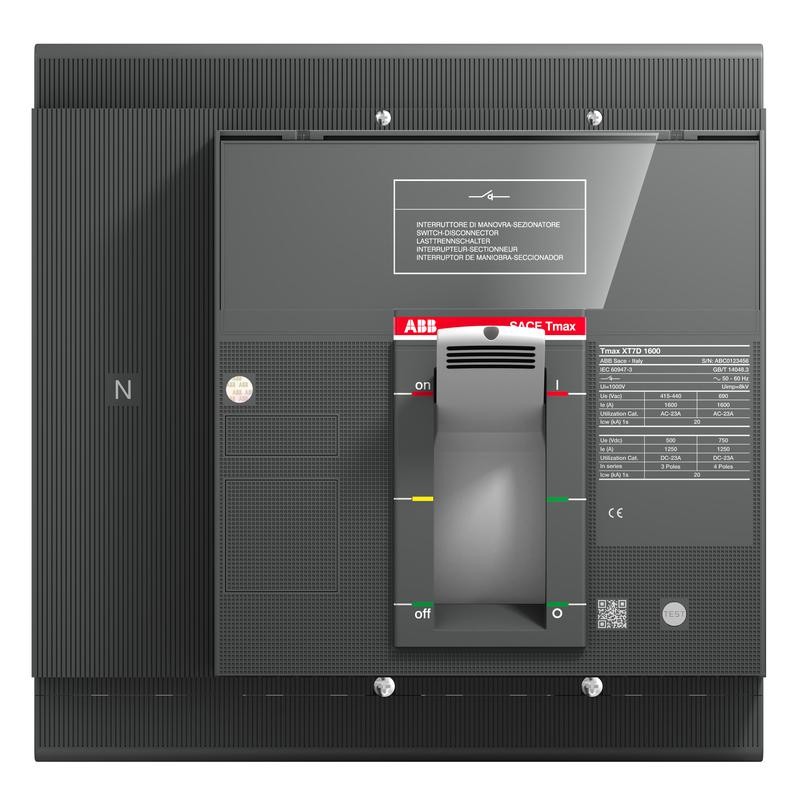

ABB 1SDA101909R1 1SDA101909R1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SDA101909R1 ABB XT7D 1000 4p F F

Reference: 1SDA101909R1

Manufacturer: ABB

Description:

XT7D 1000 4p F F

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Molded case "Isomax-Tmax"

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 2.094,39 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2357
Environmental Product Declaration - EPD9AKK108468A1895
9AKK108468A4404
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 64.1 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP5f787fc5-6666-49f6-8f15-b7c5a4d4c75a Italy
Simplified SCIP78be03fa-a670-4c81-8c98-916739b99b7c Belgium
ce9279f0-7498-49a5-a0c9-cf64296a9f71 Hungary
3e8fdab2-1e72-493b-8fbf-52f5e427e52b Spain
029e0660-c0b4-4d70-8b39-1f61f3784b4e Germany
66c88475-6633-40c6-92b9-cb9704864ba5 France
9b144f9e-ceb8-4e20-853b-e30938c081ae Czech Republic
94cf16e0-aba0-4a38-9b8b-fe3173c518b9 Germany
94da2b0e-665b-401d-98bd-fe19a6489d50 Sweden
16bf77f6-5a88-4192-9c73-56b72867b05f Denmark
74273e33-80a6-4fda-9feb-f31aa74e7c56 Germany
c32fe5f0-eeba-4fd1-acf2-61b7c500a316 Croatia
5d1f7ddf-09fe-4e5c-9221-353ec9383156 Germany
6a37cff5-87d1-4e3a-8fc3-bfa3bc690083 Portugal
5ec91c1b-1ebf-49c5-8b0b-2b24e02e0804 France
3337aa12-f1d9-41db-8e33-61f58f390a92 Greece
80753fc6-d6d8-4683-8714-3bf521aefc5b Hungary
bca0ba5b-0d14-4fcd-b0de-3a87dae7efb4 Poland
a7bc8b4d-e2f1-4f83-ab22-2293f57fdb60 Finland
b74f9660-7f43-4ab8-a0b4-4ce3c1ebe475 Estonia
d63b7cc2-b93d-4657-83d6-92090ab5ba20 Belgium
8303b5c7-2a48-4115-95b5-f4cf12a473f8 Bulgaria
dfedae8d-c6fa-4f0f-9cf8-66cad1a28902 Poland
d5c602e8-d2bc-4361-9a38-6464dc77a124 Norway
911864ca-54ad-4667-8ace-2500fc723e5e Sweden
e041bd6e-b947-46b5-adef-a6669fb28895 Netherlands
deb41e4c-a631-4a2a-9283-d59dc613bf63 Poland
f9189e26-c2c3-4203-816c-64ff1ce2bf6f Germany
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT7DE410DDFF000XXX
E-Number (Norway)4380957
EAN8056221019538
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width280 mm
Product Net Height268 mm
Product Net Depth / Length166 mm
Product Net Weight12.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width360 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight14 kg
Package Level 1 EAN8056221019538
Additional Information
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeSwitch Disconnector
VersionF
CAD Dimensional Drawing1SDH002065A1390
1SDH002065A1338
Technical
Electrical Durability3000 cycle
60 cycles per hour
Mechanical Durability10000 cycle
60 cycles per hour
Number of Poles4P
Order Multiple1 piece
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
750 V DC
Rated Short-time Withstand Current Low Voltage (Icw)20 kA
Rated Uninterrupted Current (Iu)1000 A
StandardsIEC60947-2
Sub-typeXT7
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107046A9648
Mechanical Drawings1SDH002013A1101
Wiring Diagram1SDM000002A1001
Instructions and Manuals1SDH002013A1001
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371403

ETIM for 1SDA101909R1 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueNo
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value0
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value690 V
Feature nameRated operating voltage (EF001435)
Feature value0 V
Feature nameRated permanent current Iu (EF001389)
Feature value1000 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value1000 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value20 kA
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueYes
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueYes
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device fixed built-in technique
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameColour control element (EF007167)
Feature valueWhite
Feature nameType of control element (EF006976)
Feature valueToggle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP20
Feature nameDegree of protection (NEMA) (EF011959)
Feature value4
