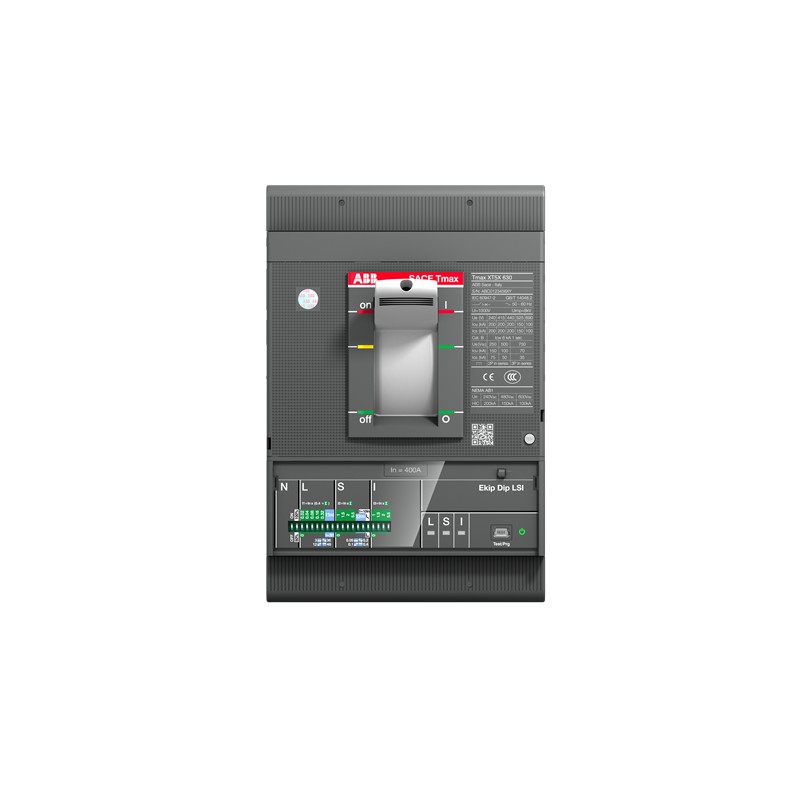

1SDA100367R1 ABB XT5N 400 Ekip M Dip I In 320A 3p F F

Reference: 1SDA100367R1

Manufacturer: ABB

Description:

XT5N 400 Ekip M Dip I In=320A 3p F F

Categories:

Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
ABB > Molded case "Isomax-Tmax"

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
PDF
Reviews

Guarantee, repair and return.

Unit Price: 1.220,80 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

ABB EcoSolutions
ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions	9AKK108468A2354
Environmental Product Declaration - EPD	9AKK108468A1899
	9AKK108468A9748
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 59.6 %
Material Compliance
REACH Declaration	9AKK108466A1425
RoHS Declaration	9AKK108466A1424
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
Toxic Substances Control Act - TSCA	9AKK108467A8326
SCIP	ee9ea6be-c732-434d-8924-29e04da72d77 China
Simplified SCIP	19a3712a-51ff-456b-ac29-5039a060ae74 Poland
	6a31cdfa-230b-4c62-9d71-e86e0cc1b820 Bulgaria
	f7fa90f9-0d4b-4ddc-8edb-c5d684346684 Sweden
	4ce3242a-9935-4ff3-93d2-c0aaa81b970a Portugal
	de5cd6fa-4e3b-4e03-94a9-1af57429786e France
	a11da0ef-40bd-4921-a450-475edac7cd6f Germany
	69870de2-3dd4-4ffb-9f5c-2dc5080b0cda Denmark
	0853f1a6-eaab-406a-99cf-fa502d57cf60 Germany
	bbf1eef4-1489-4bd4-9fac-5a2357e17b1d Hungary
	ee5be33c-56e2-4151-8d14-a6a55b004dc8 Greece
	6a16449e-e56f-4dd5-81f5-ccdead55ef34 Belgium
	121c3c15-35de-4e1d-a3e2-2f72af82daf2 Estonia
	c24d4679-d934-4ad4-b994-7470707d19ab Germany
	0203ec75-0354-4b95-af1c-52eafd87818e Hungary
	dc611edf-0963-4cc8-b594-ebf010d73dba Spain
	4d968d4a-5c86-4f09-b47d-717e7f54dbd0 Poland
	1ca9c632-31ab-472d-a650-b36ac7cb0b37 Netherlands
	36049e7d-71c3-46b5-bfa2-7a648d620b1b Germany
	92a37f07-1a18-43db-812e-7bde68897cc7 France
	009f03b7-b095-436b-b573-a3b9cad7360f Germany
	9b65c621-0177-41ff-bbfa-6b919e526ca5 Belgium
	6c8669ba-8444-48f1-8042-710a9875cf08 Poland
	063762df-3dd8-4566-b921-3186af1cc5cb Finland
	42978397-5174-41fd-904e-4ba3070ee274 Norway
	fefd02c7-8628-4ecf-bfdd-b4d4400e6245 Czech Republic
	f38202ba-f973-42e6-b66b-d89c85b8f578 Croatia
	b12ccf30-e9ed-409a-bdae-d259bc8e8ceb Sweden
Environmental
Environmental Information	9AKK108467A6707
Ordering
Order Code US and Canada	XT5NE332AKFF000XXX
E-Number (Norway)	4380258
EAN	8056221004442
Minimum Order Quantity	1 piece
Customs Tariff Number	85362090
Dimensions
Product Net Width	140 mm
Product Net Height	205 mm
Product Net Depth / Length	103.5 mm
Product Net Weight	4.82 kg
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	250 mm
Package Level 1 Height	245 mm
Package Level 1 Depth / Length	285 mm
Package Level 1 Gross Weight	5.308 kg
Package Level 1 EAN	8056221004442
Additional Information
Circuit Breaker Type to be Associated	Motor Protection
Product Main Type	SACE Tmax XT
Product Name	Moulded Case Circuit Breaker
Product Type	Automatic Circuit Breaker
Version	F
CAD Dimensional Drawing	1SDH002065A1115
	1SDH002065A1131
Technical
Current Type	AC
Electrical Durability	7000 cycle
	60 cycles per hour
Mechanical Durability	20000 cycle
	120 cycles per hour
Number of Poles	3P
Order Multiple	1 piece
Power Loss	11.6 W
Rated Current (I_n)	320 A
Rated Impulse Withstand Voltage (U_imp)	8 kV
Rated Insulation Voltage (U_i)	1000 V
Rated Operational Voltage	690 V AC
Rated Service Short-Circuit Breaking Capacity (I_cs)	(220 V AC) 70 kA
	(230 V AC) 70 kA
	(240 V AC) 70 kA
	(380 V AC) 36 kA
	(415 V AC) 36 kA
	(440 V AC) 36 kA
	(500 V AC) 25 kA
	(525 V AC) 25 kA
	(690 V AC) 20 kA
Rated Short-time Withstand Current Low Voltage (I_cw)	5 kA
Rated Ultimate Short-Circuit Breaking Capacity (I_cu)	(220 V AC) 70 kA
	(230 V AC) 70 kA
	(240 V AC) 70 kA
	(380 V AC) 36 kA
	(415 V AC) 36 kA
	(440 V AC) 36 kA
	(500 V AC) 25 kA
	(525 V AC) 25 kA
	(690 V AC) 20 kA
Rated Uninterrupted Current (I_u)	400 A
Release	Ekip M Dip I
Release Type	EL
Short-Circuit Performance Level	N
Standards	IEC60947-2
Sub-type	XT5
Terminal Connection Type	Front
Certificates and Declarations
Data Sheet, Technical Information	1SDC210100D0206
	1SDC210099D0206
Declaration of Conformity - CE	9AKK107680A2824
Mechanical Drawings	1SDH002011A1101
Wiring Diagram	1SDM000005A1001
Instructions and Manuals	1SDH002011A1001
External Classifications and Standards
ETIM 9	EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10	EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code	Q
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
eClass	V11.1 : 27370409

ETIM for 1SDA100367R1 Low-voltage industrial controls and switchgear (EC000228)

Feature nameRated permanent current Iu (EF001389)

Feature value320 A

Feature nameRated voltage (EF003977)

Feature value690 V

Feature nameAdjustment range short-term delayed short-circuit release (EF007129)

Feature value192.0 A

Feature nameAdjustment range undelayed short-circuit release (EF007131)

Feature value320 A

Feature nameIntegrated earth fault protection (EF007296)

Feature valueNo

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueBolt connection

Feature nameDevice construction (EF008240)

Feature valueBuilt-in device fixed built-in technique

Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)

Feature valueNo

Feature nameDIN rail (top hat rail) mounting optional (EF008904)

Feature valueNo

Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)

Feature value0

Feature nameNumber of auxiliary contacts as normally open contact (EF001376)

Feature value0

Feature nameNumber of auxiliary contacts as change-over contact (EF003531)

Feature value0

Feature nameWith switched-off indicator (EF007006)

Feature valueNo

Feature nameWith integrated under voltage release (EF001390)

Feature valueNo

Feature nameNumber of poles (EF001391)

Feature value3

Feature namePosition of connection for main current circuit (EF006671)

Feature valueFront

Feature nameType of control element (EF006976)

Feature valueToggle

Feature nameComplete device with protection unit (EF008906)

Feature valueYes

Feature nameMotor drive integrated (EF006697)

Feature valueNo

Feature nameMotor drive optional (EF007386)

Feature valueYes

Feature nameDegree of protection (IP) (EF005474)

Feature valueIP20
