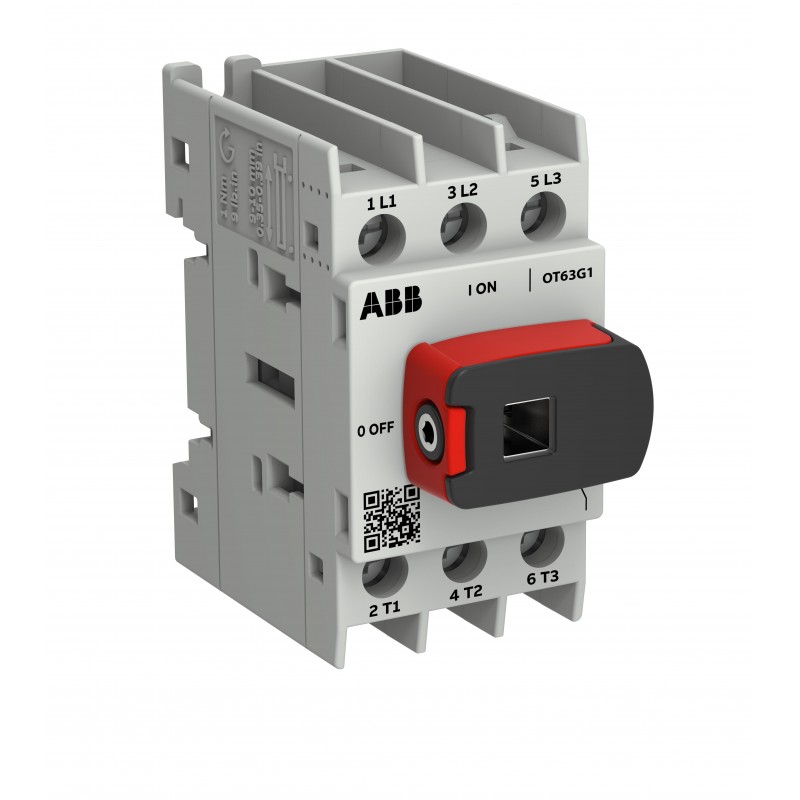

ABB 1SCA163523R1001 1SCA163523R1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA163523R1001 ABB Int. OT Plus Disconnector OT63G1-3BS

Reference: 1SCA163523R1001

Manufacturer: ABB

Description:

Int. OT Plus Disconnector OT63G1-3BS
OT63G1-3BS SWITCH DISCONNECTOR

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 31,28 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC301152M0201
Environmental Product Declaration - EPD1SCC301349D0201
Extended Product LifetimeProduct Durability
Improved Energy Efficiency for CustomersProduct Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 92,5 %
Sustainable Material Content in Packaging (wt. %)FSC 100% Cardboard - 35.9 %
FSC 100% Cardboard - 41.98 %
FSC 100% Cardboard - 22.12 %
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Popular Downloads
Instructions and Manuals1SCC301148M0201
Mechanical DrawingsOT16-63G1_3B_SR.STP
Environmental
Degree of ProtectionFront IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Country or Territory of OriginFinland
Dimensions
Product Net Width35 mm
Product Net Height68 mm
Product Net Depth / Length62 mm
Product Net Weight0.116 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width37 mm
Package Level 1 Depth / Length71 mm
Package Level 1 Height64 mm
Package Level 1 Gross Weight0.136 kg
Package Level 1 EAN6417019931449
Package Level 2 Width91 mm
Package Level 2 Depth / Length263 mm
Package Level 2 Height170 mm
Package Level 2 Gross Weight1.36 kg
Technical
Connecting Capacity Main CircuitFlexible with Ferrule 1/2x Cu 0.75…4 mm²
Solid 1/2x Cu 0.75…6 mm²
Flexible 1x Cu 1.5…16 mm²
Flexible 2x Cu 1.5…6 mm²
Stranded 1x Cu 1.5…16 mm²
Stranded 2x Cu 1.5…6 mm²
Conventional Free-air Thermal Current (Ith)63 A
Conventional Thermal Current (Ithe)63 A
Handle ColorBlack
Handle Length28.5 mm
Handle TypeKnob
Lock TypePadlockable
Maximum Mounted Auxiliary Contacts4 NO, 4 NC
Mechanical DurabilityNr. Operations 100000
Mounting TypeBase/DIN mounting
Number of Poles3P
Operating ModeFront
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 2.4 W
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)acc. to IEC 60947-1 800 V
Rated Operational Current AC-21A (Ie)(415 V) 63 A
(690 V) 40 A
Rated Operational Current AC-22A (Ie)(415 V) 63 A
(690 V) 40 A
Rated Operational Current AC-23A (Ie)(415 V) 40 A
(690 V) 25 A
Rated Operational Power AC-23A (Pe)(415 V) 18.5 kW
(690 V) 22 kW
Rated Operational VoltageMain Circuit 800 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 1.76 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 0.8 kA
for 0.2 s 1.25 kA
Recommended Screw DriverMain Circuit Pozidriv 2
Switches Operating MechanismMechanism on Top of the Switch
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 1 N·m
Wire Stripping LengthMain Circuit 9-10 mm
Main Circuit 0.35-0.39 in
Technical UL/CSA
Maximum Operating Voltage UL/CSA600 V
Ampere Rating50 A
Horsepower Rating UL/CSA(110 ... 120 V AC) Single Phase 2 Hp
(240 V AC) Single Phase 5 Hp
(440 ... 480 V AC) Single Phase 10 Hp
(550 ... 600 V AC) Single Phase 15 Hp
(240 V AC) Three Phase 10 Hp
(440 ... 480 V AC) Three Phase 25 Hp
(550 ... 600 V AC) Three Phase 30 Hp
Wire Size1x 18-6 AWG
2x 16-10 AWG
Tightening Torque UL/CSAUL 1 lbf·in
Certificates and Declarations
Declaration of Conformity - CE1SCC301348D2701
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)36
E-Number (Sweden)3172249

ETIM for 1SCA163523R1001 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value800 V
Feature nameRated operating voltage (EF001435)
Feature value800 V
Feature nameRated permanent current Iu (EF001389)
Feature value63 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value40 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value63 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value0.8 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value18.5 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value18.5 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for floor mounting (EF025108)
Feature valueNo
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameType of control element (EF006976)
Feature valueOther
Feature nameInterlockable (EF006281)
Feature valueNo
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP20
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameWidth (EF000008)
Feature value35 mm
Feature nameHeight (EF000040)
Feature value68 mm
Feature nameDepth (EF000049)
Feature value62 mm

DATASHEET - PDF
