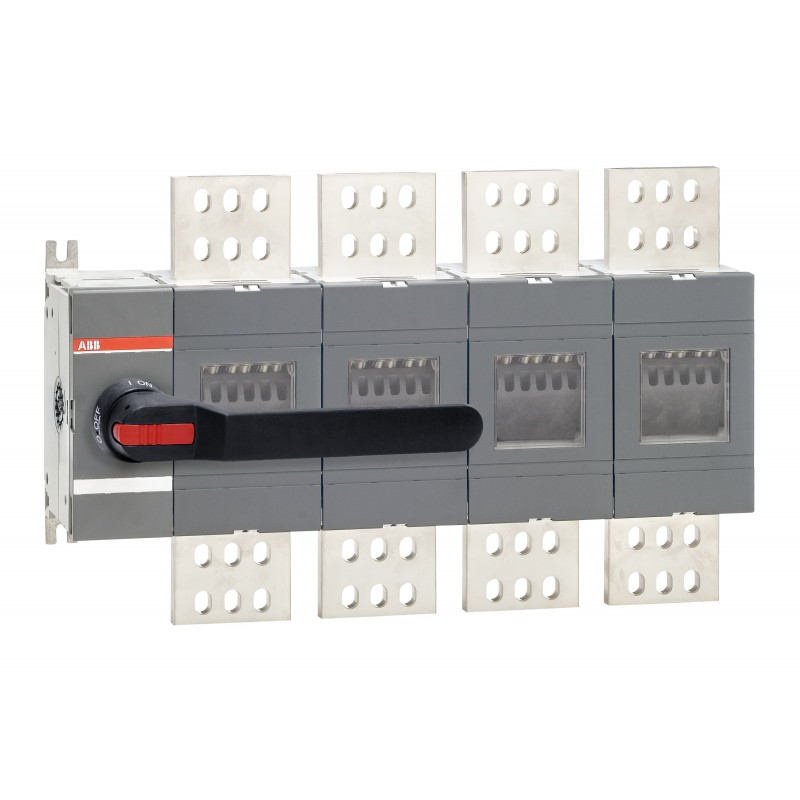

ABB 1SCA160397R1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA160397R1001 ABB Int. Disconnector DC-20 OT2500E04P-135

Code: 1SCA160397R1001

Manufacturer: ABB

Description:

Int. Disconnector DC-20 OT2500E04P-135
OT2500E04P-135 Disconnector

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 3.579,41 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301121M0201
Environmental Information1SCC301268D0201
Environmental Product Declaration - EPD1SCC301304D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC301240D0201
RoHS Declaration1SCC301239D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301023C0201
Instructions and Manuals1SCC301104M0201
Environmental Product Declaration - EPD1SCC301304D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301268D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85353010
Country or Territory of OriginFinland
China
Dimensions
Product Frame SizeOT2500-135
Product Net Width598.5 mm
23.6 in
Product Net Height376.5 mm
14.8 in
Product Net Depth / Length145.5 mm
5.7 in
Product Net Weight22.3 kg
49.2 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width580 mm
22.8 in
Package Level 1 Depth / Length780 mm
30.7 in
Package Level 1 Height500 mm
19.7 in
Package Level 1 Gross Weight35.2 kg
77.6 lb
Package Level 1 EAN6417019901831
Technical
Connection ConfigurationConnection type 2 or 3
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 2500 A
Θ = 40 °C 4000 A
Conventional Thermal Current (Ithe)Fully Enclosed 2500 A
Fully Enclosed 4000 A
Degree of ProtectionFront IP00
Handle ColorBlack
Handle Length274 mm
10.8 in
Handle TypeHandle and shaft included
Mechanical Durability600 cycle
Mounting TypeBase mounting
Number of Circuits1
2
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 85 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1500 V
Rated Operational Current AC-20B(1000 V AC) 2500 A
(1000 V AC) 4000 A
Rated Operational Current DC-20B(1500 V DC) 2500 A
(1500 V DC) 4000 A
Rated Short-time Withstand Current Low Voltage (Icw)for 0.3 s 80 kA
for 0.3 s 100 kA
Rated Voltage (Ur)1500 V
Shaft Diameter12 mm
0.47 in
Shaft Length280 mm
11.0 in
Special FunctionsNo
StandardsIEC 60947-1, -3
Switches Operating MechanismMechanism at the End of the Switch
04 (Left Side)
Terminal TypeLug terminals
Terminal Width100 mm
3.94 in
UtilizationEnergy Storage System (ESS)
Utilization CategoryConnecting and disconnecting under no-load conditions - occasional actuation (DC-20B)
Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B)
Certificates and Declarations
A2L Certificate – IEC1SCC301338D0201
CCC Certificate2023980302000100
Declaration of Conformity - CE1SCC301229D2701
DNV GL Certificate1SCC301184D0204
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC004963 - Switch disconnector (DC)
eClassV11.1 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)

ETIM for 1SCA160397R1001 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device fixed built-in technique
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP00
