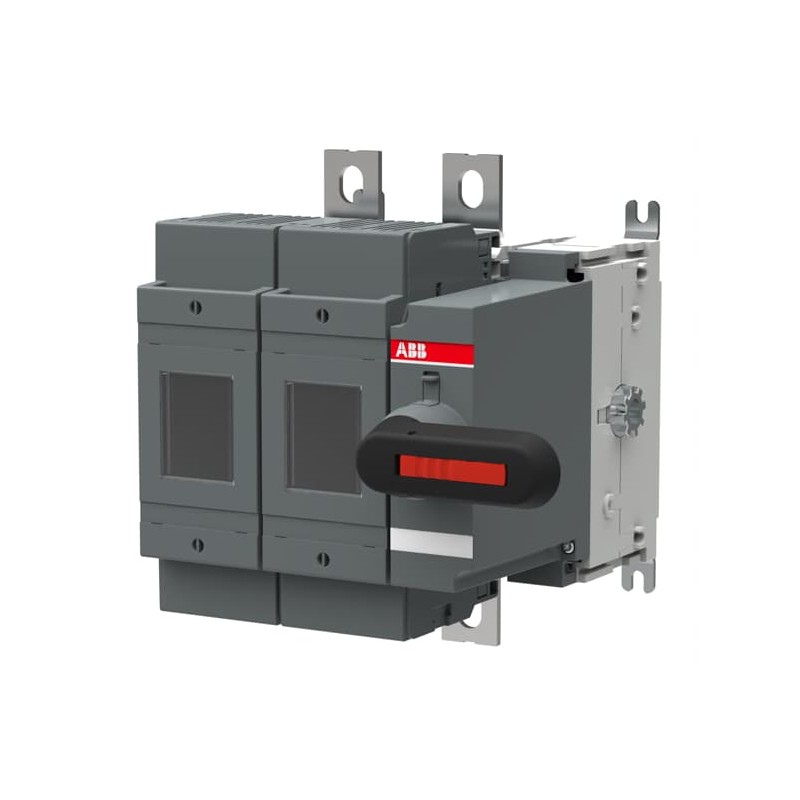

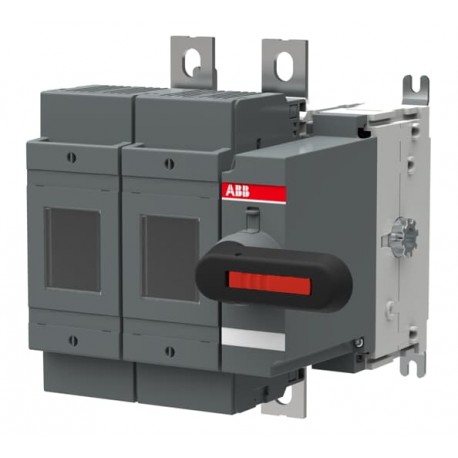

1SCA144497R1001 ABB OS250D20K fuse switch

Reference: 1SCA144497R1001

Manufacturer: ABB

Description:

OS250D20K fuse switch
OS250D20K SWITCH FUSE

Categories:

  • Low-voltage industrial components > Fuse switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 352,65 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC311049M0201
Environmental Product Declaration - EPD1SCC311197D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC311013C0201
Instructions and Manuals1SCC311012M0219
Environmental Product Declaration - EPD1SCC311197D0201
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width310 mm
Product Net Height270 mm
Product Net Depth / Length200 mm
Product Net Weight2.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width270 mm
Package Level 1 Depth / Length310 mm
Package Level 1 Height200 mm
Package Level 1 Gross Weight2.79 kg
Package Level 1 EAN6417019728223
Technical
Fuse SizeNH0
NH1
Fuse SystemDIN
Mounting TypeBase mounting
Number of Poles2P
Operating ModeFront
Power Lossat Rated Current 17 W
Rated Operational VoltageMain Circuit 690 V AC
StandardsIEC 60947-3
Terminal TypeLug terminals
Tightening Torque30 … 44 N·m
Technical UL/CSA
Tightening Torque30 … 44 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC311209D0201
ATEX CertificateNo certification needed
Declaration of Conformity - CE1SCC311095D2704
DNV GL Certificate1SCC311123D0203
UL CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC001040 - Fuse switch disconnector
ETIM 10EC001040 - Fuse switch disconnector
UNSPSC39122233
IDEA Granular Category Code (IGCC)5291 >> Fuse switch disconnector
eClassV11.1 : 27371392
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA144497R1001 Low-voltage industrial controls and switchgear (EC001040)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated permanent current Iu (EF001389)
Feature value250 A
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value250 kW
Feature nameConditioned rated short-circuit current Iq (EF001444)
Feature value100 kA
Feature nameRated short-time withstand current lcw (EF007050)
Feature value8 kA
Feature nameSuitable for fuses (EF006692)
Feature valueNH0
Feature nameNumber of poles (EF001391)
Feature value2
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameCable entry (EF000537)
Feature valueOther
Feature nameEquipped with connectors (EF011696)
Feature valueYes
Feature nameSuitable for busbar mounting (EF007259)
Feature valueYes
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature namePosition control element (EF009410)
Feature valueRight
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP20
