ABBManual Switches1SCA105074R1001 ABB Disconnector switch OT30FT3

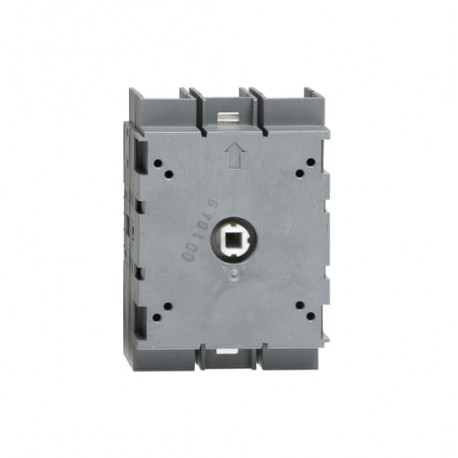

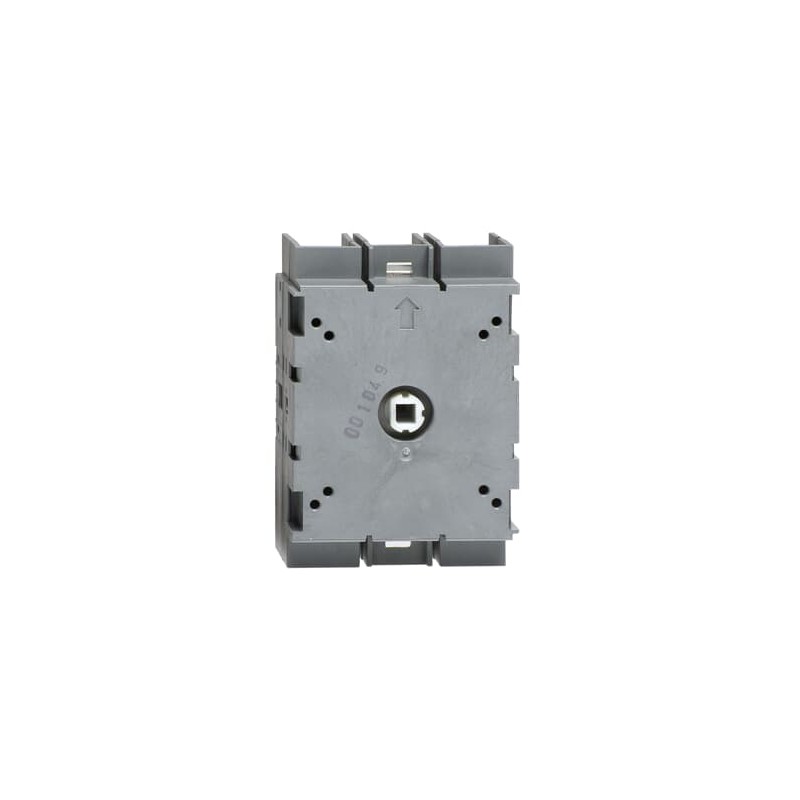

ABB 1SCA105074R1001 1SCA105074R1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA105074R1001 ABB Disconnector switch OT30FT3

Reference: 1SCA105074R1001

Manufacturer: ABB

Description:

Disconnector switch OT30FT3
OT30FT3 SWITCH-DISCONNECTOR

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 76,21 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ABB EcoSolutions
Environmental Information1SCC301183D0201
Environmental Product Declaration - EPD1SCC301280D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301057M0007
Mechanical Drawings1SCC301470F0001
1SCC301469F0001
OT125FT3.igs
Environmental Product Declaration - EPD1SCC301280D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC301183D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width70 mm
Product Net Height100 mm
Product Net Depth / Length66.5 mm
Product Net Weight0.42 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width102 mm
Package Level 1 Depth / Length71 mm
Package Level 1 Height76 mm
Package Level 1 Gross Weight0.44 kg
Package Level 1 EAN6417019392042
Technical
Cable Cross-SectionCu 2.5 ... 25 mm²
Connecting Capacity Main CircuitFlexible 1x Cu 2.5…25 mm²
Stranded 1x Cu 2.5…25 mm²
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Handle TypeHandle and shaft not included
Mechanical Durability20000
Mounting TypeDoor mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 0.7 W
Rated Conditional Short-Circuit Current (Inc)(125 A fuse, 415 V) 50 kA
(125 A fuse, 690 V) 10 kA
(63 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 40 A
(500 V) 40 A
(690 V) 40 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 40 A
(500 V) 40 A
(690 V) 40 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 40 A
(500 V) 40 A
(690 V) 40 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 18.5 kW
(500 V) 22 kW
(690 V) 37 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 3.6 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 2.5 kA
Recommended Screw DriverMain Circuit Hexagon 4
Special FunctionsNo
StandardsIEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating MechanismMechanism on Top of the Switch
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 6.2 N·m
Wire Stripping LengthMain Circuit 17-18 mm
Technical UL/CSA
Maximum Operating Voltage UL/CSA600 V
Ampere Rating30 A
Horsepower Rating UL/CSA(110 ... 120 V AC) Single Phase 2 Hp
(240 V AC) Single Phase 5 Hp
(220 ... 240 V AC) Three Phase 10 Hp
(440 ... 480 V AC) Three Phase 20 Hp
(550 ... 600 V AC) Three Phase 30 Hp
Wire Stripping LengthMain Circuit 17-18 mm
Recommended Screw DriverMain Circuit Hexagon 4
Tightening Torqueacc. IEC 60947-1 6.2 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC301335D0201
ATEX CertificateNo certification needed
Declaration of Conformity - CE1SCC301010D0201
UL CertificatecULus certificate OT30-125
VDE CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Sweden)3171943

ETIM for 1SCA105074R1001 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value750 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value40 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value40 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value2.5 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value18.5 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value18.5 kW
Feature nameConditioned rated short-circuit current Iq (EF001444)
Feature value50 kA
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueNo
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP20
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
