ABBManual Switches1SCA022775R0810 ABB SWITCH OT250E04WCP

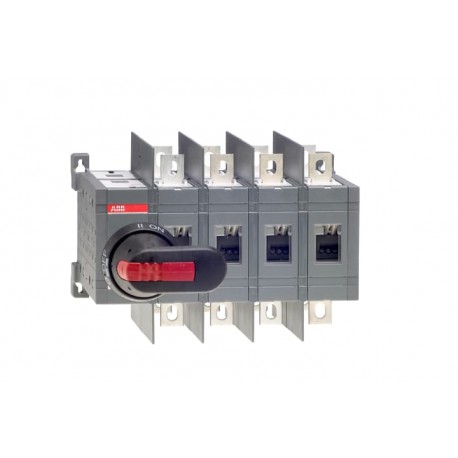

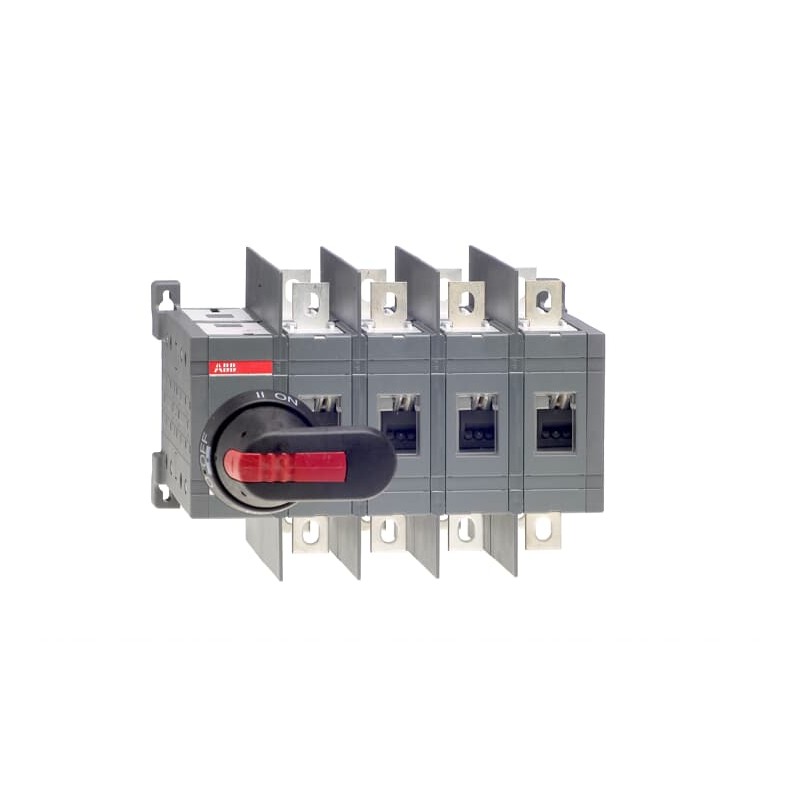

ABB 1SCA022775R0810 1SCA022775R0810 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA022775R0810 ABB SWITCH OT250E04WCP

Reference: 1SCA022775R0810

Manufacturer: ABB

Description:

SWITCH OT250E04WCP
OT250E04WCP CHANGE-OVER SWITCH

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 549,09 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ABB EcoSolutions
End Of Life Disassembling Instructions1SCC303050M0201
Environmental Information1SCC303050D0201
Environmental Product Declaration - EPD1SCC303082D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPa816b634-ba9e-4795-b989-e2069b39f667 Finland
Simplified SCIPf7cb74a7-2903-4473-ac5c-5621100958ce Germany
1a497fd7-5b31-4395-a443-dc6bc6fdf4c4 Sweden
57750975-3c76-475b-bd41-2453d24680c1 Poland
a4af1d3c-f1f8-4a14-a51e-19ab3ec664f5 Italy
b038cc77-bfee-4882-8018-f70f3c0359e7 Germany
d1dbf880-279f-4259-b687-ca16ee182e95 Germany
b1e8c9e1-c6a2-4050-87c5-19f8074c9e1b France
06cbbae0-3f2a-4d89-a353-29ef344b7661 Sweden
14cde843-4263-48e7-8f06-4e5c8e36d8ac Hungary
cc21c06a-bee0-4b4f-b4ec-c624c70eb3ca Greece
2d1eca4b-005f-4616-b8ee-35f52bc744c1 Portugal
6cff9eac-97a9-4202-9015-b731820e8f27 Bulgaria
aae0031b-9047-4cd3-8ec9-2300f81fb6b6 Norway
a6d0c030-c793-4e62-bfa2-fba47d733c3d Poland
fca756df-f68e-4d2d-a336-7ebb509e4f71 Belgium
febacfc5-6c7c-490d-900f-e84c5dd77ddd Estonia
d30936dd-e540-4d8d-85e4-609d8a7b18e6 Belgium
ddf525fe-f609-44f4-b93b-4e1b35ffc8e1 France
fb9ca051-af14-456c-a7da-56268fe1c667 Poland
51b4f785-6b6e-45fd-be3c-01eeae674223 Denmark
bf47218c-660d-4598-80a6-e756d453f489 Germany
045a97dd-0363-4be8-9e39-5f4904a60201 Germany
90815909-e915-47f4-b734-42a0ad08d003 Czech Republic
35dc0ba5-0cc2-44b4-b204-16f057353cc4 Croatia
c5b25076-1efc-42af-b1fe-fffc857fc633 Netherlands
b98607b9-a39e-40e9-ad86-8d94ba0bc49c Hungary
3c56bf5e-0405-48b9-910b-a2509300023b Spain
Popular Downloads
Data Sheet, Technical Information1SCC303003C0201
Instructions and Manuals1SCC303008M0208
Environmental Product Declaration - EPD1SCC303082D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC303050D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width237 mm
9.33 in
Product Net Height170 mm
6.69 in
Product Net Depth / Length160 mm
6.3 in
Product Net Weight4.18 kg
9.22 lb
Container Information
Package Level 1 Unitsbox 1 box
Package Level 1 Width186 mm
7.32 in
Package Level 1 Depth / Length300 mm
11.81 in
Package Level 1 Height185 mm
7.28 in
Package Level 1 Gross Weight4.45 kg
9.81 lb
Package Level 1 EAN6417019252261
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 250 A
Conventional Thermal Current (Ithe)Fully Enclosed 250 A
Degree of ProtectionFront IP20
Distance Between PhasesWide phase distance
Fourth Pole PositionRight Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle ColorBlack
Handle TypeHandle and shaft included
Mounting TypeBase mounting
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-31B (Ie)(380 ... 415 V) 250 A
Rated Operational Current AC-33B (Ie)(380 ... 415 V) 250 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 140 kW
(500 V) 170 kW
(690 V) 250 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kiloampere rms
Switches Operating MechanismMechanism at the End of the Switch
04 (Left Side)
Terminal TypeScrew Terminals
Terminal Width20 mm
Tightening Torqueacc. IEC 60947-1 15 ... 22 N·m
Transition TypeOpen
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 15 ... 22 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC303001D2704
DNV Certificate1SCC303138D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3641542

ETIM for 1SCA022775R0810 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value1000 V
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value250 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value250 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value8 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value140 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value140 kW
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device plug-in technique
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueYes
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueOther
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP20
Feature nameDegree of protection (NEMA) (EF011959)
Feature value1
