ABBManual Switches1SCA022771R6210 ABB OT200U04CP switch switch

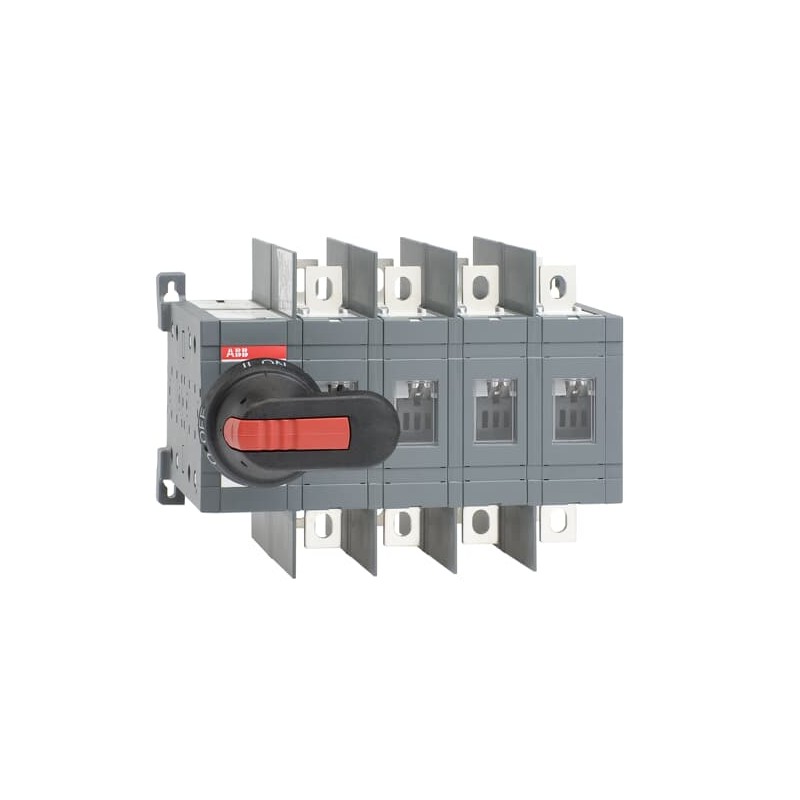

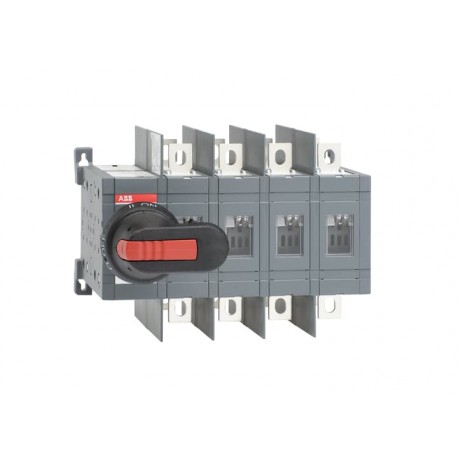

ABB 1SCA022771R6210 1SCA022771R6210 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA022771R6210 ABB OT200U04CP switch switch

Reference: 1SCA022771R6210

Manufacturer: ABB

Description:

OT200U04CP switch switch
OT200U04CP CHANGE-OVER SWITCH

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 549,51 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Extended Product Type:
    OT200U04CP
  • Product ID:
    1SCA022771R6210
  • EAN:
    6417019251806
  • Catalog Description:
    OT200U04CP CHANGE-OVER SWITCH
  • Long Description:
    The change-over switches include a black handle IP65
    see the table below, Nema type 1, 3R, 12, a shaft and a bolt set for the cable connection and a set of phase separators.

Circular Value

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85365080
  • Country of Origin:
    Finland (FI)

Popular Downloads

Dimensions

  • Product Net Width:
    237mm
  • Product Net Height:
    150mm
  • Product Net Depth / Length:
    160mm
  • Product Net Weight:
    4.18kg
    9.22 lb

Technical

  • Rated Operational Current AC-21A (Ie):
    (380 ... 415 V) 250 A
    (500 V) 250 A
    (690 V) 250 A
  • Rated Operational Current AC-22A (Ie):
    (380 ... 415 V) 250 A
    (500 V) 250 A
    (690 V) 250 A
  • Rated Operational Current AC-23A (Ie):
    (380 ... 415 V) 250 A
    (500 V) 250 A
    (690 V) 250 A
  • Rated Operational Current AC-31B (Ie):
    (380 ... 415 V) 250 A
  • Rated Operational Current AC-33B (Ie):
    (380 ... 415 V) 250 A
  • Conventional Free-air Thermal Current (Ith):
    q = 40 °C 250 A
  • Rated Impulse Withstand Voltage (Uimp):
    12 kV
  • Rated Insulation Voltage (Ui):
    1000 V
  • Rated Operational Voltage:
    1000 V
  • Rated Short-time Withstand Current Low Voltage (Icw):
    for 1 s 8 kiloampere rms
  • Pollution Degree:
    3
  • Handle Color:
    Black
  • Handle Type:
    Handle and shaft included
  • Fourth Pole Position:
    Right Side
  • Fourth Pole Type:
    Switched - Simultaneous Function
  • Switches Operating Mechanism:
    Mechanism at the End of the Switch
    04 (Left Side)
  • Distance Between Phases:
    Standard
  • Position of Line Terminals:
    Top In - Bottom Out, Bottom In - Top Out
  • Operating Mode:
    Front operated
  • Standards:
    UL 98 / IEC60947-3
  • Mounting Type:
    Base mounting
  • Number of Poles:
    4
  • Degree of Protection:
    Front IP20
  • Mechanical Durability:
    8000 cycle
  • Transition Type:
    Open

Technical UL/CSA

  • Ampere Rating:
    200 A
  • Horsepower Rating UL/CSA:
    (acc. to UL 240 V) 75 Hp
    (acc. to UL 480 V) 150 Hp
    (acc. to UL 600 V) 200 Hp

Environmental

  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Environmental Information:
    1SCC303050D0201

Certificates and Declarations (Document Number)

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    186 mm
    7.32 in
  • Package Level 1 Depth / Length:
    300 mm
    11.81 in
  • Package Level 1 Height:
    185 mm
    7.28 in
  • Package Level 1 Gross Weight:
    4.45 kg
    9.81 lb
  • Package Level 1 EAN:
    6417019251806

Classifications

  • Object Classification Code:
    Q
  • ETIM 5:
    EC000216 - Switch disconnector
  • ETIM 6:
    EC000216 - Switch disconnector
  • ETIM 7:
    EC000216 - Switch disconnector
  • ETIM 8:
    EC000216 - Switch disconnector
  • UNSPSC:
    39122233
  • eClass:
    V11.1 : 27371403
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA022771R6210 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value1000 V
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value200 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value200 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value8 kA
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device plug-in technique
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueYes
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueOther
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP20
Feature nameDegree of protection (NEMA) (EF011959)
Feature value1

DATASHEET - PDF
