ABBManual Switches1SCA022744R3300 ABB Disconnector switch OT200E22WP

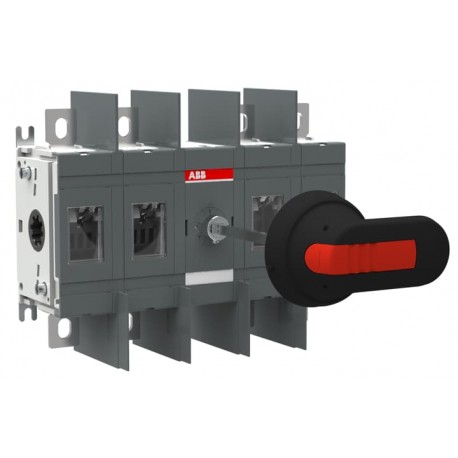

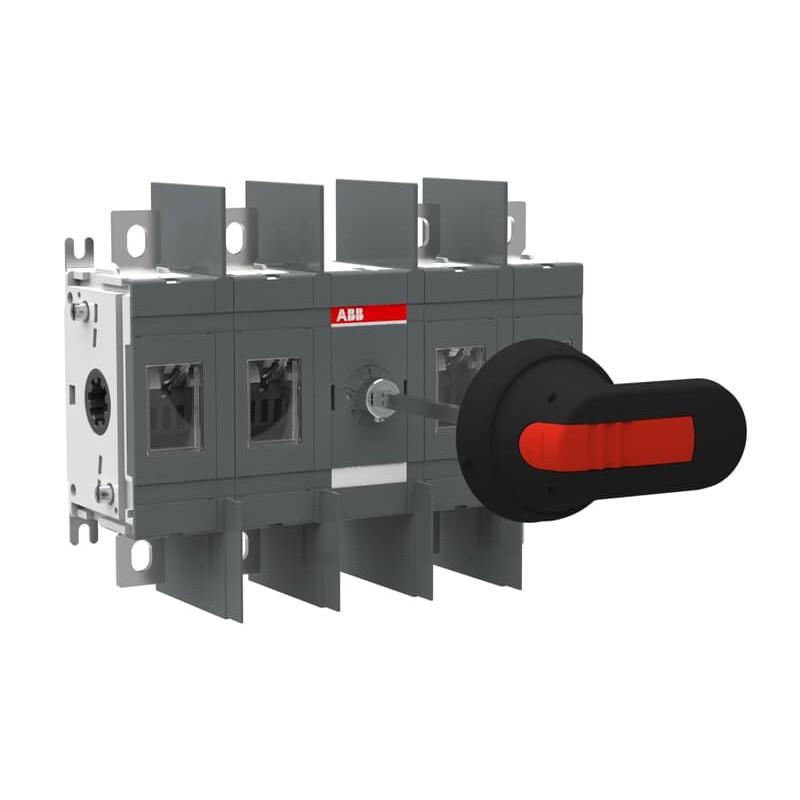

ABB 1SCA022744R3300 1SCA022744R3300 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA022744R3300 ABB Disconnector switch OT200E22WP

Reference: 1SCA022744R3300

Manufacturer: ABB

Description:

Disconnector switch OT200E22WP
OT200E22WP SWITCH-DISCONNECTOR

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 174,09 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301117M0201
Environmental Information1SCC301265D0201
Environmental Product Declaration - EPD1SCC301282D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP3730119c-4d9b-4114-a6ed-d984e2a688c3 Finland
Simplified SCIP8898763a-ee0c-440c-b871-efb3b0a1e2d0 Germany
d58b0a5e-1c81-4e45-aa27-06306b87b64e Portugal
8a4949f1-f170-4966-9494-9f44ebd87513 Poland
0e79b20b-4d3f-4c68-a267-5408a0a7b4aa Croatia
933a9138-025a-4a86-a1ef-34d698e19333 Germany
7be3265b-fe00-487c-9453-5960b7c079b8 Belgium
c5fdaef4-b50d-4388-9628-9c907e1ef65f Denmark
5ed668b7-9a61-43f3-8cf8-6faa40939e25 Germany
19f0a1e4-54c0-449a-876d-19f80b9ac85a Sweden
fae1f70c-ce09-4f3b-83be-065db6269153 Bulgaria
2f289856-daa5-4187-9f5c-6773bd6c068f Hungary
d21e0cb5-040a-4f9d-9183-fcf7a2245c87 Germany
23c201d8-e73f-4e9a-b7bd-bd25054ccb4a France
6b52e89e-1ff1-4216-8311-4910f608014f Italy
53e7b861-47e5-4f0b-ae73-8ae722668507 France
932e74b6-0fdd-4b6a-a3f4-8819f06ffd0d Hungary
2502610e-959d-475c-a8c7-57447ce2e153 Estonia
bd6c7858-a381-4494-a4bd-681842feb1d3 Netherlands
f0854ee9-f59f-4db7-9785-efc1e77e9e43 Sweden
024237bb-d75f-4b72-af2d-669bb146bbce Germany
aa70cccb-7d66-4115-8b0d-934e7b575611 Spain
75686dac-3894-4f8d-b63b-c1dac6ad8298 Belgium
675a8151-663f-45a3-9cf8-588bbdf6d0e8 Norway
40463db5-b928-4ed3-af0b-2a78ed525e46 Poland
892d6fe7-e3df-454e-b56c-5b49ed1cb65a Greece
0b8de3d5-0b5c-457c-830d-f2852d4cb934 Czech Republic
f12ac7de-bec3-4a88-ba90-7fca5b127f69 Poland
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301031M0220
Mechanical Drawings1SCC301296F0001
1SCC301295F0001
OT200-250E22W.stp
OT200-250E22W.igs
Environmental Product Declaration - EPD1SCC301282D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301265D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width217.5 mm
Product Net Height170 mm
Product Net Depth / Length82.5 mm
Product Net Weight2.3 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width190 mm
7.5 in
Package Level 1 Depth / Length290 mm
11.4 in
Package Level 1 Height110 mm
4.3 in
Package Level 1 Gross Weight2.4 kg
5.3 lb
Package Level 1 EAN6417019241395
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)Fully Enclosed 200 A
Degree of ProtectionFront IP00
Distance Between PhasesWide phase distance
Fourth Pole PositionRight Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle ColorBlack
Handle TypeHandle and shaft included
Mechanical Durability20000
Mounting TypeBase mounting
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 4.0 W
Rated Conditional Short-Circuit Current (Inc)(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 60 kW
(400 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 200 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Special FunctionsWide phase distance
StandardsIEC 60947-3
Switches Operating MechanismMechanism Between the Poles
22 (Between the Poles)
Terminal TypeLug terminals
Terminal Width20 mm
Tightening Torqueacc. IEC 60947-1 15 … 22 N·m
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 15 … 22 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC301337D0201
ATEX CertificateNo certification needed
BV Certificate1SCC301103D0201
Declaration of Conformity - CE1SCC301131D2705
DNV GL Certificate1SCC301174D0204
GL Certificate1SCC301139D0201
LR Certificate1SCC301144D0201
UL CertificateNo certification needed
VDE CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122221
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3661324
E-Number (Norway)4337883

ETIM for 1SCA022744R3300 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value1000 V
Feature nameRated permanent current Iu (EF001389)
Feature value200 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value200 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value200 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value8 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value110 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value110 kW
Feature nameConditioned rated short-circuit current Iq (EF001444)
Feature value100 kA
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueNo
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP00
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
