ABBContactors and overload relays1SBN070157T1000 ABB COIL SPRING

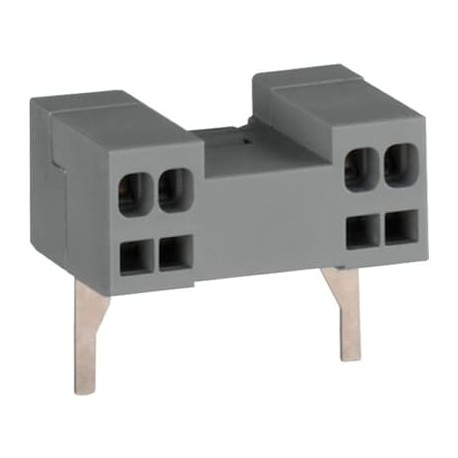

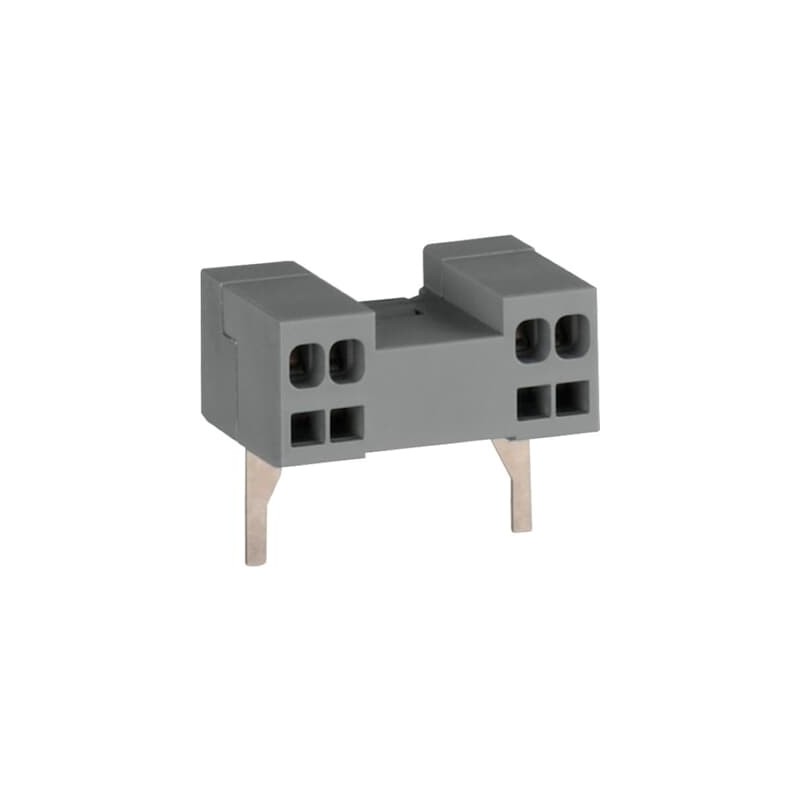

ABB 1SBN070157T1000 1SBN070157T1000 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SBN070157T1000 ABB COIL SPRING

Reference: 1SBN070157T1000

Manufacturer: ABB

Description:

COIL SPRING
LDC4S Additional Coil Terminal Block

Categories:

  • ABB > Contactors and overload relays

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

  • Extended Product Type:
    LDC4S
  • Product ID:
    1SBN070157T1000
  • EAN:
    3471523130685
  • Catalog Description:
    LDC4S Additional Coil Terminal Block
  • Long Description:
    Additional coil terminal blocks for a bottom access to the coil terminals of contactors or contactor relays.

Ordering

  • EAN:
    3471523130685
  • Minimum Order Quantity:
    10 piece
  • Customs Tariff Number:
    85369010

Dimensions

  • Product Net Width:
    35mm
  • Product Net Height:
    24mm
  • Product Net Depth / Length:
    22mm
  • Product Net Weight:
    0.01kg

Container Information

  • Package Level 1 Units:
    box 10 piece
  • Package Level 1 Width:
    85 mm
  • Package Level 1 Height:
    60 mm
  • Package Level 1 Depth / Length:
    110 mm
  • Package Level 1 Gross Weight:
    0.1 kg
  • Package Level 1 EAN:
    3471523130685

Additional Information

  • Connecting Capacity Control Circuit:
    Flexible with Ferrule 1/2x 0.75 ... 2.5 m²
    Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 m²
    Rigid 1/2x 1 ... 2.5 m²
  • Degree of Protection:
    acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
  • Medium Description:
    LDC4S Additional Coil Terminal Block for a top and/or bottom access to the coil terminals of contactors or contactor relays. The letter S means that the auxiliary contact block is equipped with IP20 spring type connecting terminals.
  • Order Multiple:
    10 piece
  • Product Main Type:
    Accessories for Block Contactors
  • Product Name:
    Additional Coil Terminal Block
  • Rated Insulation Voltage (Ui):
    acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
  • Suitable For:
    AF09
    AF12
    AF16
    AF26
    AF30
    AF38
    AF40
    AF52
    AF65
    AF80
    AF96
    NF
  • Terminal Type:
    Spring Terminals
  • Wire Stripping Length:
    Control Circuit 10 mm

Certificates and Declarations (Document Number)

Classifications

  • ETIM 4:
    EC002498 - Accessories for low-voltage switch technology
  • ETIM 5:
    EC002498 - Accessories for low-voltage switch technology
  • ETIM 6:
    EC002498 - Accessories for low-voltage switch technology
  • ETIM 7:
    EC002498 - Accessories for low-voltage switch technology
  • UNSPSC:
    39120000
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
