V680S-HMD64-EIP
V68S0030F
V680SHMD64EIP
OMRON
1
OMRON sta effettuando un investimento significativo nel proprio centro di distribuzione a Den Bosch, nei Paesi Bassi, per garantire maggiore flessibilità e affidabilità nelle consegne. Il passaggio alle nuove strutture inizierà la settimana del 10 giugno 2024. Da quella data in poi, le operazioni di magazzino verranno temporaneamente sospese per una settimana per facilitare il trasloco. Prevedono un periodo di accelerazione di quattro settimane a partire da lunedì 17 giugno 2024, durante il quale i tempi di consegna saranno più lunghi del solito.

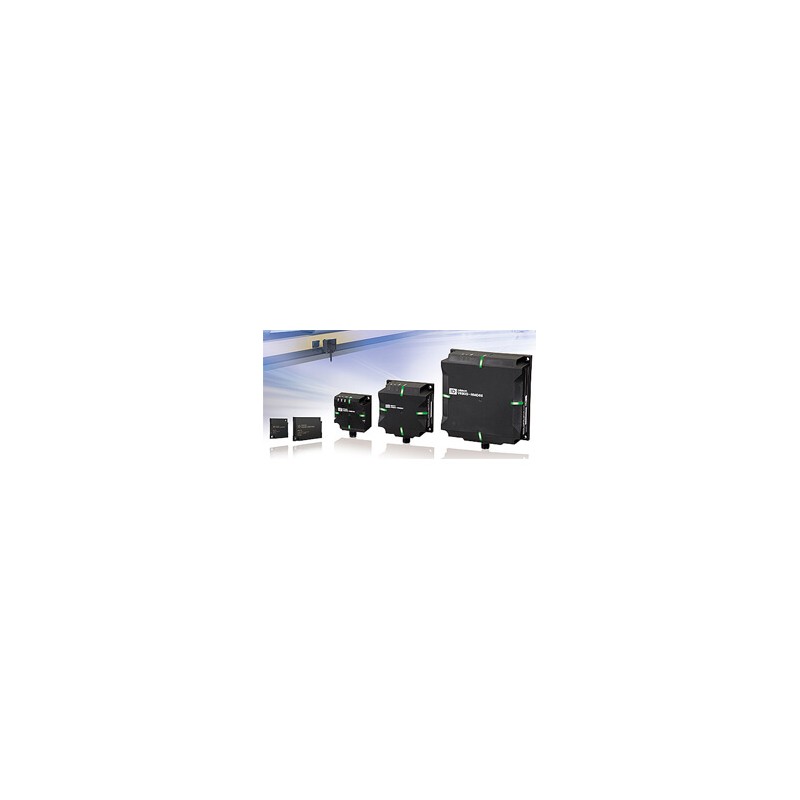

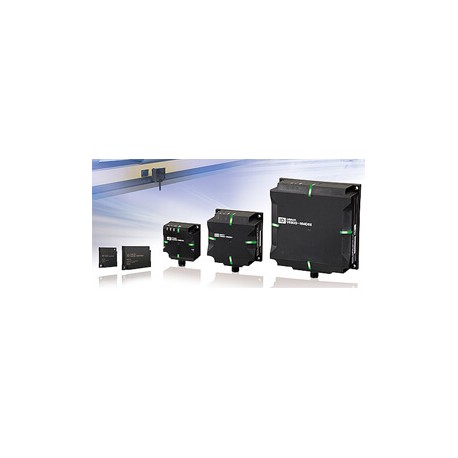

Antenna 75x75 e Controller Ethernet/IP IP67 24vdc
Antenna 75x75 e controller Ethernet/IP IP 77x75 24Vcc
Apparecchiature di Auto-identificazione > V680
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de OMRON
Grazie per il suo interesse nei nostri prodotti, speriamo che il tempo di consegna indicato sia conveniente per lei.
Durante l’elaborazione dell’ordine potrà selezionare il tipo di invio che meglio si adatti alle sue necessità: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Type | Memory capacity | Appearance | Size | Installation | Order code |
---|---|---|---|---|---|
Battery-less | 2 kbytes | 40 × 40 × 5mm | For flush mounting on metallic surface | V680S-D2KF67M | |
For flush mounting on nonmetallic surface | V680S-D2KF67 | ||||
86 × 54 × 10mm | For flush mounting on metallic surface | V680S-D2KF68M | |||
For flush mounting on nonmetallic surface | V680S-D2KF68 | ||||
8 kbytes | 40 × 40 × 5mm | For flush mounting on metallic surface | V680S-D8KF67M 2 V680S-D8KF6_M/V680S-D8KF6_ can be usedwith V680S series Reader/Writer version 2.00 or higher. | ||
For flush mounting on nonmetallic surface | V680S-D8KF67 2 V680S-D8KF6_M/V680S-D8KF6_ can be usedwith V680S series Reader/Writer version 2.00 or higher. | ||||
86 × 54 × 10mm | For flush mounting on metallic surface | V680S-D8KF68M 2 V680S-D8KF6_M/V680S-D8KF6_ can be usedwith V680S series Reader/Writer version 2.00 or higher. | |||
For flush mounting on nonmetallic surface | V680S-D8KF68 2 V680S-D8KF6_M/V680S-D8KF6_ can be usedwith V680S series Reader/Writer version 2.00 or higher. |
Type | Memory capacity | Appearance | Size | Installation | Order code |
---|---|---|---|---|---|
Battery-less | 1 kbyte | 20 dia. × 2.7 mm | For flush mounting on nonmetallic surface | V680-D1KP54T | |
34 × 34 × 3.5mm | For flush mounting on metallic surface | V680-D1KP66MT | |||
For flush mounting on nonmetallic surface | V680-D1KP66T | ||||
Environment-resistant type Battery-less | 95 × 36.5 × 6.5mm | For flush mounting on nonmetallic surface | V680-D1KP66T-SP | ||
High-temperature type Battery-less | 80 dia. × t10 mm | For mounting with special attachment | V680-D1KP58HTN |
V680 series 8kbyte RF Tag (V680-D8KF67,V680-D8KF67Mand V680-D8KF68A) can communicate with V680S series Reader/Writer.For details, refer to the User's Manual (Cat. No. Z339).
Type | Appearance | Size | Network | Order code |
---|---|---|---|---|
Reader/Writer | 50 × 50 × 30mm | EtherNet/IP | V680S-HMD63-EIP | |
PROFINET | V680S-HMD63-PNT | |||
75 × 75 × 40mm | EtherNet/IP | V680S-HMD64-EIP | ||
PROFINET | V680S-HMD64-PNT | |||
120 × 120 × 40mm | EtherNet/IP | V680S-HMD66-EIP | ||
PROFINET | V680S-HMD66-PNT | |||
50 × 50 × 30mm | Modbus TCP (TCP/IP) | V680S-HMD63-ETN | ||
75 × 75 × 40mm | V680S-HMD64-ETN | |||
120 × 120 × 40mm | V680S-HMD66-ETN |
Type | Appearance | Order code |
---|---|---|
For the V680-D1KP66T | V600-A86 | |
For the V680-D1KP58HTN | V680-A80 | |
For the V680-D1KP54T | V700-A80 |
Type | Appearance | Length | Order code |
---|---|---|---|
Special connector – RJ45 | 2 m | V680S-A41 2M | |
5 m | V680S-A41 5M | ||
10 m | V680S-A41 10M | ||
Special connector – Loose wires | 2 m | V680S-A42 2M | |
5 m | V680S-A42 5M | ||
10 m | V680S-A42 10M |
Type | Appearance | Length | Order code |
---|---|---|---|
Special connector – Specialconnector | 10 m | V680S-A40 10M | |
20 m | V680S-A40 20M | ||
50 m | V680S-A40 50M |
The maximum extendable cable length usingthe cable and extension cable is 60 m. Only one extension cablecan be used.
Type | Appearance | Specifications | Order code | ||
---|---|---|---|---|---|
Functions | No. of ports | Failure detection | |||
Industrial switching hubs | Quality of Service (QoS): EtherNet/IP control data priority Failure detection: Broadcast storm and LSI error detection 10/100BASE-TX, Auto-Negotiation | 3 | No | W4S1-03B | |
5 | No | W4S1-05B | |||
5 | Yes | W4S1-05C |
RFID Units | Appearance | Product name | Amplifier/Antenna | No. of unit numbers used | Order code |
---|---|---|---|---|---|
NX-series RFID Units | RFID Units | V680 series | 1 | NX-V680C1 | |
2 | NX-V680C2 |
Item | V680S-D2KF67 | V680S-D2KF67M | V680S-D2KF68 | V680S-D2KF68M |
---|---|---|---|---|
Memory capacity | 2,000bytes (user area) | |||
Memory type | FRAM | |||
Data retention | 10 years after writing (85°C orless) | |||
Memory life | One trillion writes for each block(85°C or less), Access frequency 2 : One trillion accessesThe number of accesses is thetotal number of reads and writes. | |||
Ambient operating temperature | −20 to 85°C (with no icing) | |||
Ambient storage temperature | −40 to 125°C (with no icing) | |||
Ambient operating humidity | 35% to 85% | |||
Degree of protection | IP68 (IEC 60529:2001), Oil resistance equivalent to IP67G (JIS C 0920:2003, Appendix 1) 2 .Oil resistance has been tested using a specific oil as defined in the OMRON test method. IPX9K (DIN 40 050) | |||
Vibration resistance | No abnormality after applicationof 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s²,10 sweeps each in X, Y, and Z directions for 15 minutes each | No abnormality after applicationof 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s²,10 sweeps each in X, Y, and Z directions for 11 minutes each | ||
Shock resistance | No abnormality after applicationof 500 m/s², 3 times each in X, Y, and Z directions (Total: 18 times) | |||
Dimensions (W×H×D) | 40 × 40 × 5mm | 86 × 54 × 10mm | ||
Materials | Exterior: PPS resin | |||
Weight | Approx. 11.5 g | Approx. 12 g | Approx. 44 g | Approx. 46 g |
Metal countermeasures | None | Provided | None | Provided |
For details, refer to the User’s Manual(Cat. No. Z339).
Item | V680S-D8KF67 | V680S-D8KF67M | V680S-D8KF68 | V680S-D8KF68M |
---|---|---|---|---|
Memory capacity | 8,192 bytes (user area) | |||
Memory type | FRAM | |||
Data retention | 10 years after writing (85°C orless) | |||
Memory life | One trillion writes for each block(85°C or less), Access frequency 2 : One trillion accessesThe number of accesses is thetotal number of reads and writes. | |||
Ambient operating temperature | −20 to 85°C (with no icing) | |||
Ambient storage temperature | −40 to 125°C (with no icing) | |||
Ambient operating humidity | 35% to 85% | |||
Degree of protection | IP68 (IEC 60529:2001), Oil resistance equivalent to IP67G (JIS C 0920:2003, Appendix 1) 2 .Oil resistance has been tested using a specific oil as defined in the OMRON test method. IPX9K (DIN 40 050) | |||
Vibration resistance | No abnormality after applicationof 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s²,10 sweeps each in X, Y, and Z directions for 15 minutes each | No abnormality after applicationof 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s²,10 sweeps each in X, Y, and Z directions for 11 minutes each | ||
Shock resistance | No abnormality after applicationof 500 m/s², 3 times each in X, Y, and Z directions (Total: 18 times) | |||
Dimensions (W×H×D) | 40 × 40 × 5mm | 86 × 54 × 10mm | ||
Materials | Exterior: PPS resin | |||
Weight | Approx. 11.5 g | Approx. 12 g | Approx. 44 g | Approx. 46 g |
Metal countermeasures | None | Provided | None | Provided |
For details, refer to the User’s Manual(Cat. No. Z339).
Item | V680-D1KP54T | V680-D1KP66T | V680-D1KP66MT | V680-D1KP66T-SP |
---|---|---|---|---|
Memory capacity | 1,000 bytes (user area) | |||
Memory type | EEPROM | |||
Data retention time | 10 years after writing (85°C or less), 0.5 year after writing (85 to 125°C) Total data retention at high temperatures exceeding 125°C is 10 hours 2 After storing data at high temperatures, rewrite the data even if changes are not required. High temperatures are those exceeding 125°C up to 180°C. | 10 years after writing (85°C or less) | ||
Write endurance | 100,000 writes for each block(25°C) | |||
Ambient operating temperature (during transmission) | −25 to 85°C (with no icing) | During RF Tag communications: −25 to 70°C (with no icing)Not during RF Tag communications: −40 to 110°C (with no icing) | ||
Ambient storage temperature (during data backup) | −40 to 125°C (with no icing) Heat resistance:1,000 thermal cycles each of 30 minutes at −10°C/150°C, High temperature storage: 1,000 hours at 150°C 2 150°C heat resistance: The heat resistance has been checked at 150°C for up to 1,000 hours, and thermal shock has been checked through testing 1,000 thermal cycles each of 30 minutes at –10/150°C. (Test samples: 22, defects: 0) 200 thermal cycles each of 30 minutes at −10°C/180°C, High temperature storage: 200 hours at 180°C 2 180°C heat resistance: The heat resistance has been checked at 180°C for up to 200 hours, and thermal shock has been checked through testing 200 thermal cycles each of 30 minutes at –10°C/180°C. (Test samples: 22, defects: 0) | −40 to 110°C (with no icing) | ||
Ambient operating humidity | 35 to 95% | |||
Degree of protection | IP67 (IEC 60529:2001) Oil resistance equivalent to IP67G(JIS C 0920:2003, Appendix 1) 2 Oil resistance has been tested using a specific oil as defined in the OMRON test method. | IP68 (IEC 60529:2001) Oil resistance equivalent to IP67G(JIS C 0920:2003, Appendix 1) 2 Oil resistance has been tested using a specific oil as defined in the OMRON test method. | IP67 | |
Vibration resistance | No abnormality after application of 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s², 10 sweeps each in X, Y, and Z directions for 15 minutes each | |||
Shock resistance | No abnormality after applicationof 500 m/s², 3 times each in X, Y, and Z directions (Total: 18 times) | |||
Appearance | 20 dia. × 2.7 mm | 34 × 34 × 3.5mm | 95 × 36.5 × 6.5 mm (excluding protruding parts) | |
Materials | PPS resin | Exterior: PFA fluororesin RF Tag filling:PPS resin | ||
Weight | Approx. 2 g | Approx. 6 g | Approx. 7.5 g | Approx. 20 g |
Metal countermeasures | None | None | Provided | None |
For details, refer to the User's Manual(Cat. No. Z339).
Item | V680-D1KP58HTN |
---|---|
Memory capacity | 1,000 bytes (user area) |
Memory type | EEPROM |
Data retention | 10 years after writing (85°C or less), 0.5year after writing (85 to 125°C) Total data retention at hightemperatures exceeding 125°C is 10 hours 2 After storing data athigh temperatures, rewrite the data even if changes are not required.High temperatures are those exceeding 125°C up to 180°C. |
Write endurance | 100,000 writes for each block (25°C) |
Ambient operating temperature (during transmission) | −25 to 85°C (with no icing) |
Ambient storage temperature (during data backup) | −40 to 250°C (with no icing) (Data retention:−40 to 125°C) |
Ambient storage humidity | No restrictions. |
Degree of protection | IP67 (IEC 60529:2001) Oil resistanceequivalent to IP67G (JIS C 0920:2003, Appendix 1) 2 Oil resistancehas been tested using a specific oil as defined in the OMRON testmethod. |
Vibration resistance | No abnormality after application of 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s², 10 sweeps each in X, Y, and Z directions for 15 minutes each |
Shock resistance | No abnormality after application of 500 m/s²,3 times each in X, Y, and Z directions (Total: 18 times) |
Materials | Exterior: PPS resin |
Weight | Approx. 70 g |
For details, refer to the User's Manual(Cat. No. Z339).
Item | V680S-HMD63-EIP V680S-HMD63-PNT | V680S-HMD64-EIP V680S-HMD64-PNT | V680S-HMD66-EIP V680S-HMD66-PNT |
---|---|---|---|
Dimensions (W×H×D) | 50 × 50 × 30 mm (excluding protruding parts and cables) | 75 × 75 × 40 mm (excluding protruding parts and cables) | 120 × 120 × 40 mm (excluding protruding parts and cables) |
Power supply voltage | 24 VDC (−15% to 10%) | ||
Consumption current | 0.2 A max. | ||
Ambient operating temperature | −10 to +55°C (with no icing) | ||
Ambient operating humidity | 25% to 85% (with no condensation) | ||
Ambient storage temperature | −25 to 70°C (with no icing) | ||
Ambient storage humidity | 25% to 85% (with no condensation) | ||
Insulation resistance | 20 MΩ min. (at 500 VDC) betweencable terminals and case | ||
Dielectric strength | 1,000 VAC, 50/60 Hz for 1 minbetween cable terminals and case | ||
Vibration resistance | No abnormality after application of 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s², 10 sweeps in each of 3 axis directions (up/down, left/right, and forward/backward) for 11 minutes each | ||
Shock resistance | No abnormality after applicationof 500 m/s², 3 times each in 6 directions (Total: 18 times) | ||
Degree of protection | IP67 (IEC 60529: 2001) Oilresistance equivalent to IP67F (JIS C 0920: 2003, Appendix 1) 2 Oilresistance has been tested using a specific oil as defined in theOMRON test method. | ||
Materials | Case: PBT resin, Filled resin:Urethane resin | ||
Mass | Approx. 240 g | Approx. 390 g | Approx. 760 g |
Installation method | Reader/Writer: Two M4 screws (Use a screw of 12 mm or more in length.) Branch cable joint:One M4 screws | Four M4 screws (Use a screw of 12 mm or more in length.) | |
Host device communications interface | Ethernet 10BASE-T/100BASE-TX | ||
Host device communications protocol | EtherNet/IP, PROFINET | ||
Accessories | Instruction Sheet, Descriptionof Regulations and Standard, IP address label |
The 0.5 m cable with two M12 connectorsis attached to the Reader/Writer. The cable cannot be removed.
Item | V680S-HMD63-ETN | V680S-HMD64-ETN | V680S-HMD66-ETN |
---|---|---|---|
Dimensions | 50 × 50 × 30 (excluding protruding parts) | 75 × 75 × 40 (excluding protruding parts) | 120 × 120 × 40 mm (excluding protruding parts) |
Power supply voltage | 24 VDC (–15% to 10%) | ||
Consumption current | 0.2A max. | ||
Ambient operating temperature | –10 to 55°C (with no icing) | ||
Ambient operating humidity | 25% to 85% (with no condensation) | ||
Ambient storage temperature | −25 to 70°C (with no icing) | ||
Ambient storage humidity | 25% to 85% (with no condensation) | ||
Insulation resistance | 20 MΩ min. (at 500 VDC) betweencable terminals and case | ||
Dielectric strength | 1,000 VAC, 50/60 Hz for 1 minbetween cable terminals and case | ||
Vibration resistance | No abnormality after application of 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s², 10 sweeps in each of 3 axis directions (up/down, left/right, and forward/backward) for 11 minutes each | ||
Shock resistance | No abnormality after applicationof 500 m/s², 3 times each in 6 directions (Total: 18 times) | ||
Degree of protection | IP67 (IEC 60529: 2001) Oilresistance equivalent to IP67F (JIS C 0920: 2003, Appendix 1) 2 Oilresistance has been tested using a specific oil as defined in theOMRON test method. | ||
Materials | Case: PBT resin, Filled resin:Urethane resin | ||
Mass | Approx. 120 g | Approx. 270 g | Approx. 640 g |
Installation method | Two M4 screws (Use a screw of 12 mm or more in length.) | Four M4 screws (Use a screw of 12 mm or more in length.) | |
Host device communications interface | Ethernet 10BASE-T/100BASE-TX | ||
Host device communications protocol | MODBUS TCP | ||
Accessories | Instruction sheet, Descriptionof Regulations and Standard, IP address label, Ferrite core 2 Providedonly with the V680S-HMD66-ETN. |
The below shows theconfiguration for 1 to 1 connection. Multiple Reader/Writers canbe connected by using a switching hub.
