G7SA-3A1B 24VDC
G7SA0001R
G7SA3A1B24DC
OMRON
1
Disponibile Invio oggi

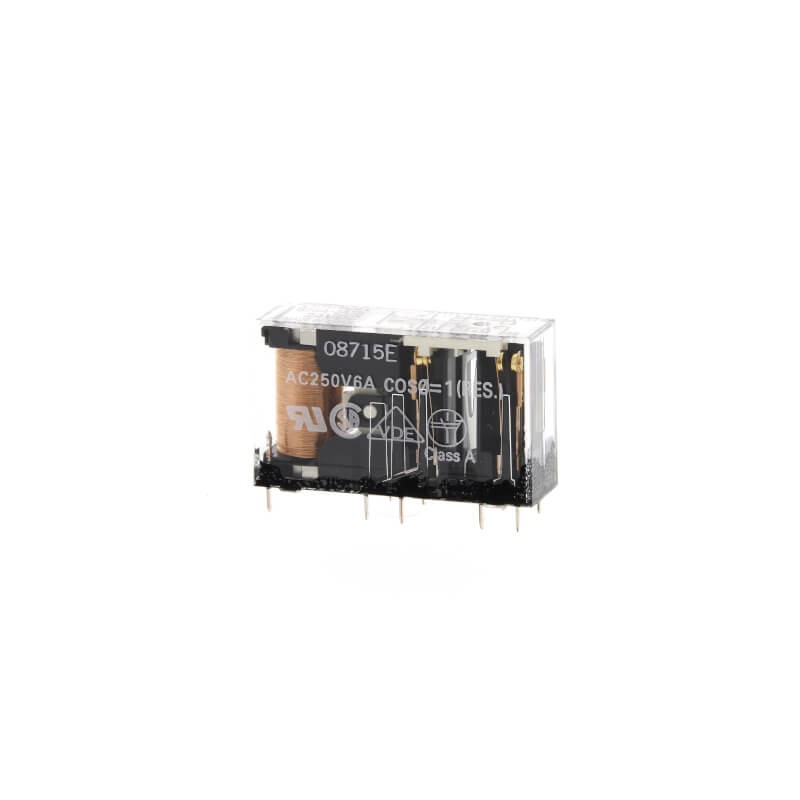

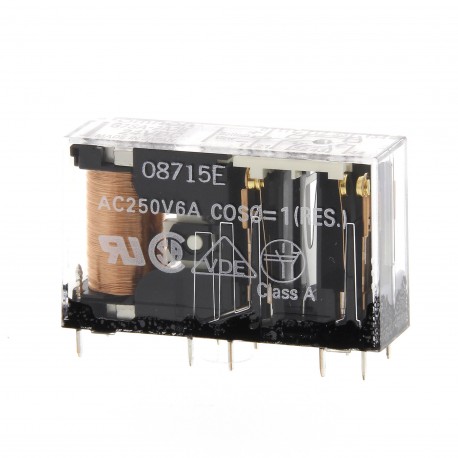

Relè di Sicurezza 3PST-NA SPST-NC 4 poli 6A, 24vdc
Inoltro di sicurezza 3PST-NA SPST-NC 4 poli 6A 24Vcc
Sicurezza > G7S
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de OMRON
Grazie per il suo interesse nei nostri prodotti, speriamo che il tempo di consegna indicato sia conveniente per lei.
Durante l’elaborazione dell’ordine potrà selezionare il tipo di invio che meglio si adatti alle sue necessità: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
24 VDC1 | |||||
Note: Refer to datasheet for details
100 mΩ max. (The contact resistance was measured with 1 A at 5 VDC using the voltage-drop method.) | ||
Operating time2 | ||
Response time1 | 10 ms max. | |
Release time1 | ||
100 MΩ min. (at 500 VDC) (The insulation resistance was measured with a 500 VDC megger at the same places that the dielectric strength was | ||
Between coil contacts/different poles: 4,000 VAC, 50/60 Hz for 1 min Between contacts of same polarity: 1,500 VAC, 50/60 Hz for 1 min | ||
10,000,000 operations min. (at approx. 36,000 operations/hr) | ||
100,000 operations min. (at the rated load and approx. 1,800 operations/hr) | ||
Min. permissible load5 | ||
Ambient temperature6 | ||
Note: The values listed above are initial values.
Please check Omron in the Internet for updated information on product reliability data and the SISTEMA libraries: http://industrial.omron.eu/safety
Titolo: | Dimensione: | Tipo: |
---|---|---|
G7SA-3A1B 24VDC G7SA3A1B24DC G7SA0001R IT_G7SA-2A2B DC12.pdf | 949 Kbytes | |
G7SA-3A1B 24VDC G7SA3A1B24DC G7SA0001R g7s_e_relays_with_forcibly_guided_contacts_datasheet_en.pdf | 464 Kbytes |
