OMRONSensori fotoelettriciSENSORI FOTOELETTRICIE3H2-DS10C4M 2M AA029802A E3H2DS10C4M2M OMRON Metallo M12 dc 4h Reflex 10 cm NPN Cavo 2m

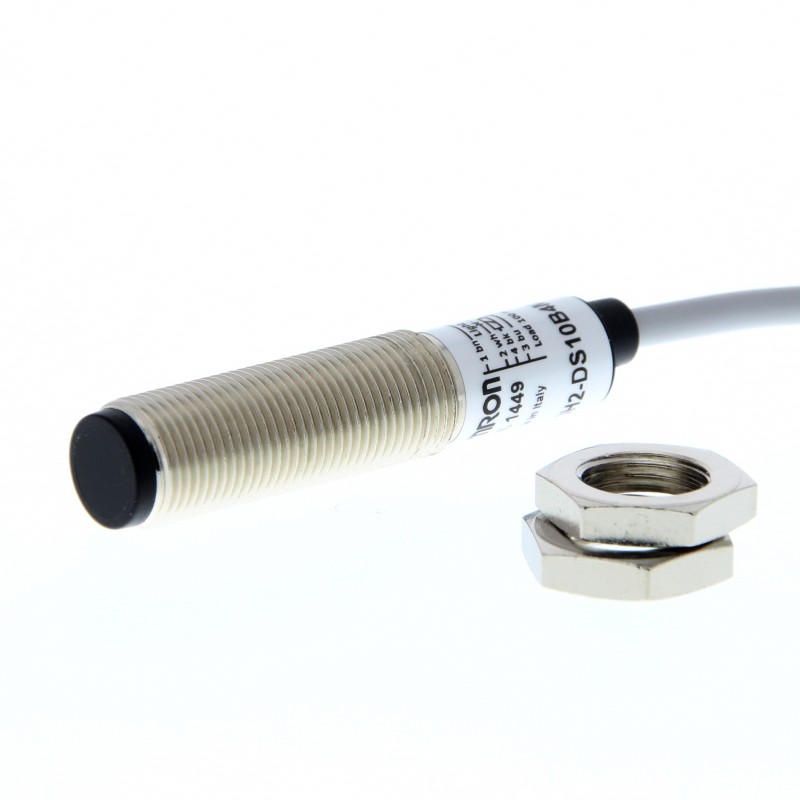

OMRON E3H2-DS10C4M 2M AA029802A E3H2DS10C4M2M - Immagine 1

Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica per i dettagli.

E3H2-DS10C4M 2M AA029802A E3H2DS10C4M2M OMRON Metallo M12 dc 4h Reflex 10 cm NPN Cavo 2m

Riferimento: E3H2-DS10C4M 2M

Codice: AA029802A

Numero di catalogo: E3H2DS10C4M2M

Produttore: OMRON

Descrizione:

Metallo M12 dc 4h Reflex 10 cm NPN Cavo 2m
Metallo M12 cc 4h Reflex 10cm Cavo NPN 2m

Categorie:

  • OMRON > Sensori fotoelettrici > Sensori fotoelettrici

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de OMRON

  • Dettagli
  • PDF
  • Recensioni
Garanzia, riparazione e restituzione.

* Questo articolo potrebbe essere obsoleto. Se sei interessato chiedete noi un preventivo e ti diremo se ci sono unità disponibili. Se non ce ne sono più, un nostro tecnico cercherà un'alternativa fornibile con caratteristiche simili.

Richieda un preventivo e le indicheremo se sono ancora disponibili delle unità. Qualora non ne rimanessero, uno dei nostri tecnici cercherà un’alternativa fornibile con caratteristiche simili.

VISTI DI RECENTE

DETTAGLI

  • Custodie M8 o M12 di forma cilindrica quando lo spazio di montaggio ha la massima importanza
  • Modelli a retroriflessione con due modalità di autoimpostazione per oggetti standard e semi-trasparenti
  • Modelli a riflessione diffusa con distanza di rilevamento fissa e con autoimpostazione
  • Modelli connettore e precablati

Accessori

Reflectors for retro-reflective photoelectric sensors

Shape

Type

Housing material

Features

Size in mm

Applicable Sensor

Order code


General purpose reflectors

  • ABS base
  • Acrylic surface

Surface screw mounting
(diagonal holes)

40 × 60 × 7.5

  • Retro-reflective photoelectric sensors with and without M.S.R

E39-R1S


Surface screw mounting
(holes on one side only)

35.4 × 42.3 × 8

E39-R9


51.4 × 60.3 × 8.5

E39-R42


Small size

Side screw mounting or surface selfadhesive

41.8 × 22.5 × 11

E39-R3


Surface screw mounting

23 × 13.7 × 4.9

E39-R4


Large size

100 × 100 × 9

E39-R8


84.5 × 84.5 × 8.7

E39-R40


High precision

Microtripel for improved
performance with fine beam sensors

52 × 40 × 4.8

Recommended for fine beam coaxial models (E3NC-LH03,
E3S-DB, E3T-SR4)

E39-R6


30 × 45

E39-R12


14 × 23 × 1

E39-R37-CA


12 × 24

E39-R13


Simple mounting

Round shape with centered mounting hole for simple screw mounting

Diameter: 84

Depth: 7.4

Photoelectric sensors with and
without M.S.R.

E39-R7

Note: the ambient operating temperature is -25°C to 55°C unless otherwise specified

Shape

Type

Housing material

Features

Size in mm

Applicable Sensor

Order code


Enhanced detergent resistance

  • PVC
  • Surface screw mounting
  • IP69k after DIN 40050 part 9

40 × 60 × 7.5

Recommended for harsh
environment sensors

E39-R50

  • PET
  • Surface screw mounting
  • IP69k after DIN 40050 part 9
  • Anti-fogging coating

E39-R50K


  • PVC
  • Surface screw mounting
  • IP69k after DIN 40050 part 9

20 × 60 × 6

E39-R51


Highest detergent resistance

  • SUS316L
  • Borosilicat
  • Surface screw mounting

43 × 30 × 5

E39-R16


Heat resistant

  • Borosilicat
  • Surface screw mounting
  • 450°C heat resistance
  • Suitable for vacuum environment

95 × 51 × 8

E39-R47


Non-fogging reflector

  • ABS
  • Acrylic surface

Anti-fogging coating

40 × 60 × 7.5

E39-R1K


Special polarizing

  • ABS base
  • PMMA surface

Special polarizing filter to PET

44 × 80 × 8.5

E3ZM-B, E3FA-B, E3FB-B, E3S-DB

E39-RP1


Oil-resistant Reflector

  • Methacrylate resin surface
  • Aluminium, Stainless steel screws

Resistant to cutting oil

65.4 × 106 × 11.5

E3ZR-C

E39-R1R


General purpose tape reflectors

  • Acrylic
  • Self adhesive
  • Pre cut

35 × 10 × 0.6

Photoelectric sensors with and
without M.S.R.

E39-RS1

Optimised for E3T-SR4

E39-RS1-CA


40 × 35 × 0.6

E39-RS2

Optimised for E3T-SR4

E39-RS2-CA


80 × 70 × 0.6

E39-RS3

Optimised for E3T-SR4

E39-RS3-CA


  • Self adhesive
  • Cut-to-length, roll material

25 mm × 5 m

E39-RS25 5 m

25 mm × 22.8 m

E39-RS25 22.8 m


50 mm × 5 m

E39-RS50 5 m

50 mm × 22.8 m

E39-RS50 22.8 m


High precision tape reflectors

  • Self adhesive
  • Pre cut

195 × 22

Recommended for fine beam and
laser sensors (E3NC-LH03, E3Z-LR, E3S-DB_2)

E39-RS4


108 × 46

E39-RS5

Note: Note: the ambient operating temperature is -25°C to 55°C unless otherwise specified

Mounting brackets

Shape

Type

Material

Features

Order code


M8 nuts

brass

100 pcs

ASMM0800

stainless steel

ASMM0801

M12 nuts

brass

ASMM1200

M18 nuts

ASMM1800

stainless steel

ASMM1802

plastic

1 pc

ASMK1802 (8 mm thickness)

100 pcs

ASMK1801 (4 mm thickness)

M30 nuts

brass

100 pcs

ASMM3000


M8 Washer

brass

1,000 pcs

ASZA0800

M12 Washer

ASZA1200

stainless steel

500pcs

ASZA1201

M18 Washer

brass

100 pcs

ASZA1801

stainless steel

200 pcs

ASZA1802

M30 Washer

brass

100 pcs

ASZA3001

E39/Y92E-B

Accessories

Mounting brackets

Shape

Type

Order code


Quick access - snap fix for cylindrical sensors; sizes M8, M12, M18, M30

Y92E-BC08

Y92E-BC12

Y92E-BC18

Y92E-BC30


Surface mounting for M18 cylindrical sensors (dia 18mm)

E39-L183


Standard-surface mounting (for pre-wired or pigtail models)

E39-L1041


Standard-backwall mounting

E39-L441


Protection-wall mounting (for pre-wired or pigtail models)

E39-L1421


Protection-surface mounting

E39-L981


Telescope mounting

E39-L93FH


3D rotation mounting

E39-EL4

1.The order references are examples for the E3Z sensor family. Refer to the sensor accessory datasheet E26E for the complete list of mounting brackets.

1.The order references are examples for the E3Z sensor family. Refer to the sensor accessory datasheet E26E for the complete list of mounting brackets.

DATASHEET - PDF

Titolo
Dimensione
Tipo
E3H2-DS10C4M 2M E3H2DS10C4M2M AA029802A e64e_e3h2_miniature_photoelectric_sensors_m8_m12_housing_datasheet_en.pdf
390 Kbytes
E3H2-DS10C4M 2M E3H2DS10C4M2M AA029802A e96e_xs_f_w_c_y92e_sensor_connectors_m8_and_m12_datasheet_en.pdf
2 Mbytes
PDF CATALOGO OMRON AUTOMAZIONE IT
30 Mbytes
PDF CATALOGO OMRON IT
69 Mbytes
