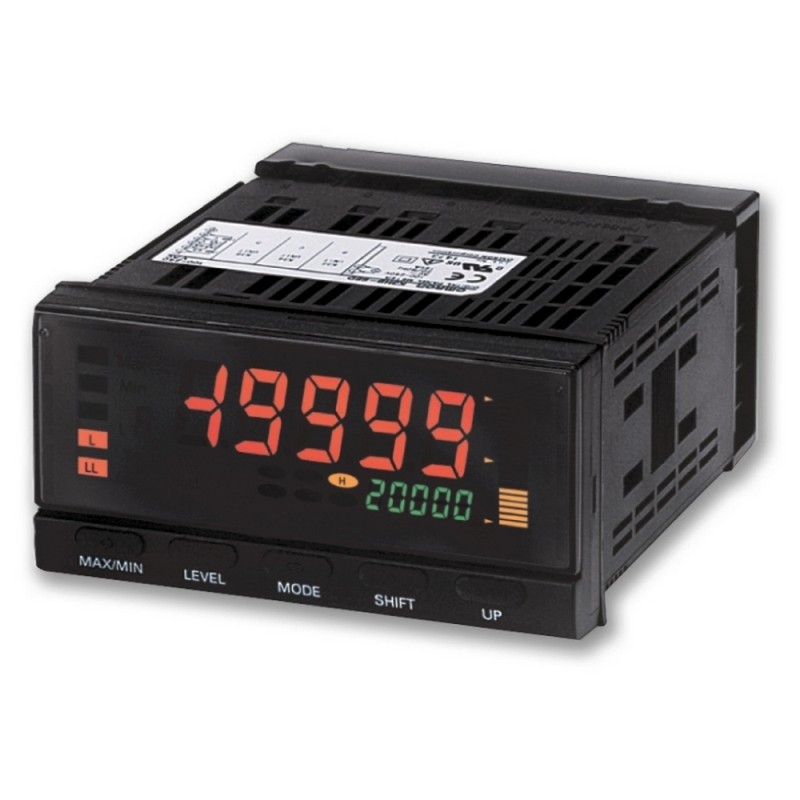

K3HB-PPB 24VAC/VDC K3HB6004C K3HBPPB24VACVDC OMRON Intervalli di tempo PNP

Rotary pulse indicator K3HB-R

No voltage contact: 30 Hz max.
Voltage pulse: 50 kHz max.
Open collector: 50 kHz max.

100 to 240 VAC

NPN input/voltage pulse

K3HB-RNB 100-240VAC

24 VAC/VDC

K3HB-RNB 24VAC/VDC

100 to 240 VAC

PNP input

K3HB-RPB 100-240VAC

24 VAC/VDC

K3HB-RPB 24VAC/VDC

100 to 240 VAC

NPN

K3HB-PNB 100-240VAC

100 to 240 VAC

PNP

K3HB-PPB 100-240VAC

Timer interval indicator K3HB-P1

100 to 240 VAC

NPN

K3HB-CNB 100-240VAC

Up/down counting pulse indicator K3HB-C1

24 VAC/VDC

PNP

K3HB-CPB 24VAC/VDC

100 to 240 VAC

K3HB-CPB 100-240VAC

B

Relay

PASS: SPDT

12 VDC ±10%, 80 mA

−

K33-CPA2

Linear current

DC0(4) - 20 mA

−

K33-L1 A3

Linear voltage

DC0(1) - 5 V, 0 to 10 V

−

K33-L2A2

−

−

−

K33-A2

−

−

RS-232C

K33-FLK1 A2

−

−

RS-485

K33-FLK3A2

C

Relay

H/L: SPDT each

−

K34-C1

HH/H/LL/L: SPST-NO each

−

K34-C2

Transistor

NPN open collector: HH/H/PASS/L/LL

−

K34-T1

PNP open collector: HH/H/PASS/L/LL

−

K34-T2

−

DeviceNet

K34-DRT4

BCD + transistor

NPN open collector: HH/H/PASS/L/LL

−

K34-BCD

D

NPN open collector

5

M3 terminal blocks

K35-1

PNP open collector

5

M3 terminal blocks

K35-3

Special BCD output cable

K32-BCD

Power supply voltage

100 to 240 VAC (50/60 Hz), 24 VAC/VDC, DeviceNet power supply: 24 VDC

Allowable power supply voltage range

85 to 110% of the rated power supply voltage, DeviceNet power supply: 11 to 25 VDC

Power consumption

100 to 240 V: 18 VA max. (max. load), 24 VAC/DC: 11 VA/7 W max. (max. load)

Display method

Negative LCD (backlit LED) display 7-segment digital display
(character height: PV: 14.2 mm (green/red); SV: 4.9 mm (green))

Ambient operating temperature

−10 to 55°C (with no icing or condensation)

Display range

−19,999 to 99,999

Weight

Approx. 300 g (base unit only)

Degree of protection

Front-panel

Conforms to NEMA 4X for indoor use (equivalent to IP66)

Rear case

IP20

Terminals

IP00 + finger protection (VDE0106/100)

Memory protection

EEPROM (non-volatile memory), number of rewrites: 100,000

Event input ratings

Contact

ON: 1 kΩ max., OFF: 100 kΩ min.

No-contact

ON residual voltage: 2 V max., OFF leakage current: 0.1 mA max., load current: 4 mA max.
Maximum applied voltage: 30 VDC max.

Output ratings

Transistor output

Maximum load voltage

24 VDC

Maximum load current

50 mA

Leakage current

100 µA max.

Contact output
(resistive load)

Rated load

5 A at 250 VAC, 5 A at 30 VDC

Rated through current

5 A

Mechanical life expectancy

5,000,000 operations

Electrical life expectancy

100,000 operations

Linear output

Allowable load impedance

500 Ω max. (mA); 5 kΩ min. (V)

Resolution

Approx. 10,000

Output error

±0.5% FS

Size in mm (H×W×D)

48×96×100
