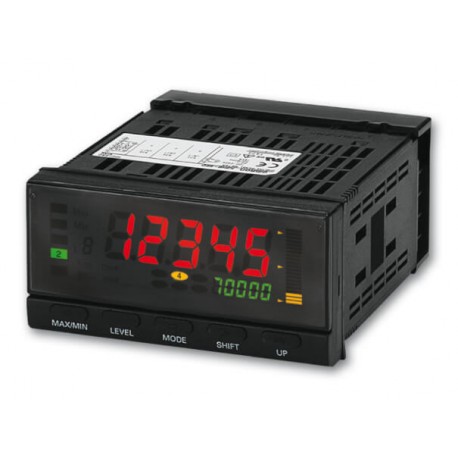

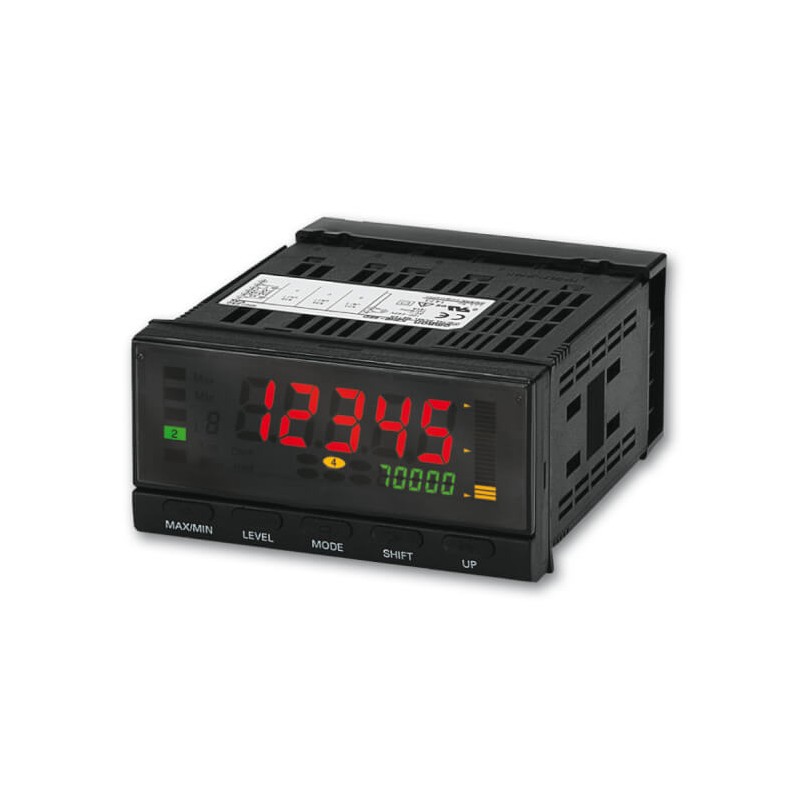

K3HB-PNB 24VAC/VDC K3HB6002G K3HBPNB24VACVDC OMRON Intervalli di tempo NPN Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

K3HB-PNB 24VAC/VDC K3HB6002G K3HBPNB24VACVDC OMRON Intervalli di tempo NPN

K3HB-PNB 24VAC/VDC

K3HB6002G

K3HBPNB24VACVDC

OMRON

Intervalli di tempo NPN

Digital panel meter, DIN1/8 (48(h) x 96(w)), 2 line display with dual color change for actual value, output and option slots, Time/Period indicator, 3

Maggiori dettagli


apparecchi per montaggio su guida DIN/armadio > Strumento di misura multifunzion

Indicatori di pannello > K3HB

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de OMRON

Prezzo totale: $515.13
Prezzo unitario: $515.13
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


  • Indicatore a barre per semplici operazioni di monitoraggio
  • DeviceNet opzionale, RS-232C, RS-485
  • Doppio display a 5 cifre in due colori
  • Dimensioni: A 48 x L 96 x P 100 mm

Caratteristiche ed info per ordinare

Ordering information

Type of indicator

Input ranges

Supply voltage

Input sensor

Order code

Rotary pulse indicator K3HB-R

No voltage contact: 30 Hz max.
Voltage pulse: 50 kHz max.
Open collector: 50 kHz max.

100 to 240 VAC

NPN input/voltage pulse

K3HB-RNB 100-240VAC

24 VAC/VDC

K3HB-RNB 24VAC/VDC

100 to 240 VAC

PNP input

K3HB-RPB 100-240VAC

24 VAC/VDC

K3HB-RPB 24VAC/VDC

100 to 240 VAC

NPN

K3HB-PNB 100-240VAC

100 to 240 VAC

PNP

K3HB-PPB 100-240VAC

Timer interval indicator K3HB-P1

100 to 240 VAC

NPN

K3HB-CNB 100-240VAC

Up/down counting pulse indicator K3HB-C1

24 VAC/VDC

PNP

K3HB-CPB 24VAC/VDC

100 to 240 VAC

K3HB-CPB 100-240VAC

Option boards

Sensor power supply/output boards

Slot

Output

Sensor power supply

Communications

Order code

B

Relay

PASS: SPDT

12 VDC ±10%, 80 mA

−

K33-CPA2

Linear current

DC0(4) - 20 mA

−

K33-L1 A3

Linear voltage

DC0(1) - 5 V, 0 to 10 V

−

K33-L2A2

−

−

−

K33-A2

−

−

RS-232C

K33-FLK1 A2

−

−

RS-485

K33-FLK3A2

Relay/transistor output boards

Slot

Output

Communications

Order code

C

Relay

H/L: SPDT each

−

K34-C1

HH/H/LL/L: SPST-NO each

−

K34-C2

Transistor

NPN open collector: HH/H/PASS/L/LL

−

K34-T1

PNP open collector: HH/H/PASS/L/LL

−

K34-T2

−

DeviceNet

K34-DRT4

BCD + transistor

NPN open collector: HH/H/PASS/L/LL

−

K34-BCD

Event input boards

Slot

Input type

Number of points

Communications

Order code5

D

NPN open collector

5

M3 terminal blocks

K35-1

PNP open collector

5

M3 terminal blocks

K35-3

Accessories

Type

Order code

Special BCD output cable

K32-BCD

Note: K32-DICN special cable accessory (for event inputs with 8-pin connector) available on request. Please contact your Omron representative.

Specifications

Power supply voltage

100 to 240 VAC (50/60 Hz), 24 VAC/VDC, DeviceNet power supply: 24 VDC

Allowable power supply voltage range

85 to 110% of the rated power supply voltage, DeviceNet power supply: 11 to 25 VDC

Power consumption

100 to 240 V: 18 VA max. (max. load), 24 VAC/DC: 11 VA/7 W max. (max. load)

Display method

Negative LCD (backlit LED) display 7-segment digital display
(character height: PV: 14.2 mm (green/red); SV: 4.9 mm (green))

Ambient operating temperature

−10 to 55°C (with no icing or condensation)

Display range

−19,999 to 99,999

Weight

Approx. 300 g (base unit only)

Degree of protection

Front-panel

Conforms to NEMA 4X for indoor use (equivalent to IP66)

Rear case

IP20

Terminals

IP00 + finger protection (VDE0106/100)

Memory protection

EEPROM (non-volatile memory), number of rewrites: 100,000

Event input ratings

Contact

ON: 1 kΩ max., OFF: 100 kΩ min.

No-contact

ON residual voltage: 2 V max., OFF leakage current: 0.1 mA max., load current: 4 mA max.
Maximum applied voltage: 30 VDC max.

Output ratings

Transistor output

Maximum load voltage

24 VDC

Maximum load current

50 mA

Leakage current

100 µA max.

Contact output
(resistive load)

Rated load

5 A at 250 VAC, 5 A at 30 VDC

Rated through current

5 A

Mechanical life expectancy

5,000,000 operations

Electrical life expectancy

100,000 operations

Linear output

Allowable load impedance

500 Ω max. (mA); 5 kΩ min. (V)

Resolution

Approx. 10,000

Output error

±0.5% FS

Size in mm (H×W×D)

48×96×100

1.There are other models available on request. Please contact your Omron representative for special request.
2.CPA can be combined with relay outputs only.
3.Only one of the following can be used by each digital indicator: RS-232C/RS-485 communications, a linear output, or DeviceNet communications.
K3HB has got three slots for option boards: Slot B, slot C and slot D.
4.Only one of the following can be used by each digital indicator: RS-232C/RS-485 communications, a linear output, or DeviceNet communications.
K3HB has got three slots for option boards: Slot B, slot C and slot D.
5.There are other models available on request. Please contact your Omron representative for special request.
