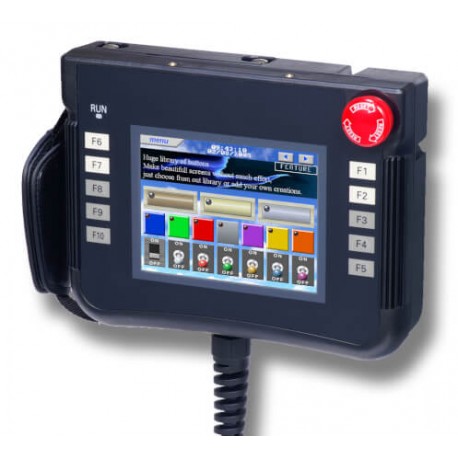

NSH5-422UL-10M 226938 OMRON Cavo RS422 10 per il Terminale tenuto in mano di NSH5

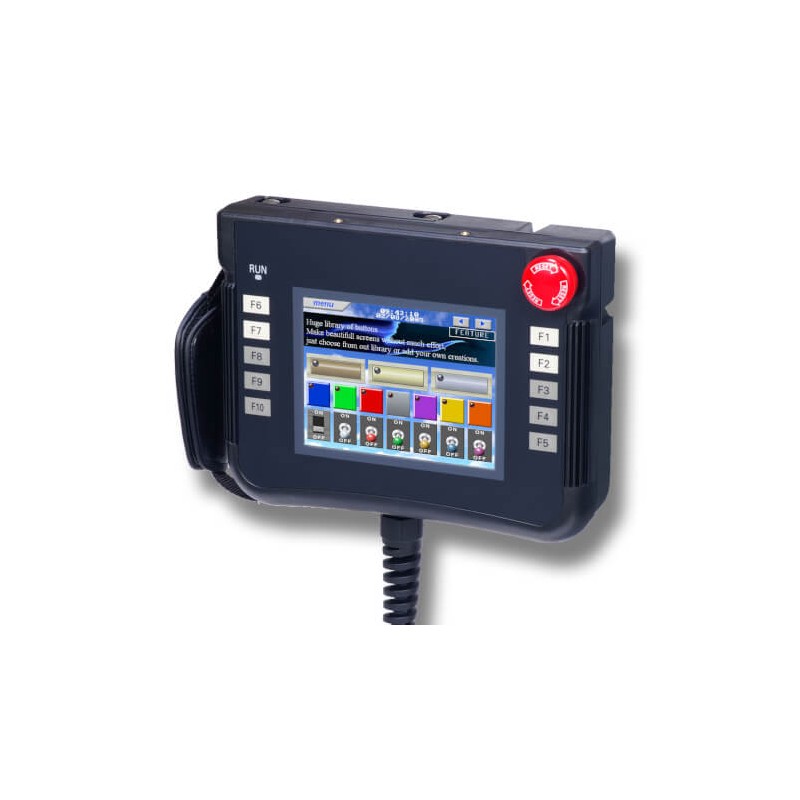

NSH5

TFT, 5.7", 320×240 pixels

Black

NSH5-SQR10B-V2

Bracket NS handheld protecting emergency button from accidental activation

NSH5-ATT01

Bracket NS handheld for wall mounting

NSH5-ATT02

Cable NS handheld, RS-422, 10m UL

NSH5-422UL-10M

Cable NS handheld, RS-232, 10m UL

NSH5-232UL-10M

Cable NS handheld, RS-232, 3m UL

NSH5-232UL-3M

Memory card interface

1 slot ATA Compact Flash card

Serial (COM1)

1×RS-232/RS-422A

USB Slave

For programming

Line voltage

24 VDC ±15%

Power consumption

10 W max.

Battery

CJ1W-BAT01

Battery lifetime

5 years (at 25°C)

Enclosure rating

IP651

Obtained standards

UL 1604 Class 1 Diff. 2, cUL, CE, NEMA equivalent

Operating environment

No corrosive gases

Noise immunity

Conforming to IEC 61000-4-4: 2 kV (power supply line)

Ambient operating temperature

0 to 40°C

Ambient operating humidity

35% to 85% max. (with no condensation)

Vibration resistance (during operation)

10 to 57 Hz with amplitude of 0.075 mm, 57 to 150 Hz with acceleration of 9.8 m/s2 three minutes each in X, Y, and Z directions

Shock resistance (during operation)

147 m/s2 three times each in X, Y, and Z directions

Drop test1

Dropped from 1 m. Conforming to JIS B 3502/IEC61131-2

Cable

Serial programming cable

XW2Z-S002

USB programming cable, 2 m

CP1W-CN221

PT-to-PLC

Connecting Cable

PT connection: 9 pins

PLC connection: 9 pins

Length: 2 m

XW2Z-200T

Length: 5 m

XW2Z-500T

Accessories

Video input

Inputs: 4 channels NTSC / PAL

NS-CA001

Inputs: 2 channels NTSC / PAL, 1 channel RGB

NS-CA002

Cable to connect NS-CA00_ to Video console unit

F150-VKP (2 m)

F150-VKP (5 m)

Controller link interface unit

NS-CLK21

RS-422A/485 adapter (50 m)

CJ1W-CIF11

RS-422A adapter (500 m)

NS-AL002

Anti-reflection sheets (5 sheets)

NS15

NS15-KBA04

NS12/10

NS12-KBA04

NS8

NS7-KBA04

NS5

NT30-KBA04

Anti-reflection protective covers (5 pack)

NS12/10

NS12-KBA05

NS8

NS7-KBA05

NS5

NT31C-KBA05

Transparent protective covers (5 pack)

NS15 (1 cover)

NS15-KBA05N

NS12/10

NS12-KBA05N

NS8

NS7-KBA05N

NS5

NT31C-KBA05N

Chemical-resistant cover (1 cover)

NS5

NT30-KBA01

Attachment adapter

(NT625C/631/631C series to NS12 series)

NS12-ATT01

(NT625C/631/631C series to NS12 series) Black

NS12-ATT01B

(NT620S/620C/600S series to NS8 series)

NS8-ATT01

(NT600M/600G/610G/612G series to NS8 series)

NS8-ATT02

Memory card

128 MB

HMC-EF183

256 MB

HMC-EF283

512 MB

HMC-EF583

Memory card adapter for PC

HMC-AP001

Battery

CJ1W-BAT01
