NRT-CN NRT 9012D NRTCN OMRON Interruttore pollice ruota
NRT-CN
NRT 9012D
NRTCN
OMRON
Interruttore pollice ruota
sensori > Interruttore
Interruttori fine corsa / Interruttori a pulsante > Altri Interruttori fine corsa
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de OMRON
Più venduti
▲Dettagli

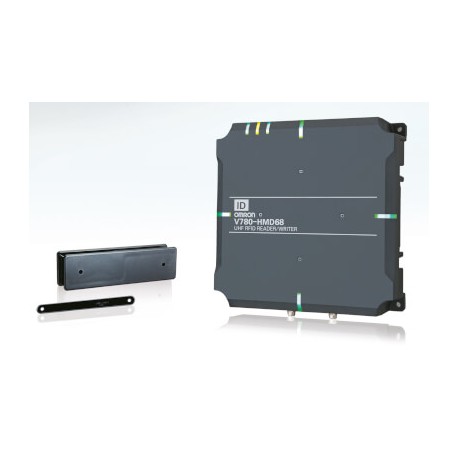

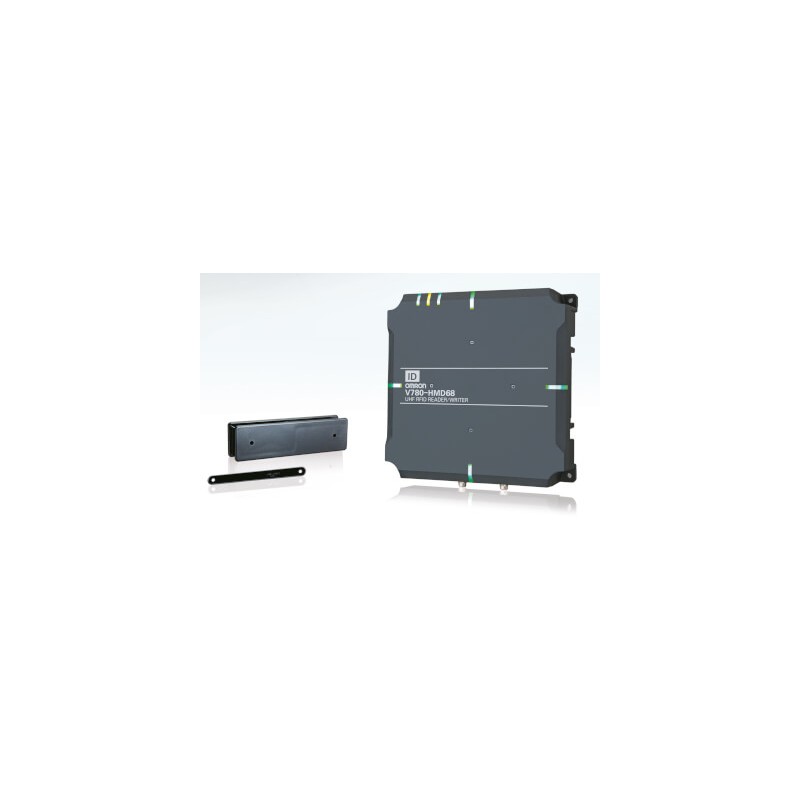

▲Sistema RFID UHF
Sistema RFID UHF 3 in 1: Antenna, amplificatore e controller
- Conforme a ISO/IEC 18000-63: 2013
- Comunicazioni stabili e a lungo raggio
- Lettore/scrittore con antenna integrata
- Stato della comunicazione visualizzato da spie a LED
- Comunicazione: Ethernet (Modbus/TCP)
- Semplice e facile da utilizzare
Ordering information
Reader/Writer
| Appearance | Size (mm) | Network | Applicable countries 2 Contact your Omronrepresentative for details on products for other countries. | Order code |
|---|---|---|---|---|
| 250 × 250 × 70 | Modbus/TCP base (TCP/IP) | Japan | V780-HMD68-ETN-JP | |
| Korea | V780-HMD68-ETN-KR | |||
| China | V780-HMD68-ETN-CN | |||
| Taiwan | V780-HMD68-ETN-TW | |||
| India | V780-HMD68-ETN-IN | |||
| Indonesia | V780-HMD68-ETN-ID | |||
| Malaysia | V780-HMD68-ETN-MY | |||
| Singapore and Thailand | V780-HMD68-ETN-SG | |||
| Under RE direct. | V780-HMD68-ETN-EU | |||
| Russia | V780-HMD68-ETN-RU | |||
| United States and Canada | V780-HMD68-ETN-US | |||
| Mexico | V780-HMD68-ETN-MX | |||
| EtherNet/IP | Japan | V780-HMD68-EIP-JP | ||
| Korea | V780-HMD68-EIP-KR | |||
| China | V780-HMD68-EIP-CN | |||
| Taiwan | V780-HMD68-EIP-TW | |||
| India | V780-HMD68-EIP-IN | |||
| Indonesia | V780-HMD68-EIP-ID | |||
| Malaysia | V780-HMD68-EIP-MY | |||
| Under RE direct. | V780-HMD68-EIP-EU | |||
| Russia | V780-HMD68-EIP-RU | |||
| United States and Canada | V780-HMD68-EIP-US | |||
| Mexico | V780-HMD68-EIP-MX |
RF Tag
| Appearance | Memory capacity | Size (mm) | Order code |
|---|---|---|---|
| 1 KB | 150 × 14 × 6 | V780-A-JIME-Z3BLI-10 2 Contains10 RF Tags per package. |
RF Tag Attachment
| Appearance | Material | Size (mm) | Order code |
|---|---|---|---|
| Polycarbonate plastic | 180 × 50 × 30 | V780-A-TA-133-10 2 Contains10 RF Tag Attachments per package. |
- Use the RF Tag Attachmentwhen mounting on metal surface. Refer to the User's Manual for howto mount.
- Toppan Forms Co., Ltd. manufactures RF Tags and Attachments. For more information, visit the following website:
http://www.toppan-f.co.jp/english/
Cables
RecommendedEthernet Cables (Connection between Host Device and Reader/Writer)
UseSTP (shielded twisted-pair) cable of category 5 or higher.
| Appearance | Specifications | Cable length (m) 2 3- and 15-m cables arealso available. | Order code | |
|---|---|---|---|---|
| Wire Gauge and Number of Pairs: AWG22, 2-pair Cable | Cable with Plug on One End and Socket on Other End (M12 Straight/RJ45) | 0.5 | XS5W-T421-BME-K | |
| 1 | XS5W-T421-CME-K | |||
| 2 | XS5W-T421-DME-K | |||
| 5 | XS5W-T421-GME-K | |||
| 10 | XS5W-T421-JME-K | |||
For details, refer to the Industrial EthernetConnectors Catalog (Cat. No. G019).
Other cable lengths, robotcables, and extension cables are available. Contact your Omron representativefor details.
Recommended PowerCables (Connection between Power Supply and Reader/Writer) XS5F-D42⬜-⬜80-F
| Specifications | Cable length (m) | Cable outer diameter (mm) | Order code | |
|---|---|---|---|---|
| Straight Connectors | Angled Connectors | |||
| Fire-retardant, Robot Cable | 1 | 6 | XS5F-D421-C80-F | XS5F-D422-C80-F |
| 2 | XS5F-D421-D80-F | XS5F-D422-D80-F | ||
| 3 | XS5F-D421-E80-F | XS5F-D422-E80-F | ||
| 5 | XS5F-D421-G80-F | XS5F-D422-G80-F | ||
| 10 | XS5F-D421-J80-F | XS5F-D422-J80-F | ||
For details, refer to the XS5 datasheet(http://www.ia.omron.com/).
Other cable lengths and extensioncables are available. Contact your Omron representative for details.
RecommendedIndustrial Switching Hubs
| Appearance | Specifications | Order code | ||
|---|---|---|---|---|
| Functions | No. of ports | Failure detection | ||
| Quality of Service (QoS): EtherNet/IP control data priorityFailure detection: Broadcast storm and LSI error detection 10/100BASE-TX, Auto-Negotiation | 3 | No | W4S1-03B | |
| 5 | No | W4S1-05B | ||
| 5 | Yes | W4S1-05C | ||
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMAZIONE IT.pdf | 30 Mbytes |
|
| PDF CATALOGO OMRON IT.pdf | 69 Mbytes |
|
| NRT-CN NRTCN NRT 9012D q256_v780_datasheet_it.pdf | 6 Mbytes |
|
