J73MC-W-10
J73M5001M
J73MCW10
OMRON
1
Disponibile Invio oggi

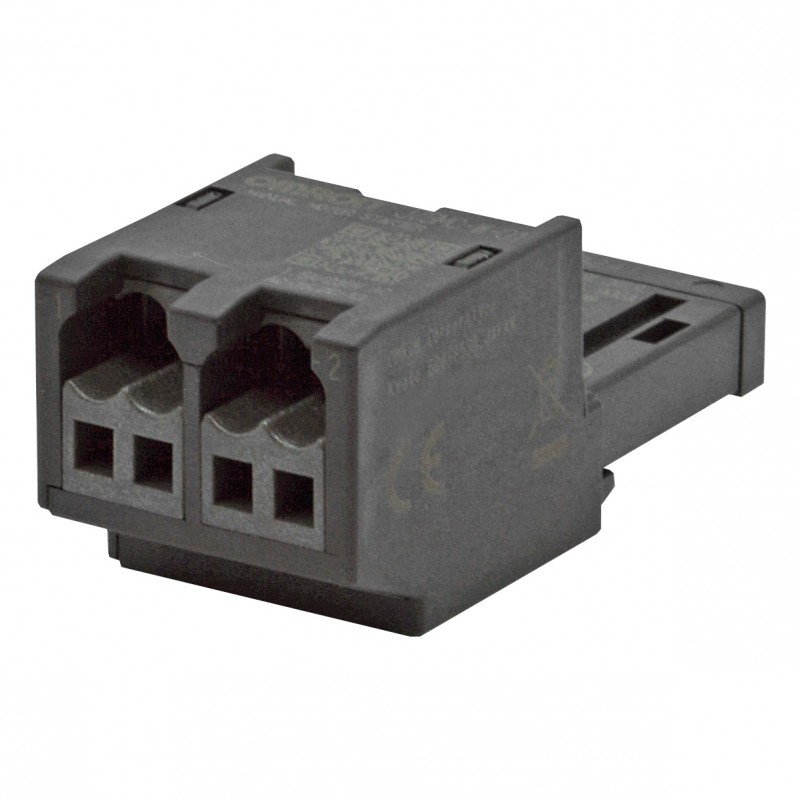

Modulo Contatti ausiliari per MMS (MPCB), Push-In e Plus Terminali
Bassa tensione > J7MN Protettori motori
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de OMRON
Grazie per il suo interesse nei nostri prodotti, speriamo che il tempo di consegna indicato sia conveniente per lei.
Durante l’elaborazione dell’ordine potrà selezionare il tipo di invio che meglio si adatti alle sue necessità: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Rated current (A)(Values in () are the currentsetting range) | Order code |
---|---|
0.16 (0.1-0.16) | J7MC-3P-E16 |
0.25 (0.16-0.25) | J7MC-3P-E25 |
0.40 (0.25-0.4) | J7MC-3P-E4 |
0.63 (0.4-0.63) | J7MC-3P-E63 |
1 (0.63-1) | J7MC-3P-1 |
1.6 (1-1.6) | J7MC-3P-1E6 |
2.5 (1.6-2.5) | J7MC-3P-2E5 |
4 (2.5-4) | J7MC-3P-4 |
6.3 (4-6.3) | J7MC-3P-6 |
10 (6.3-10) | J7MC-3P-10 |
13 (9-13) | J7MC-3P-13 |
16 (11-16) | J7MC-3P-16 |
20 (14-20) | J7MC-3P-20 |
Rated current (A) (Values in () are the currentsetting range) | Order code |
---|---|
0.16 (0.1-0.16) | J7MC-3R-E16 |
0.25 (0.16-0.25) | J7MC-3R-E25 |
0.40 (0.25-0.4) | J7MC-3R-E4 |
0.63 (0.4-0.63) | J7MC-3R-E63 |
1 (0.63-1) | J7MC-3R-1 |
1.6 (1-1.6) | J7MC-3R-1E6 |
2.5 (1.6-2.5) | J7MC-3R-2E5 |
4 (2.5-4) | J7MC-3R-4 |
6.3 (4-6.3) | J7MC-3R-6 |
10 (6.3-10) | J7MC-3R-10 |
13 (9-13) | J7MC-3R-13 |
16 (11-16) | J7MC-3R-16 |
20 (14-20) | J7MC-3R-20 |
Auxiliary contact | Order code |
---|---|
SPST-1NO | J73MC-W-10 |
SPST-1NC | J73MC-W-01 |
Auxiliary contact | Order code |
---|---|
SPST-1NO | J73MC-K-10 |
SPST-1NC | J73MC-K-01 |
Minimum order (bag) | Order code | |
---|---|---|
1 (10 pcs./bag) | For main unit | J77MC-A |
For optional unit (For auxiliary contact unit and alarm contact unit) | J77MC-B |
Rated current 2 Maximum thermal current setting value. In [A] | Current setting range Rated operating current [A] | Instantaneous trip current [A] | 3-phase standard motor capacityand full load current 2 Full load currents are values for 200 VAC/ 50 Hz, 400 VAC / 50 Hz, 4P reference motors. Before applying them, check the full load current of the motor used. | Rated breakingcurrent Icu [kA] | |||||
---|---|---|---|---|---|---|---|---|---|
200-240 VAC | 380-440 VAC | ||||||||
Capacity [kW] | Current [A] | Capacity [kW] | Current [A] | 240 VAC | 415 VAC | 440 VAC | |||
0.16 | 0.1 to 0.16 | 2.1 | – | – | 0.02 | 0.1 | 100 | 100 | 100 |
0.25 | 0.16 to 0.25 | 3.3 | 0.03 | 0.24 | 0.06 | 0.21 | |||
0.4 | 0.25 to 0.4 | 5.2 | 0.06 | 0.37 | 0.1 | 0.34 | |||
0.63 | 0.4 to 0.63 | 8.2 | --- | --- | 0.12 | 0.41 | |||
1 | 0.63 to 1 | 13 | 0.1 | 0.68 | 0.2 | 0.65 | |||
1.6 | 1 to 1.6 | 20.8 | 0.2 | 1.3 | 0.4 | 1.15 | |||
2.5 | 1.6 to 2.5 | 32.5 | 0.4 | 2.3 | 0.75 | 1.8 | |||
4 | 2.5 to 4 | 52 | 0.75 | 3.5 | 1.5 | 3.5 | |||
6.3 | 4 to 6.3 | 81.9 | – | – | 2.2 | 4.8 | 50 | ||
10 | 6.3 to 10 | 130 | 1.5 | 6.9 | 3.7 | 7.8 | 15 | ||
2.2 | 9.5 | ||||||||
13 | 9 to 13 | 169 | 2.2 | 9.5 | 5.5 | 10.5 | 50 | 10 | |
16 | 11 to 16 | 208 | 3.7 | 15.5 | 7.5 | 13.5 | 25 | ||
20 | 14 to 20 | 260 | 3.7 | 15.5 | 11 | 20 | 50 |
Rated current 2 Maximum thermal current setting value. In [A] | Current setting range Rated operating current [A] | Instantaneous trip current [A] | 3-phase standard motor capacityand full load current 2 Full load currents are values for 200 VAC/ 50 Hz, 400 VAC / 50 Hz, 4P reference motors. Before applying them, check the full load current of the motor used. | Rated breakingcurrent Icu [kA] | |||||
---|---|---|---|---|---|---|---|---|---|
200-240 VAC | 380-440 VAC | ||||||||
Capacity [kW] | Current [A] | Capacity [kW] | Current [A] | 240 VAC | 415 VAC | 440 VAC | |||
0.16 | 0.1 to 0.16 | 2.1 | – | – | 0.02 | 0.1 | 100 | 100 | 100 |
0.25 | 0.16 to 0.25 | 3.3 | 0.03 | 0.24 | 0.06 | 0.21 | |||
0.4 | 0.25 to 0.4 | 5.2 | 0.06 | 0.37 | 0.1 | 0.34 | |||
0.63 | 0.4 to 0.63 | 8.2 | --- | --- | 0.12 | 0.41 | |||
1 | 0.63 to 1 | 13 | 0.1 | 0.68 | 0.2 | 0.65 | |||
1.6 | 1 to 1.6 | 20.8 | 0.2 | 1.3 | 0.4 | 1.15 | |||
2.5 | 1.6 to 2.5 | 32.5 | 0.4 | 2.3 | 0.75 | 1.8 | |||
4 | 2.5 to 4 | 52 | 0.75 | 3.5 | 1.5 | 3.5 | |||
6.3 | 4 to 6.3 | 81.9 | – | – | 2.2 | 4.8 | |||
10 | 6.3 to 10 | 130 | 1.5 | 6.9 | 3.7 | 7.8 | 50 | ||
2.2 | 9.5 | ||||||||
13 | 9 to 13 | 169 | 2.2 | 9.5 | 5.5 | 10.5 | |||
16 | 11 to 16 | 208 | 3.7 | 15.5 | 7.5 | 13.5 | 50 | 35 2 JEM1195 breaking duty"O", single time breaking capacity is 50 kA. | |
20 | 14 to 20 | 260 | 3.7 | 15.5 | 11 | 20 |
Model | J7MC-3P-⬜ (standardtype) | J7MC-3R-⬜ (high-performancetype) | ||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Item | ||||||||||||||||||||||||||
Switch type | Rocker switch | Rotary switch | ||||||||||||||||||||||||
Number ofpoles | 3 | |||||||||||||||||||||||||
Rated currentIn | 0.16 to 20 A | |||||||||||||||||||||||||
Rated operationalvoltage Ue | 200 to 690 V | |||||||||||||||||||||||||
Rated frequency | 50/60 Hz | |||||||||||||||||||||||||
Rated insulationvoltage | 690VAC | |||||||||||||||||||||||||
Rated impulsedielectric strength | 6 kV | |||||||||||||||||||||||||
Use category | IEC 60947-2 (circuit breaker), JIS C 8201-2 | Cat.A | ||||||||||||||||||||||||
IEC 60947-4-1 (motor starter), JIS C 8201-4-1 | AC-3 | |||||||||||||||||||||||||
Trip class(IEC 60947-4-1/JIS C 8201-4-1) | 10 Trips within 4 minutes at150% Ie on hot start, trips in 4 to 10 seconds at 720% Ie on coldstart | |||||||||||||||||||||||||
Instantaneoustrip characteristics | 13 x Ie max. | |||||||||||||||||||||||||
Power loss(3-phase reference value) | Rated current 0.16 to 2.5 A: 6 W Rated current 4 to 6.3 A: 6.5 W Rated current 10 to 20 A: 7 W | Rated current 0.16 to 1.6 A: 6 W Rated current 2.5 to 4 A: 6.5 W Rated current 6.3 to 20 A: 7 W | ||||||||||||||||||||||||
Endurance | Mechanical | 100,000 cycles In=0.16 to 20A | ||||||||||||||||||||||||
Electrical | 100,000 cycles In=0.16 to 20A | |||||||||||||||||||||||||
Number ofterminal insertions and removals [cycles] | 20 | |||||||||||||||||||||||||
Maximum operatefrequency (motor starts) [cycles/hour] | 25 | |||||||||||||||||||||||||
Phase failureprotection | Yes | |||||||||||||||||||||||||
Trip indicator | Yes | |||||||||||||||||||||||||
Test tripfunction | Yes | |||||||||||||||||||||||||
Rated limit breaking capacity Icu: Rated limit breaking capacity [kA] (Breaking duty O-CO) Ics: Rated operating breaking capacity [kA] (Breaking duty O-CO-CO) Ics=100%Icu (Icu=100 kA) | Rated operational current Ie Current setting [A] | IEC 60947-2/JIS C 8201-2 | UL | IEC 60947-2/JIS C 8201-2 | UL | |||||||||||||||||||||
240 V 200 V | 415 V 400 V | 460 V 440 V | 500 V | 690 V 600 V | 480 V | 240 V 200 V | 415 V 400 V | 460 V 440 V | 500 V | 690 V 600 V | 480 V | |||||||||||||||
Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | |||
0.1-0.16 | 100 | 100 | 100 | 100 | 100 | 50 | 100 | 100 | 100 | 100 | 100 | 50 | ||||||||||||||
0.16-0.25 | 100 | 100 | 100 | 100 | 100 | 50 | 100 | 100 | 100 | 100 | 100 | 50 | ||||||||||||||
0.25-0.4 | 100 | 100 | 100 | 100 | 100 | 50 | 100 | 100 | 100 | 100 | 100 | 50 | ||||||||||||||
0.4-0.63 | 100 | 100 | 100 | 100 | 100 | 50 | 100 | 100 | 100 | 100 | 100 | 50 | ||||||||||||||
0.63-1 | 100 | 100 | 100 | 100 | 100 | 50 | 100 | 100 | 100 | 100 | 100 | 50 | ||||||||||||||
1-1.6 | 100 | 100 | 100 | 100 | 100 | 50 | 100 | 100 | 100 | 100 | 100 | 50 | ||||||||||||||
1.6-2.5 | 100 | 100 | 100 | 100 | 3 | 2 | 50 | 100 | 100 | 100 | 100 | 8 | 6 | 50 | ||||||||||||
2.5-4 | 100 | 100 | 100 | 100 | 3 | 2 | 50 | 100 | 100 | 100 | 100 | 8 | 6 | 50 | ||||||||||||
4-6.3 | 100 | 100 | 50 | 38 | 50 | 38 | 3 | 2 | 22 | 100 | 100 | 100 | 100 | 6 | 5 | 50 | ||||||||||
6.3-10 | 100 | 100 | 15 | 11 | 10 | 8 | 3 | 2 | 22 | 100 | 100 | 50 | 38 | 50 | 38 | 6 | 5 | 50 | ||||||||
9-13 | 100 | 50 | 38 | 10 | 8 | 6 | 5 | 3 | 2 | 22 | 100 | 100 | 50 | 38 | 42 | 32 | 6 | 5 | 50 | |||||||
11-16 | 100 | 25 | 19 | 10 | 8 | 6 | 5 | 3 | 2 | 22 | 100 | 50 | 38 | 35 2 JEM1195 breakingduty "O", single time breaking capacity is 50 kA | 27 | 10 | 8 | 4 | 3 | 50 | ||||||
14-20 | 50 | 38 | 25 | 19 | 10 | 8 | 6 | 5 | 3 | 2 | 22 | 100 | 50 | 38 | 35 2 JEM1195 breakingduty "O", single time breaking capacity is 50 kA | 27 | 10 | 8 | 4 | 3 | 50 | |||||
Vibrationresistance | Vibration: 10 to 55 Hz, acceleration:15 m/s2 | |||||||||||||||||||||||||
Shock resistance | Shock value 50 m/s2 | |||||||||||||||||||||||||
Degree ofprotection | IP20 (IEC60529) | |||||||||||||||||||||||||
Operatingtemperature | –20°C to +60°C | |||||||||||||||||||||||||
Ambient storagetemperature | –40°C to +80°C (no condensationor icing) | |||||||||||||||||||||||||
Relativehumidity | 95% RH max. (no condensationor icing) | |||||||||||||||||||||||||
Altitude | 2000m max. | |||||||||||||||||||||||||
Weight | Approx. 430 g | 460 g | ||||||||||||||||||||||||
ApplicableStandards | Safety Standard | EN 60947-2 (IEC 60947-2), UL60947-4-1, CSA 22.2 No.60947-4-1, CCC GB/T 14048.2, Electrical Appliances and Material Safety Act (Non-Specified Electrical Appliances and Materials) |
