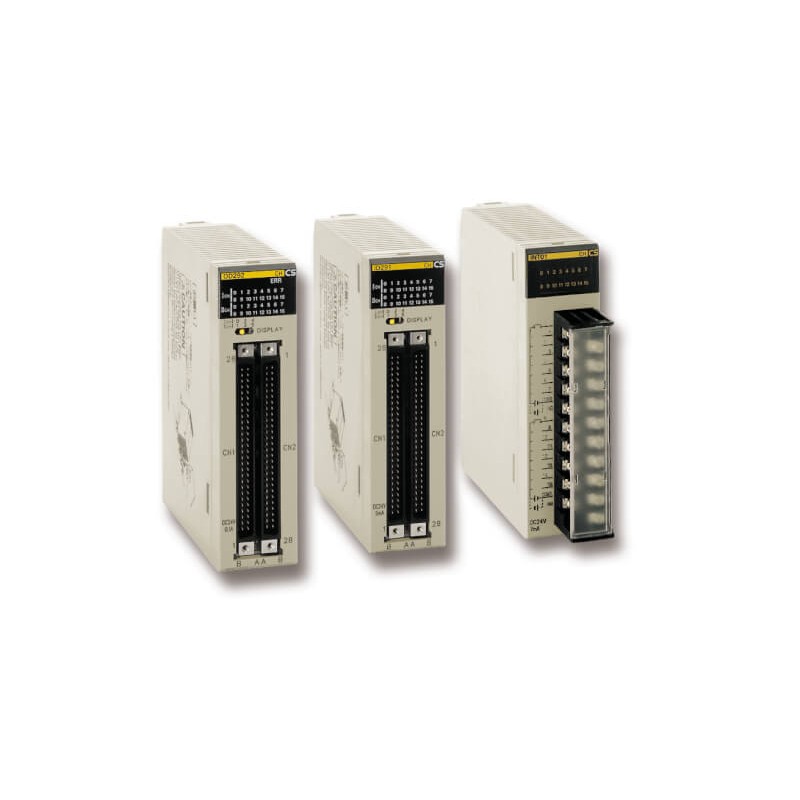

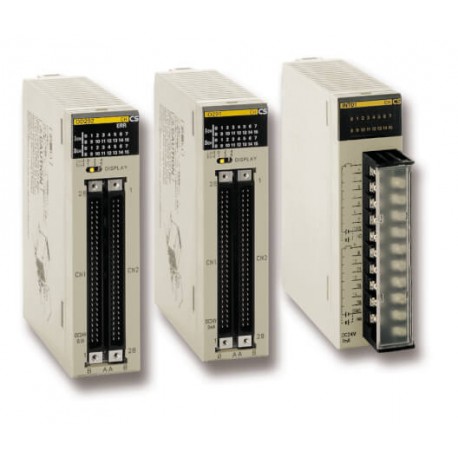

CS1W-IA111 CS1W0157M CS1WIA111 OMRON Modulo 16-input 100-120 VAC/VDC Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

CS1W-IA111 CS1W0157M CS1WIA111 OMRON Modulo 16-input 100-120 VAC/VDC

CS1W-IA111

CS1W0157M

CS1WIA111

OMRON

Modulo 16-input 100-120 VAC/VDC

Modulo 16 Ingressi 100-120VAC/VDC

Maggiori dettagli


sistemi di controllo industriali (PLC) > modulo input/output digitale PLC

Sistemi di controllo > CS1

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de OMRON

Prezzo totale: $787.06
Prezzo unitario: $787.06
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


Caratteristiche ed info per ordinare

Ordering information

Points

Type

Rated voltage

Rated current

Remarks

Connection type

Order code1

16

AC or DC input

120 VAC or VDC

10 mA

-

M3

CS1W-IA111

16

AC input

240 VAC

10 mA

-

M3

CS1W-IA211

16

DC input

24 VDC

7 mA

-

M3

CS1W-ID211

16

DC input

24 VDC

7 mA

Inputs start interrupt tasks in PLC program

M3

CS1W-INT01

16

DC input

24 VDC

7 mA

Latches pulses down to 50 µs pulse width

M3

CS1W-IDP01

32

DC input

24 VDC

6 mA

-

1 × 40 pt Fujitsu

CS1W-ID231

64

DC input

24 VDC

6 mA

-

2 × 40 pt Fujitsu

CS1W-ID261

96

DC input

24 VDC

5 mA

-

2 × 56 pt Fujitsu

CS1W-ID291

8

Triac output

250 VAC

1.2 A

-

M3

CS1W-OA201

16

Triac output

250 VAC

0.5 A

-

M3

CS1W-OA211

8

Relay output

250 VAC

2.0 A

-

M3

CS1W-OC201

16

Relay output

250 VAC

2.0 A

-

M3

CS1W-OC211

16

DC output (sink)

12 to 24 VDC

0.5 A

-

M3

CS1W-OD211

16

DC output (source)

24 VDC

0.5 A

With short-circuit protection, alarm

M3

CS1W-OD212

32

DC output (sink)

12 to 24 VDC

0.5 A

-

1 × 40 pt Fujitsu

CS1W-OD231

32

DC output (source)

24 VDC

0.5 A

With short-circuit protection, alarm

1 × 40 pt Fujitsu

CS1W-OD232

64

DC output (sink)

12 to 24 VDC

0.3 A

-

2 × 40 pt Fujitsu

CS1W-OD261

64

DC output (source)

24 VDC

0.3 A

With short-circuit protection, alarm

2 × 40 pt Fujitsu

CS1W-OD262

96

DC output (sink)

12 to 24 VDC

0.1 A

-

2 × 56 pt Fujitsu

CS1W-OD291

96

DC output (source)

24 VDC

0.1 A

-

2 × 56 pt Fujitsu

CS1W-OD292

32+32

DC output (sink)

12 to 24 VDC

0.3 A

-

2 × 40 pt Fujitsu

CS1W-MD261

32+32

DC in+out (source)

24 VDC

0.3 A

With short-circuit protection, alarm

2 × 40 pt Fujitsu

CS1W-MD262

48+48

DC output (sink)

12 to 24 VDC

0.1 A

-

2 × 56 pt Fujitsu

CS1W-MD291

48+48

DC in+out (source)

12 to 24 VDC

0.1 A

-

2 × 56 pt Fujitsu

CS1W-MD292

Note: All Digital I/O units are designated as Basic I/O units.

Accessories

Description

Connection type

Order code

Connection cable between I/O terminal block and I/O unit with 40-pt Fujitsu connector ( _ _ _ = length in cm)

Fujitsu (40pt)

XW2Z-___B

I/O terminal block for input unit with 40-pt Fujitsu connector

Push-in

XW2R-P34G-C1

I/O terminal block for output unit with 40-pt Fujitsu connector

Push-in

XW2R-P34G-C3

I/O terminal block for input unit with 40-pt Fujitsu connector

Clamp

XW2R-E34G-C1

I/O terminal block for output unit with 40-pt Fujitsu connector

Clamp

XW2R-E34G-C3

I/O terminal block for input unit with 40-pt Fujitsu connector

M3 Screws

XW2R-J34G-C1

I/O terminal block for output unit with 40-pt Fujitsu connector

M3 Screws

XW2R-J34G-C3

Note: For I/O Cables and Terminal Blocks, see page

1.C200H I/O units can also be mounted, except on CS1D systems.

Accessori

I/O cables and terminal blocks

Ordering information

I/O cables

Shape

PLC connection

Terminal connection

Length in cm

Wiring

Order code

30

50

75

100

150

200

250

300

400

500


FCN24

MIL20

-

⬛

-

⬛

-

⬛

-

⬛

-

-

Straight

XW2Z-[....]AD-L


Open ends

-

-

-

⬛

-

⬛

-

⬛

-

-

n. a.

XW2Z-[....]AL-L


FCN40

MIL20 × 2

-

-

-

⬛

⬛

⬛

-

⬛

⬛

⬛

Straight

XW2Z-[....]BH-L01

Reverse

XW2Z-[....]BH-L02


MIL40

-

⬛

-

⬛

⬛

⬛

-

⬛

-

⬛

Straight

XW2Z-[....]BF-L


Open ends

-

-

-

⬛

-

⬛

-

⬛

-

⬛

n. a.

XW2Z-[....]BN-L


FCN56

MIL20 × 3

-

-

-

-

⬛

⬛

-

⬛

-

-

Straight

XW2Z-[....]CJ-L01

Reverse

XW2Z-[....]CJ-L02


MIL20 + MIL40

-

-

-

-

⬛

⬛

-

-

-

-

Straight

XW2Z-[....]CK-L01

Reverse

XW2Z-[....]CK-L02


MIL60

-

-

-

⬛

-

⬛

-

⬛

-

-

Straight

XW2Z-[....]CG-L


MIL20

MIL20

-

⬛

-

⬛

-

⬛

-

-

-

Straight

XW2Z-[....]DD-L


Open ends

-

⬛

-

⬛

⬛

⬛

-

⬛

-

⬛

n. a.

XW2Z-[....]DL-L


Fork terminals

-

⬛

-

⬛

⬛

⬛

-

⬛

-

⬛

n. a.

XW2Z-[....]DM-L


MIL34

MIL34

-

-

-

-

-

⬛

-

-

-

-

Straight

XW2Z-[....]EE-L


MIL40

MIL20 × 2

-

-

⬛

⬛

-

⬛

-

⬛

-

⬛

Reverse

XW2Z-[....]FH-L01

Straight

XW2Z-[....]FH-L02


MIL40

⬛

⬛

-

⬛

⬛

⬛

-

⬛

-

⬛

Straight

XW2Z-[....]FF-L


Open ends

-

-

-

⬛

⬛

⬛

⬛

⬛

-

⬛

n. a.

XW2Z-[....]FN-L

Note: For [....] fill in the 4-digit length in cm

I/O cables XW2Z

XW2Z-_AD-L

PLC connection

Terminal connection

Wiring

Length in cm (L)

Order code

30

50

75

100

150

200

250

300

400

500

24-pin FCN Connector

20-pin MIL Connector

Straight

-

⬛

-

-

-

-

-

-

-

-

XW2Z-0050AD-L

-

-

-

⬛

-

-

-

-

-

-

XW2Z-0100AD-L

-

-

-

-

-

⬛

-

-

-

-

XW2Z-0200AD-L

-

-

-

-

-

-

-

⬛

-

-

XW2Z-0300AD-L


XW2Z-_AL-L

PLC connection

Terminal connection

Wiring

Length in cm (L)

Order code

30

50

75

100

150

200

250

300

400

500

24-pin FCN

Loose Wires

Straight

-

-

-

⬛

-

-

-

-

-

-

XW2Z-0100AL-L

-

-

-

-

-

⬛

-

-

-

-

XW2Z-0200AL-L

-

-

-

-

-

-

-

⬛

-

-

XW2Z-0300AL-L


XW2Z-_BH-L01

PLC connection

Terminal connection

Wiring

Length in cm (L1)

Length in cm (L2)

Order code

100

150

200

300

400

500

75

125

175

275

375

475

40-pin FCN

Two 20-pin MIL

Straight

⬛

-

-

-

-

-

⬛

-

-

-

-

-

XW2Z-0100BH-L01

-

⬛

-

-

-

-

-

⬛

-

-

-

-

XW2Z-0150BH-L01

-

-

⬛

-

-

-

-

-

⬛

-

-

-

XW2Z-0200BH-L01

-

-

-

⬛

-

-

-

-

-

⬛

-

-

XW2Z-0300BH-L01

-

-

-

-

⬛

-

-

-

-

-

⬛

-

XW2Z-0400BH-L01

-

-

-

-

-

⬛

-

-

-

-

-

⬛

XW2Z-0500BH-L01


XW2Z-_BH-L02

PLC connection

Terminal connection

Wiring

Length in cm (L1)

Length in cm (L2)

Order code

100

150

200

300

400

500

75

125

175

275

375

475

40-pin FCN

Two 20-pin MIL

Reverse

⬛

-

-

-

-

-

⬛

-

-

-

-

-

XW2Z-0100BH-L02

-

⬛

-

-

-

-

-

⬛

-

-

-

-

XW2Z-0150BH-L02

-

-

⬛

-

-

-

-

-

⬛

-

-

-

XW2Z-0200BH-L02

-

-

-

⬛

-

-

-

-

-

⬛

-

-

XW2Z-0300BH-L02

-

-

-

-

⬛

-

-

-

-

-

⬛

-

XW2Z-0400BH-L02

-

-

-

-

-

⬛

-

-

-

-

-

⬛

XW2Z-0500BH-L02


XW2Z-_BF-L

PLC connection

Terminal connection

Wiring

Length in cm (L)

Order code

30

50

75

100

150

200

250

300

400

500

40-pin FCN

40-pin MIL

Straight

-

⬛

-

-

-

-

-

-

-

-

XW2Z-0050BF-L

-

-

-

⬛

-

-

-

-

-

-

XW2Z-0100BF-L

-

-

-

-

⬛

-

-

-

-

-

XW2Z-0150BF-L

-

-

-

-

-

⬛

-

-

-

-

XW2Z-0200BF-L

-

-

-

-

-

-

-

⬛

-

-

XW2Z-0300BF-L

-

-

-

-

-

-

-

-

-

⬛

XW2Z-0500BF-L


XW2Z-_BN-L

PLC connection

Terminal connection

Wiring

Length in cm (L)

Order code

30

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF CATALOGO OMRON AUTOMAZIONE IT.pdf 30 Mbytes
PDF CATALOGO OMRON IT.pdf 69 Mbytes
