FQ-CR20050F-M
FQ 5103H
FQCR20050FM
OMRON
1
Disponibile Invio oggi

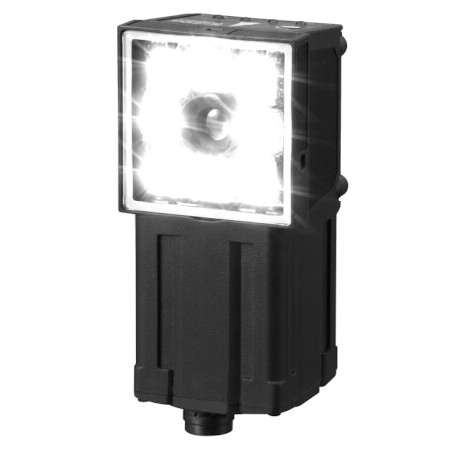

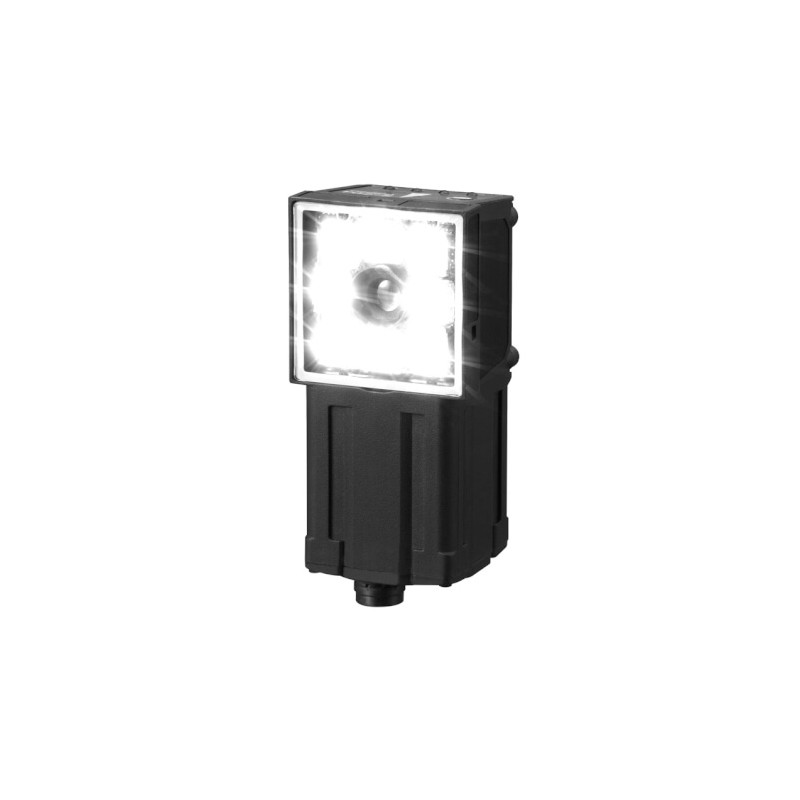

CF codice di Lettura 2D FOV:13x8.2-53x33 Dist:56-215 NPN
Vision Systems > FQ
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de OMRON
Grazie per il suo interesse nei nostri prodotti, speriamo che il tempo di consegna indicato sia conveniente per lei.
Durante l’elaborazione dell’ordine potrà selezionare il tipo di invio che meglio si adatti alle sue necessità: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Refer to Ordering information(Tolerance (field of vision): ±10% max.) | ||
Filter function (Smooth, Dilate, Erosion, Median), Code Error Correction Position Display | ||
In Sensor: 1,000 items (If a Touch Finder is used, results can be saved up to the capacity of an SD card.) | ||
In Sensor: 20 images (If a Touch Finder is used, images can be saved up to the capacity of an SD card.) | ||
Math (arithmetic, calculation functions, trigonometric functions, and logic functions) | ||
Note: The three output signals can be allocated for the judgements of individual inspection items. | ||
150 m/s² 3 times each in 6 direction (up, down, right, left, forward, and backward) | ||
IEC 60529 IP67 (Except when Polarizing Filter Attachment is mounted or connector cap is removed.) | ||
Sensor: PBT, PC, SUS, Mounting Bracket: PBT, Polarizing Filter Attachment: PBT, PC Ethernet connector: Oil-resistance vinyl compound, I/O connector: Lead-free heat-resistant PVC | ||
Narrow View/Standard View: Approx.160 g Wide View: Approx. 150 g | ||
Mounting Bracket (FQ-XL)(1), Polarizing Filter Attachment (FQ-XF1) (1), Instruction Manual, Quick Startup Guide, Member Registration Sheet, Warning Label | ||
Class 2(Applicable standards: IEC 60825-1:1993 +A1:1997 +A2:2001,EN 60825-1:1994 +A1:2002 +A2:2001, and JIS C 6802:2005) | ||
Number of sensors that can be recognized (switched): 32 max. number or sensor that can displayed on monitor: 8 max. | ||||
Last result display, Last NG display, trend monitor, histograms | ||||
English, German, French, Italian, Spanish, Traditional Chinese, Simplified Chinese, Korean, Japanese | ||||
Life expectancy1 | ||||
Life expectancy2 | ||||
DC power connection: 21.6 to 26.4 VDC (including ripple) AC adapter (manufactured by Sino-American Japan Co., Ltd) connection: 100 to 240 VAC, 50/60 Hz | ||||
Continuous operation on Battery3 | ||||
Operating: 0 to 50ºC when mounted to DIN Track Operation on Battery: 0 to 40ºC: −25 to 65ºC | ||||
10 to 150 Hz, single amplitude: 0.35 mm, X/Y/Z directions 8 min each, 10 times | ||||
150 m/s² 3 times each in 6 direction (up, down, right, left, forward, and backward) | ||||
IEC 60529 IP20 (when SD card cover, connector cap, or harness is attached) | ||||
Charged in Touch Finder (FQ2-D31). AC adapter (FQ-AC⬜) is required. | |
Charging time4 | |
Usage time1 | |
Battery backup life5 | |
The following Personal Computer system is required to use the software.
Microsoft Windows XP Home Edition/Professional SP2 or higher (32-bit version) Microsoft Windows 7 Home Premium or higher (32-bit/64-bit version) | |
500 MB min. available space6 | |
Titolo: | Dimensione: | Tipo: |
---|---|---|
FQ-CR20050F-M FQCR20050FM FQ 5103H fq2_brochure_it.pdf | 3 Mbytes |
