K32-49SC K32 2028H K3249SC OMRON Coperchio anteriore trasparente K3N / K3T

Process meter

100 to 240 VAC

DC voltage: 0 to 5 V, 1 to 5 V, -5 to 5 V, -10 to 10 V

DC current: 0 to 20 mA, 4 to 20 mA

2 relay contact outputs (SPST-NO)

K3MA-J-A2 100-240VAC

24 VAC/VDC

2 relay contact outputs (SPST-NO)

K3MA-J-A2 24VAC/VDC

Temperature meter

100 to 240 VAC

Platinum-resistance thermometer: Pt100, JPt100
or thermocouple K, J, T, E, L, U, N, R, S, B

1 relay contact output (SPDT)

K3MA-L-C 100-240VAC

24 VAC/VDC

1 relay contact output (SPDT)

K3MA-L-C 24VAC/VDC

Frequency/rate meter

100 to 240 VAC

Rotary pulse: No voltage: 0.05 to 30.00 Hz;

open collector: 0.1 to 5000.0 Hz

2 relay contact outputs (SPST-NO)

K3MA-F-A2 100-240VAC

24 VAC/VDC

2 relay contact outputs (SPST-NO)

K3MA-F-A2 24VAC/VDC

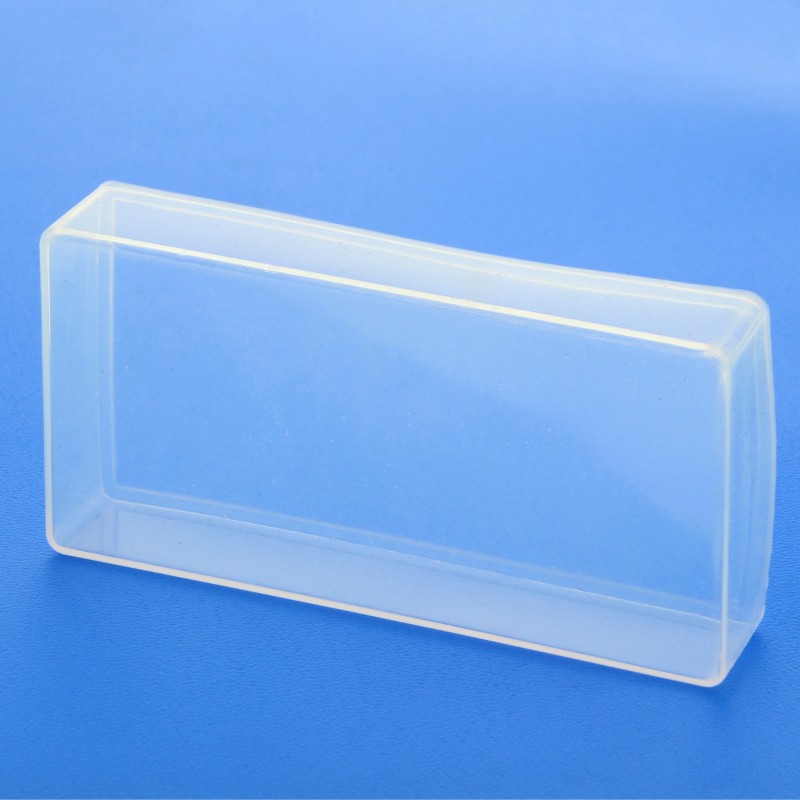

Splash-proof soft cover

K32-49SC

Hard cover

K32-49HC

Supply voltage

100 to 240 VAC

24 VAC (50/60 Hz), 24 VDC

Operating voltage range

85 to 110% of the rated supply voltage

Power consumption (under maximum load)

6 VA max.

4.5 VA max. (24 VAC) 4.5 W max. (24 VDC)

Ambient temperature

Operating: -10 to 55°C (with no condensation or icing)

Storage: -25 to 65°C (with no condensation or icing)

Weight

Approx. 200 g

Display

7-segment digital display, character height: 14.2 mm

Polarity display

“-” is displayed automatically with a negative input signal

Zero display

Leading zeros are not displayed

Hold function

Max. hold (maximum value), min. hold (minimum value)

Hysteresis setting

Programmable with front-panel key inputs (0001 to 9,999)

Delay in comparative outputs

1 s max.

Degree of protection

Front-panel: NEMA4X for indoor use (equivalent to IP66)
Rear case: IEC standard IP20
Terminals: IEC standard IP00 + finger protection (VDE 0106/100)

Memory protection

Non-volatile memory (EEPROM) (possible to rewrite 100,000 times)

Size in mm (H×W×D)

48×96×80
