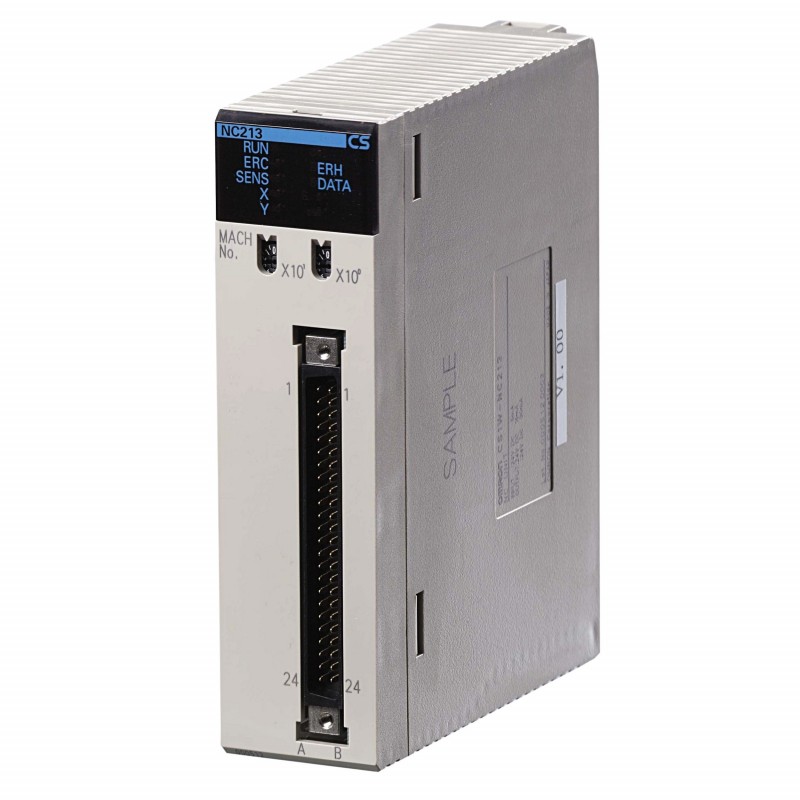

CS1W-NC213 CS1W0141C CS1WNC213 OMRON Modulo posizionatore 2-asse 500kHz CS1

CS1W-NC213

CS1W0141C

CS1WNC213

OMRON

Modulo posizionatore 2-asse 500kHz CS1

Modulo di posizionamento a 2 assi 500kHz CS1

Moduli controlli asse CS1 con uscita a treno di impulsi open collector. 2 assi interpolabili linearmente

Maggiori dettagli


CONTROLLO DEL MOVIMENTO > PLC Motion Control

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de OMRON

* Questo articolo potrebbe essere obsoleto. Se sei interessato chiedete noi un preventivo e ti diremo se ci sono unità disponibili. Se non ce ne sono più, un nostro tecnico cercherà un'alternativa fornibile con caratteristiche simili.

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


Caratteristiche ed info per ordinare

Ordering information

Channels/Axes

Type

Signal type

Unit class

Remarks

Connection type

Order code

2

SSI inputs
(absolute position data)

Synchronous
serial protocol

Special I/O unit

Baud rate, encoding type, data length,
etc. can be set per channel

2 digital outputs, NPN/PNP selectable.

M3 screw

CS1W-CTS21

2

500 kHz Counter

24 V, 12 V, line driver

Special I/O unit

4 configurable digital inputs +
4 configurable digital outputs
Target values trigger interrupt to CPU

1 × Fujitsu (40 pt)

CS1W-CT021

4

2 × Fujitsu (40 pt)

CS1W-CT041

1

Position control unit

24 V open collector

Special I/O unit

500 kpps pulse outputs, inputs for origin,
limit switches, stop, interrupt

1 × Fujitsu (40 pt)

CS1W-NC113

2

Position control unit

24 V open collector

Special I/O unit

500 kpps pulse outputs, inputs for origin,
limit switches, stop, interrupt

1 × Fujitsu (40 pt)

CS1W-NC213

4

Position control unit

24 V open collector

Special I/O unit

500 kpps pulse outputs, inputs for origin,
limit switches, stop, interrupt

2 × Fujitsu (40 pt)

CS1W-NC413

1

Position control unit

Line driver

Special I/O unit

500 kpps pulse outputs, inputs for origin,
limit switches, stop, interrupt

1 × Fujitsu (40 pt)

CS1W-NC133

2

Position control unit

Line driver

Special I/O unit

500 kpps pulse outputs, inputs for origin,
limit switches, stop, interrupt

1 × Fujitsu (40 pt)

CS1W-NC233

4

Position control unit

Line driver

Special I/O unit

500 kpps pulse outputs, inputs for origin,
limit switches, stop, interrupt

2 × Fujitsu (40 pt)

CS1W-NC433

2

Motion control unit

Analog

Special I/O unit

Closed loop with automatic trapezoid or
S-curve acceleration/deceleration

Snap-on connectors (3M)

CS1W-MC221-V1

4

Motion control unit

Analog

Special I/O unit

Closed loop with automatic trapezoid or
S-curve acceleration/deceleration

Snap-on connectors (3M)

CS1W-MC421-V1

Accessories

Description

Connection type

Order code

Servo relay unit 1-Axis position control unit

-

XW2B-20J6-1B

Servo relay unit 2-Axes position control unit

-

XW2B-40J6-2B

Cable connecting servo relay unit to Position control unit CS1W-NC113, cable length 1 m. For Accurax G5 servo drives.

-

XW2Z-100J-A6

Cable connecting servo relay unit to Position control unit CS1W-NC213/413, cable length 1 m. For Accurax G5 servo drives.

-

XW2Z-100J-A7

Cable connecting servo relay unit to Position control unit CS1W-NC113, cable length 1 m. For SmartStep 2 servo drives.

-

XW2Z-100J-A6

Cable connecting servo relay unit to Position control unit CS1W-NC213/413, cable length 1 m. For SmartStep 2 servo drives.

-

XW2Z-100J-A7

Cable connecting servo relay unit to Position control unit CS1W-NC133, cable length 1 m. For Accurax G5 servo drives.

-

XW2Z-100J-A10

Cable connecting servo relay unit to Position control unit CS1W-NC233/433, cable length 1 m. Accurax G5 servo drives.

-

XW2Z-100J-A11

Cable connecting servo relay unit to Position control unit CS1W-NC133, cable length 1 m. For SmartStep 2 servo drives.

-

XW2Z-100J-A10

Cable connecting servo relay unit to Position control unit CS1W-NC233/433, cable length 1 m. For SmartStep 2 servo drives.

-

XW2Z-100J-A11

Cable connecting servo relay unit to Accurax G5 servo drives, cable length 1 m.

-

XW2Z-100J-B25

Cable connecting servo relay unit to SmartStep 2 servo drive, cable length 1 m.

-

XW2Z-100J-B29

Note: For General-purpose I/O Cables and Terminal Blocks, see page
