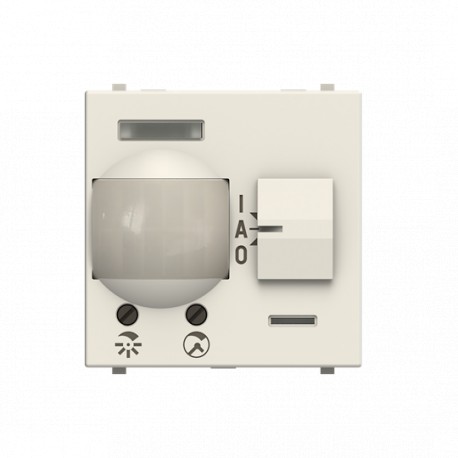

NIESSEN 2CLA224100N1101 N2241 BL - Immagine 1

Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica per i dettagli.

2CLA224100N1101 N2241 BL NIESSEN N2241 BL Rilevatore di movimento 2M

Riferimento: 2CLA224100N1101

Codice: N2241 BL

Produttore: NIESSEN

Descrizione:

N2241 BL Rilevatore di movimento 2M
Rilevatore di movimento modulare BL
Color: White. Rated voltage: 127 - 230 Vac ± 10% / 50 - 60 HzOutputs: 1 Normally Open (NO). Potential freeMax. power: - Incandescent: 1.800W @230Vac / 1.000W @127Vac - Halogen with electronic o ferromagnetic transformer: 750VA @230Vac / 400VA @127Vac - Fluorescent lamps or motors: 400VA @230Vac / 200VA @127Vac For automatic switching of devices dependent on motion and brightness.With integrated selector switch for ON-AUTOMATIC-OFF in the front side.Switch-off delay: 10 sec to 10 min or short-time pulse 1 sec adjustable (from the front side).Detection range: 5 m radiousAdjustable light set point level for activation (from the front side).Detection angle: 110 °Mounting height: 1,2 mAuxiliary control with N2X04.X push-buttonsTemperature range (Device): -10 °C to 40 °CSize: 2 modules.

Categorie:

  • NIESSEN > Flush-mounting series > Complete mechanism

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de NIESSEN

  • Dettagli
  • PDF
  • Recensioni
Garanzia, riparazione e restituzione.

* Questo articolo potrebbe essere obsoleto. Se sei interessato chiedete noi un preventivo e ti diremo se ci sono unità disponibili. Se non ce ne sono più, un nostro tecnico cercherà un'alternativa fornibile con caratteristiche simili.

Richieda un preventivo e le indicheremo se sono ancora disponibili delle unità. Qualora non ne rimanessero, uno dei nostri tecnici cercherà un’alternativa fornibile con caratteristiche simili.

VISTI DI RECENTE

DETTAGLI

  • Tipo:
    N2241 BL
  • ID prodotto:
    2CLA224100N1101
  • EAN:
    8427238074702
  • Descrizione catalogo:
    110° motion sensor - 2M - White Movement sensor White - Zenit
  • Descrizione:
    Color: White.
    Rated voltage: 127 - 230 Vac ± 10% / 50 - 60 Hz
    Outputs: 1 Normally Open (NO). Potential free
    Max. power:
    - Incandescent: 1.800W @230Vac / 1.000W @127Vac
    - Halogen with electronic o ferromagnetic transformer: 750VA @230Vac / 400VA @127Vac
    - Fluorescent lamps or motors: 400VA @230Vac / 200VA @127Vac
    For automatic switching of devices dependent on motion and brightness.
    With integrated selector switch for ON-AUTOMATIC-OFF in the front side.
    Switch-off delay: 10 sec to 10 min or short-time pulse 1 sec adjustable (from the front side).
    Detection range: 5 m radious
    Adjustable light set point level for activation (from the front side).
    Detection angle: 110 °
    Mounting height: 1,2 m
    Auxiliary control with N2X04.X push-buttons
    Temperature range (Device): -10 °C to 40 °C
    Size: 2 modules.

Installation

Dati tecnici

  • Scheda tecnica:
    9AKK10103A5108
  • Tensione nominale (Ur):
    230 V
  • Tipo di tensione d'ingresso:
    AC
  • Range di corrente:
    Minimum 3 A
    Maximum 8 A
  • Massima corrente di controllo DC:
    1800 mA
  • Frequenza (f):
    50...60 Hz
  • Potenza massima di commutazione:
    1800 W
  • Intervallo di misura:
    Diameter Detection range on floor 5 m
  • Number of Switching Zones:
    3
  • Design Range:
    Zenit
  • Tempo di ritardo (τ):
    On 10 secondo [unità di misura del tempo]
    Off 600 secondo [unità di misura del tempo]
  • Minimum Switching Time:
    Switch-On 10 secondo [unità di misura del tempo]
  • Tipo di connessione:
    Screw
  • Tipo di montaggio:
    Flush Mounted
  • Tipo sensore:
    Passive infrared
  • Finitura superficie:
    Untreated
    Glossy
  • Materiale:
    Plastic
    Thermoplastic
  • Illuminamento:
    3...1000 lx
  • Model Number:
    Movement sensor
  • RAL Number:
    RAL 9010 - Bianco puro
  • Colore:
    White
  • Number of Batteries:
    0
  • Application Function:
    Electrical Load and Light Control

Dati ambientali

  • Temperatura ambiente:
    In funzione -5 ... +35 °C
    In magazzino -5 ... +50 °C
  • Grado di protezione:
    IP20
  • Dichiarazione RoHS:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Informazioni RoHS:
    2CLC224100N1101
  • REACH Declaration:
    9AKK108467A7464
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensioni

  • Larghezza prodotto:
    44mm
  • Altezza prodotto:
    44mm
  • Profondità prodotto:
    40mm
  • Peso netto prodotto:
    0.1kg
  • Profondità integrata (t2):
    32 mm

Ordinazione

  • ID prodotto sostituito (VECCHIO):
    2CLA224100N1102
    2CLA224100N1103

Certificati e dichiarazioni (numero del documento)

Classificazioni

  • ETIM 8:
    EC000133 - Movement sensor complete
  • ETIM 9:
    EC000133 - Movement sensor/presence detector complete
  • Categoria RAEE:
    5. Piccole apparecchiature (nessuna dimensione esterna superiore a 50 cm)
  • CN8:
    Business To Consumer
  • Tipo di oggetto design:
    85365080
