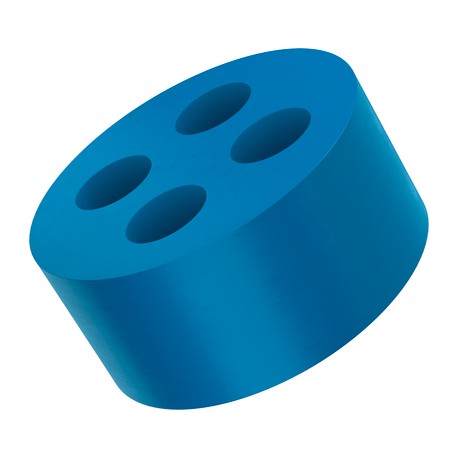

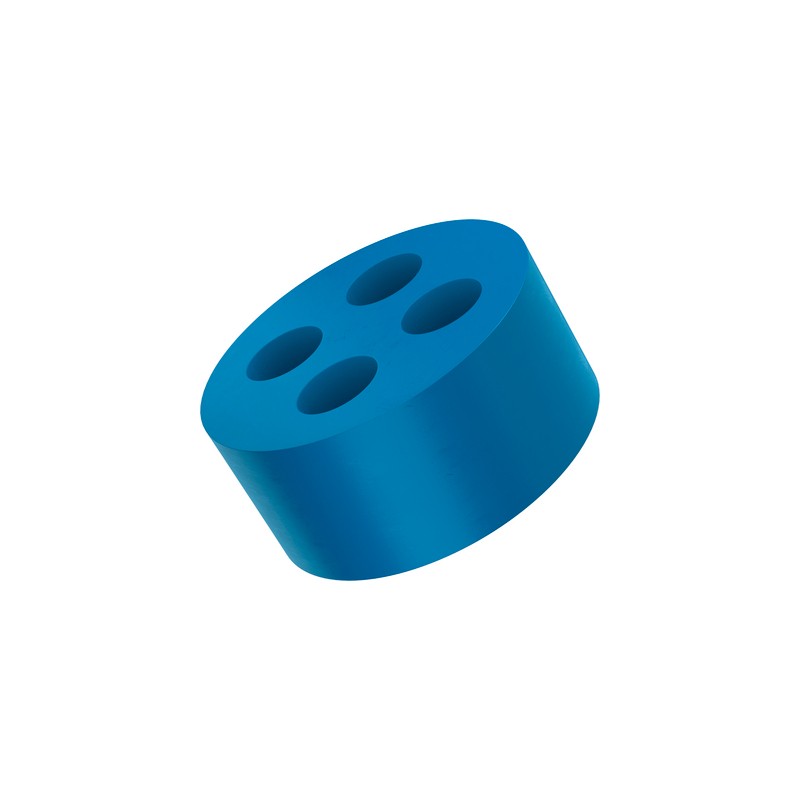

53420260 LAPP SKINTOP DIX-M 20260 FKM

Vantaggi

• Gentle clamping of the cables due to the high elasticity of the sealing insert material.
• Protection class IP 68 can be achieved, if all holes are used by cables with nominal diameter and unused openings are closed with SKINTOP® DIX-DV sealing plugs.
• Variety of versions available, depending on the number and diameter of cables. Made of acrylonitrile butadiene rubber (NBR), fluororubber (FKM) or silicone (SI).
• Easy insertion of several cables through one cable gland.
• Multiple cable insertion enables higher packing density.

Applicazione

• For use with metric SKINTOP®/SKINTOP® CLICK cable glands.
• To be used instead of the standard sealing insert in the SKINTOP® cable gland.
• Adatto per uso esterno
• The FKM variants are resistant to aggressive media such as alkalis, acids, solvents and are also oil-resistant. They are extremely heat-resistant and suitable for use with extreme high temperatures (up to +200 °C).
• The silicone variants are resistant to ECOLAB® cleaning agents and disinfectants and are chemically resistant in many cases. They conform to FDA 21 CFR 177.2600 and are therefore permitted for food and beverage industry. With their blue colour, they can easily distinguish from food. In addition, they are extremely flexible at low temperatures and suitable for use at extreme minus temperatures (down to -50 °C).

Note

• È possibile raggiungere un grado di protezione IP 68 se tutte le aperture sono chiuse e tutti i fori sono occupati in modo ottimale, cioè se vengono utilizzati cavi con diametro adeguato e/o gli accessori SKINTOP® DIX-DV

Classificazione ETIM 5

• ETIM 5.0 Class-ID: EC000032
• Descrizione classe ETIM 5.0 : Tappo per pressacavo

Classificazione ETIM 6

• ETIM 6.0 Class-ID: EC000032
• ETIM 6.0 Class-Description: Tappo a vite

Su richiesta

• Versioni speciali

Colore standard

• Nero (RAL 9005)
• Blu, RAL 5017

Materiale

• NBR, FKM, silicone

Grado di protezione

• IP 54
• IP 68 (at maximum use of all boreholes)

Campo di temperatura

• NBR: da -40°C a +100°C
  FKM: da -20 ° C a + 200 ° C
  Silicone: da -50°C a +200°C
