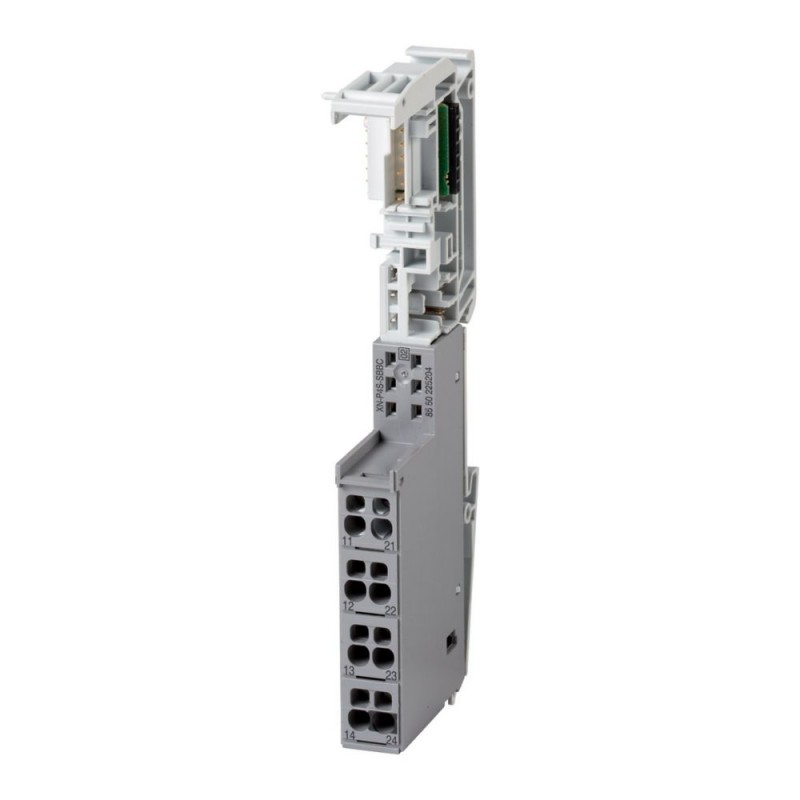

XN-P4S-SBBC 140087 Y7-140087 EATON ELECTRIC modulo base della rondella XI / ON, per l'unità di alimentazione..
XN-P4S-SBBC
140087
Y7-140087
EATON-MOELLER
modulo base della rondella XI / ON, per l'unità di alimentazione, connessione a vite 4 livelli
Modulo base XION per modulo di aggiornamento bus a 4 connessioni
Eaton XN Base module washer XI/ON, for feeder unit, screw, 4 connection levels
Rack, Moduli base per schede Slice XI/ON, Livelli di connessione: 4 livelli di connessione, Tecnologia di connessione: Morsetti a vite, per modulo Slice, Moduli base per alimentazione da campo, Modulo base per alimentazione gateway (con XN-BR-24VDC-D), Collegamento su guida C, Grado di protezione: IP20, Utilizzabile con: XN-BR-24VDC-D, XN-PF-24VDC-D, XN-PF-120/230VAC-D, Norme: EN 61000-6-2, EN 61000-6-4, EN 61131-2
sistemi di controllo industriali (PLC) > bus di campo, periferica remota – telaio di montaggio
Moduli I / O remoti XION
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton XN Rack
Catalog Number
140087
EAN
7640130120976
Product Length/Depth
128.9 mm
Product Height
49.9 mm
Product Width
12.6 mm
Product Weight
0.049 kg
Certifications
CSA-C22.2 No. 142
UL Category Control No.: NRAQ, NRAQ7
Rated data for terminations according to IEC/EN 60947-7-1
Certified by UL for use in Canada
UL File No.: E205091
CE
CE, cUL
IEC/EN 61000-6-4
IEC/EN 6113-2
UL Recognized
UL report applies to both US and Canada
CSA Class No.: 2252-01, 2252-81
UL 508
IEC/EN 61131-2
IEC/EN 61000-6-2
UL Category Control No.: NRAQ, NRAQ7
Rated data for terminations according to IEC/EN 60947-7-1
Certified by UL for use in Canada
UL File No.: E205091
CE
CE, cUL
IEC/EN 61000-6-4
IEC/EN 6113-2
UL Recognized
UL report applies to both US and Canada
CSA Class No.: 2252-01, 2252-81
UL 508
IEC/EN 61131-2
IEC/EN 61000-6-2
Catalog Notes
Base module for the gateway supply (with XN‑BR-24V DC-D)
Model Code
XN-P4S-SBBC
Features & Functions
Fitted with:
Pluggable modules, others
Power supply
Pluggable modules, central modules
Power supply
Pluggable modules, central modules
General
Degree of protection
IP20
Mounting method
Rail mounting possible
Number of connection levels
4
Type
XI/ON slice card base module
Used with
XN-PF-120/230VAC-D
XN-BR-24VDC-D
XN-PF-24VDC-D
XN-BR-24VDC-D
XN-PF-24VDC-D
Voltage type
DC
Ambient conditions, mechanical
Drop and topple
According to IEC 60068-2-31, free fall according to IEC 60068-2-32
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
Continuous according to IEC/EN 60068-2-29
Continuous according to IEC/EN 60068-2-29
Vibration resistance
According to IEC/EN 60068-2-6
Climatic environmental conditions
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
55 °C
Environmental conditions
Harmful gasses - SO2: 10 ppm (relative humidity < 75%, no condensation)
Harmful gasses - H2S: 1 ppm (relative humidity < 75%, no condensation)
Harmful gasses - H2S: 1 ppm (relative humidity < 75%, no condensation)
Relative humidity
5 - 95 % (indoor, Level RH-2, non-condensing for storage at 45°C)
Electro magnetic compatibility
Air discharge
Air/contact discharge according to IEC/EN 61000-4-2
Burst impulse
According to IEC/EN 61000-4-4
Electromagnetic fields
According to IEC EN 61100-4-2
Emitted interference
30 - 230 MHz (radiated, high frequency, according to EN 55016-2-3)
230 - 1000 MHz (radiated, high frequency, according to EN 55016-2-3)
230 - 1000 MHz (radiated, high frequency, according to EN 55016-2-3)
Radiated RFI
IEC/EN 61100-4-6
Surge rating
According to IEC/EN 61000-4-5 Level 4
Voltage dips
According to EN 61131-2 (Voltage fluctuations/voltage dips)
Terminal capacities
Terminal capacity
0.5 - 1.5 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
0.5 - 1.5 mm², flexible without ferrule, H07V-K
0.5 - 1.5 mm², with ferrules without plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
0.5 - 2.5 mm², solid, H07V-U
0.5 - 1.5 mm², flexible without ferrule, H07V-K
0.5 - 1.5 mm², with ferrules without plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
0.5 - 2.5 mm², solid, H07V-U
Gauge pin
A1 (according to IEC/EN 60947-1)
Stripping length (main cable)
8 mm
Communication
Connection
Connection to C rail
Connection type
Spring-loaded/screw terminal, Connection design in TOP direction
Number of slots
1
Input/Output
Input current at AC - max
0 A
Input voltage at AC 50 Hz - min
0 V
Input voltage at AC 50 Hz - max
0 V
Input voltage at DC - min
0 V
Input voltage at DC - max
0 V
Output current at AC, 50 Hz - max
0 A
Output voltage at AC 50 Hz - max
0 V
Output voltage at DC - min
0 V
Output voltage at DC - max
0 V
Safety
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Through optocoupler: yes
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| con alimentazione elettrica integrata (EF003338) | Sì |
| tensione d'entrata AC 50 Hz (EF007118) | 0 V |
| tensione d'entrata AC 60 Hz (EF007119) | 0 V |
| tensione d'entrata DC (EF007120) | 0 V |
| tipo di tensione d'ingresso (EF003033) | DC |
| corrente d'entrata max. AC 50 Hz (EF007360) | 0 A |
| corrente d'entrata max. AC 60 Hz (EF007361) | 0 A |
| corrente d'entrata max. DC (EF007362) | 0 A |
| tensione d'uscita AC 50 Hz (EF006999) | 0 V |
| tensione d'uscita AC 60 Hz (EF007000) | 0 V |
| tensione d'uscita DC (EF007001) | 0 V |
| tipo di tensione d'uscita (EF008222) | DC |
| corrente d'uscita max. AC 50 Hz (EF007351) | 0 A |
| corrente d'uscita max. AC 60 Hz (EF007352) | 0 A |
| corrente d'uscita max. DC (EF007353) | 0 A |
| componenti del sistema (EF004118) | Sì |
| numero di slot (EF003077) | 1 |
| con gruppi da innesto, I/O digitali (EF003078) | No |
| con gruppi da innesto, I/O analogici (EF003079) | No |
| con gruppi da innesto, moduli di comunicazione (EF003080) | No |
| con gruppi da innesto, moduli funzionali e tecnologici (EF003081) | No |
| con gruppi da innesto, moduli centrali (EF003082) | Sì |
| con gruppi da innesto, altri (EF003083) | Sì |
| montaggio su guida portante possibile (EF003972) | Sì |
| montaggio a parete/diretto possibile (EF007020) | No |
| montaggio frontale possibile (EF007016) | No |
| montaggio su rack possibile (EF007018) | No |
| adatto per funzioni di sicurezza (EF001597) | No |
| SIL secondo IEC 61508 (EF009889) | senza |
| livello di performance secondo EN ISO 13849-1 (EF007399) | senza |
| risorsa corrispondente (Ex ia) (EF004141) | No |
| risorsa corrispondente (Ex ib) (EF004142) | No |
| categoria di protezione antideflagrante per gas (EF003997) | senza |
| categoria di protezione antideflagrante per polvere (EF003998) | senza |
| larghezza (EF000008) | 12.6 mm |
| altezza (EF000040) | 49.9 mm |
| profondità (EF000049) | 128.9 mm |
