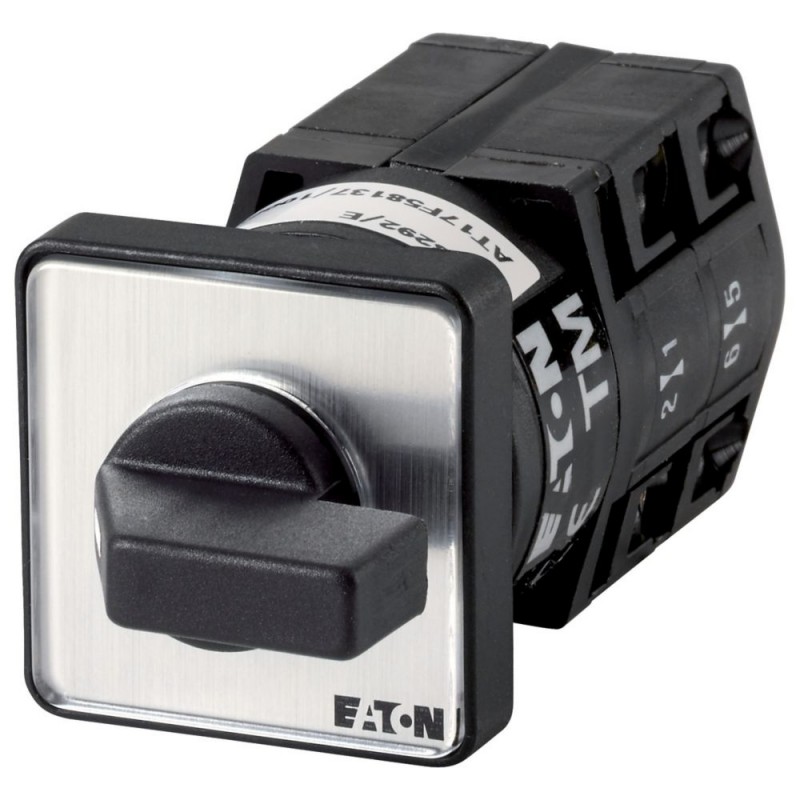

TM-2-15432/E 027418 Y7-27418 EATON ELECTRIC commutatore, Contatti: 4, 10 A, targhetta frontale: HAND-0-AUTO,.. Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

TM-2-15432/E 027418 Y7-27418 EATON ELECTRIC commutatore, Contatti: 4, 10 A, targhetta frontale: HAND-0-AUTO,..

TM-2-15432/E

027418

Y7-27418

EATON-MOELLER

commutatore, Contatti: 4, 10 A, targhetta frontale: HAND-0-AUTO, 60 °, permanente, da incasso

Interruttore Interruttore a 4 poli 10 A Piastra indicatrice: HAND-0-AUTO 60

Eaton Moeller® series TM Changeoverswitches, TM, 10 A, flush mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, With 0 (Off) position, HAND-0-AUTO, Design number 15432

Interruttore di commutazione, Gamma prodotti: Interruttori di comando, Norme: IEC/EN 60947, VDE 0660, CSA, UL, Interruttore di comando secondo IEC/EN 60947-5-1, Interruttore ausiliario secondo IEC/EN 60947-5-1, Riferimento gruppo: TM, con impugnatura nera e piastra frontale, Numero poli: 4, Grado di protezione: Frontale IP65, Design: montaggio ad incasso, Angolo di commutazione: 60°, Potenza di commutazione: permanente, In posizione 0 (Off), 2 unità(i) di contatto(i), corrente nominale ininterrotta: Iu= 10 A, frontalino: HAND-0-AUTO

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Switch di controllo

Sezionatori e interruttori a camme

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $88.78
Prezzo unitario: $88.78
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
027418
EAN
4015080274186
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.04 kg
Certifications
IEC/EN 60947-3
IEC/EN 60947-5-1
UL
CSA
UL 508
UL Category Control No.: NLRV
IEC/EN 60947
UL report applies to both US and Canada
Certified by UL for use in Canada
CSA-C22.2 No. 94
CE
CSA-C22.2 No. 14-05
UL File No.: E36332
VDE 0660
Model Code
TM-2-15432/E

Specifiche del prodotto

Type
Changeover switch
Actuator function
With 0 (Off) position
Maintained
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
UV resistance only in connection with protective shield.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Black thumb grip and front plate
0 (off) position
Operating frequency
1200 Operations/h
Pollution degree
3
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Rated impulse withstand voltage (Uimp)
4000 V AC
Rated uninterrupted current (Iu)
10 A
Static heat dissipation, non-current-dependent Pvs
0 W
Switching angle
60 °
Width in number of modular spacings
0
Product category
Control switches
Number of poles
Two-pole
Device construction
Built-in device
Switch type
Reverser
Actuator type
Toggle
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Assigned motor power at 115/120 V, 60 Hz, 1-phase
0.33 HP
Assigned motor power at 115/120 V, 60 Hz, 3-phase
0.75 HP
Assigned motor power at 230/240 V, 60 Hz, 1-phase
0.75 HP
Assigned motor power at 230/240 V, 60 Hz, 3-phase
1 HP
Assigned motor power at 277 V, 60 Hz, 1-phase
0.75 HP
Equipment heat dissipation, current-dependent Pvid
0 W
Mounting position
As required
Mounting method
Flush mounting
Degree of protection
IP65
Overvoltage category
III
Control circuit reliability
1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)
Degree of protection (front side)
IP65
NEMA 12
Number of contacts
4
Suitable for
Front mounting
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.15 W
Number of contact units
2
Front shield size
48x48 mm
Screw size
M2.5, Terminal screw
Inscription
" HAND-0-AUTO "
Lifespan, mechanical
1,000,000 Operations
Number of switch positions
3
Switching capacity (auxiliary contacts, general use)
10A, IU, (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
A300 (UL/CSA)
Rated operating voltage (Ue) at AC - max
500 V
Rated operational current (Ie) at AC-21, 440 V
10 A
Switching capacity (main contacts, general use)
10 A, Rated uninterrupted current max. (UL/CSA)
Rated operational current for specified heat dissipation (In)
10 A
Rated operational power at AC-23A, 400 V, 50 Hz
3 kW
Terminal capacity (flexible with ferrule)
1 x 1.0 mm², ferrules to DIN 46228
2 x 1.0 mm², ferrules to DIN 46228
Terminal capacity (flexible)
2 x 1.5 mm²
1 x 1.5 mm²
Short-circuit protection rating
10 A gG/gL, Fuse, Contacts
Terminal capacity (solid/flexible with ferrule AWG)
14
Terminal capacity (solid/stranded)
1 x 1.5 mm²
2 x 1,5 mm²
Tightening torque
3.5 lb-in, Screw terminals
0.4 Nm, Screw terminals
Uninterrupted current
Rated uninterrupted current Iu is specified for max. cross-section.
Design
15432

ETIM for 027418 Apparecchi elettrici a bassa tensione (EC002611)
Caratteristica Valore
tipo di interruttore (EF003496) commutatore
numero di poli (EF001391) 2
max. tensione d'esercizio nominale Ue per AC (EF007355) 500 V
corrente permanente nominale Iu (EF001389) 10 A
numero di posizioni di commutazione (EF000231) 3
con posizione zero (EF001416) Sì
con ritorno in posizione zero (EF002428) No
tipologia costruttiva dell'apparecchio (EF008240) apparecchio da incasso
numero di unità modulari (EF002950) 0
adatto per fissaggio a pavimento (EF007243) No
adatto per fissaggio frontale (EF007246) Sì
adatto per montaggio distributore (EF007262) No
adatto per costruzione intermedia (EF007264) No
apparecchio completo nella cassa (EF007317) No
tipo di elemento di azionamento (EF006976) manetta
dimensione della targa frontale (EF007176) 48×48 mm
grado di protezione (IP), lato frontale (EF003118) IP65
indice di protezione (NEMA), lato frontale (EF011961) 12
