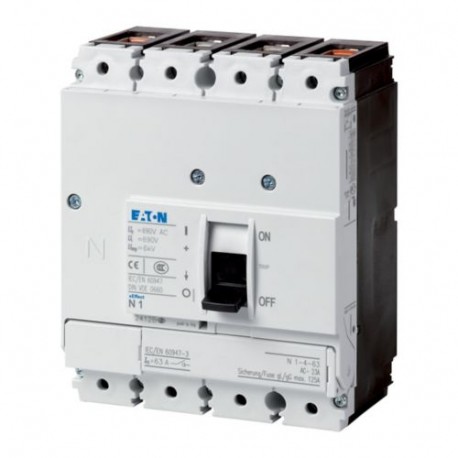

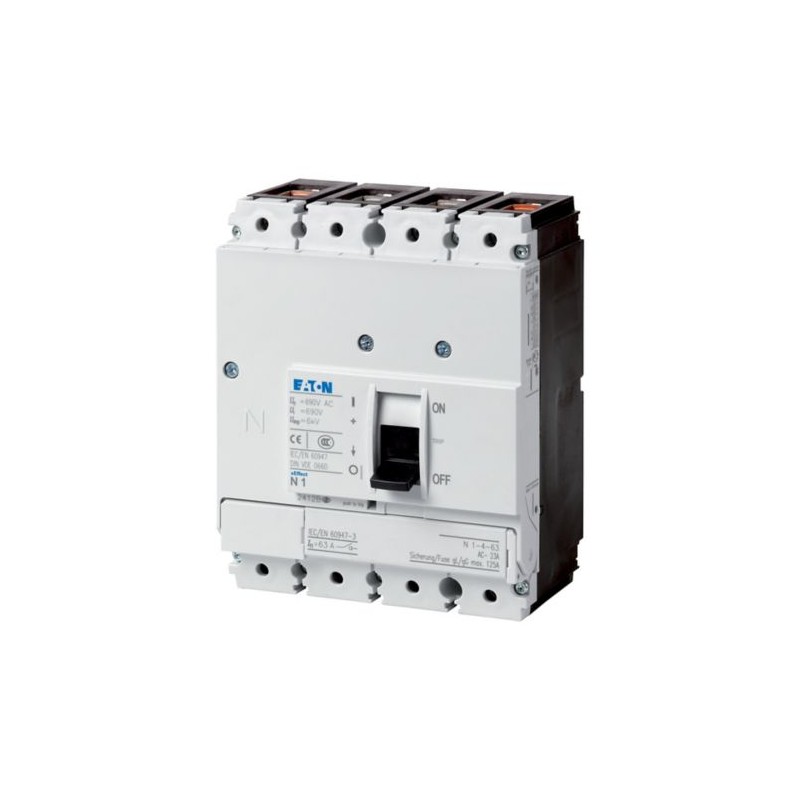

PN1-4-100 266000 0004358828 EATON ELECTRIC Sezionatore di potenza 4p, 100A
PN1-4-100
266000
0004358828
EATON-MOELLER
Sezionatore di potenza 4p, 100A
Sezionatore interno PN, 4P, 100A
Eaton Moeller series NZM - Molded Case Circuit Breaker. Switch-disconnector 4p, 100A
apparecchi elettrici a bassa tensione > Sezionatore
Interruttori automatici con custodia modellata NZM
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Dettagli
▲General specifications
Product Name
Eaton Moeller series NZM switch-disconnector
Catalog Number
266000
EAN
4015082660000
Product Length/Depth
88 mm
Product Height
145 mm
Product Width
120 mm
Product Weight
1.077 kg
Compliances
RoHS conform
Certifications
IEC/EN 60947
IEC
IEC
Model Code
PN1-4-100
Dati tecnici - elettrici
Voltage rating
690 V - 690 V
Rated operating voltage (Ue) at AC - max
690 V
Rated insulation voltage (Ui)
690 V
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
6000 V
Rated operational current
160 A (690 V AC-22/23A, making and breaking capacity)
160 A (415 V AC-22/23A, making and breaking capacity)
160 A (415 V AC-22/23A, making and breaking capacity)
Rated permanent current at AC-21, 400 V
0 A
Rated conditional short-circuit current with back-up fuse
80 kA at 690 V
100 kA at 400/415 V
100 gG/gL
100 kA at 400/415 V
100 gG/gL
Rated conditional short-circuit current with downstream fuse
100 gG/gL
100 kA at 400/415 V
10 kA at 690 V
100 kA at 400/415 V
10 kA at 690 V
Rated short-time withstand current (Icw)
2 kA
Rated short-time withstand current (t = 0.3 s)
2 kA
Rated short-time withstand current (t = 1 s)
2 kA
Amperage Rating
100 A
Rated operating frequency
50 Hz
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
2.8 kA
Rated operating power at AC-3, 400 V
0 kW
Rated operating power at AC-23, 400 V
55 kW
Switching power at 400 V
0 kW
Short-circuit protective device fuses - max
125 A gL
Electrical connection type of main circuit
Frame clamp
Isolation
500 V AC (between auxiliary contacts and main contacts)
300 V AC (between the auxiliary contacts)
300 V AC (between the auxiliary contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
1000 operations at 690 V AC-23A
1000 operations at 415 V AC-23A
10000 operations at 415 V AC-1
10000 operations at 400 V AC-1
7500 operations at 690 V AC-1
1000 operations at 400 V AC-23A
1000 operations at 415 V AC-23A
10000 operations at 415 V AC-1
10000 operations at 400 V AC-1
7500 operations at 690 V AC-1
1000 operations at 400 V AC-23A
Direction of incoming supply
As required
Dati tecnici - comunicazione
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
6000 V
Rated operational current
160 A (690 V AC-22/23A, making and breaking capacity)
160 A (415 V AC-22/23A, making and breaking capacity)
160 A (415 V AC-22/23A, making and breaking capacity)
Rated permanent current at AC-21, 400 V
0 A
Rated permanent current at AC-23, 400 V
0 A
Rated conditional short-circuit current with back-up fuse
80 kA at 690 V
100 kA at 400/415 V
100 gG/gL
100 kA at 400/415 V
100 gG/gL
Rated conditional short-circuit current (Iq)
0 kA
Rated conditional short-circuit current with downstream fuse
100 gG/gL
100 kA at 400/415 V
10 kA at 690 V
100 kA at 400/415 V
10 kA at 690 V
Rated short-time withstand current (Icw)
2 kA
Rated short-time withstand current (t = 0.3 s)
2 kA
Rated short-time withstand current (t = 1 s)
2 kA
Amperage Rating
100 A
Rated operating frequency
50 Hz
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
2.8 kA
Rated operating power at AC-3, 400 V
0 kW
Rated operating power at AC-23, 400 V
55 kW
Switching power at 400 V
0 kW
Short-circuit protective device fuses - max
125 A gL
Electrical connection type of main circuit
Frame clamp
Isolation
500 V AC (between auxiliary contacts and main contacts)
300 V AC (between the auxiliary contacts)
300 V AC (between the auxiliary contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
1000 operations at 690 V AC-23A
1000 operations at 415 V AC-23A
10000 operations at 415 V AC-1
10000 operations at 400 V AC-1
7500 operations at 690 V AC-1
1000 operations at 400 V AC-23A
1000 operations at 415 V AC-23A
10000 operations at 415 V AC-1
10000 operations at 400 V AC-1
7500 operations at 690 V AC-1
1000 operations at 400 V AC-23A
Direction of incoming supply
As required
Dati tecnici - meccanici
Mounting Method
Intermediate mounting
Fixed
Built-in device fixed built-in technique
Distribution board installation
Ground mounting
Fixed
Built-in device fixed built-in technique
Distribution board installation
Ground mounting
Degree of protection
IP20 (basic protection type, in the area of the HMI devices)
Other
Other
Degree of protection (IP), front side
IP66 (with door coupling rotary handle)
IP20
IP40 (with insulating surround)
IP20
IP40 (with insulating surround)
Degree of protection (terminations)
IP10 (tunnel terminal)
IP00 (terminations, phase isolator and band terminal)
IP00 (terminations, phase isolator and band terminal)
Protection against direct contact
Finger and back-of-hand proof to DIN EN 50274/VDE 0106 part 110
Shock resistance
20 g (half-sinusoidal shock 20 ms)
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Number of switches
1
Handle color
Black
Switch positions
I, 0
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Lifespan, mechanical
20000 operations
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PN1-4-100 0004358828 266000 ES_266004.pdf | 4 Mbytes |
 |
