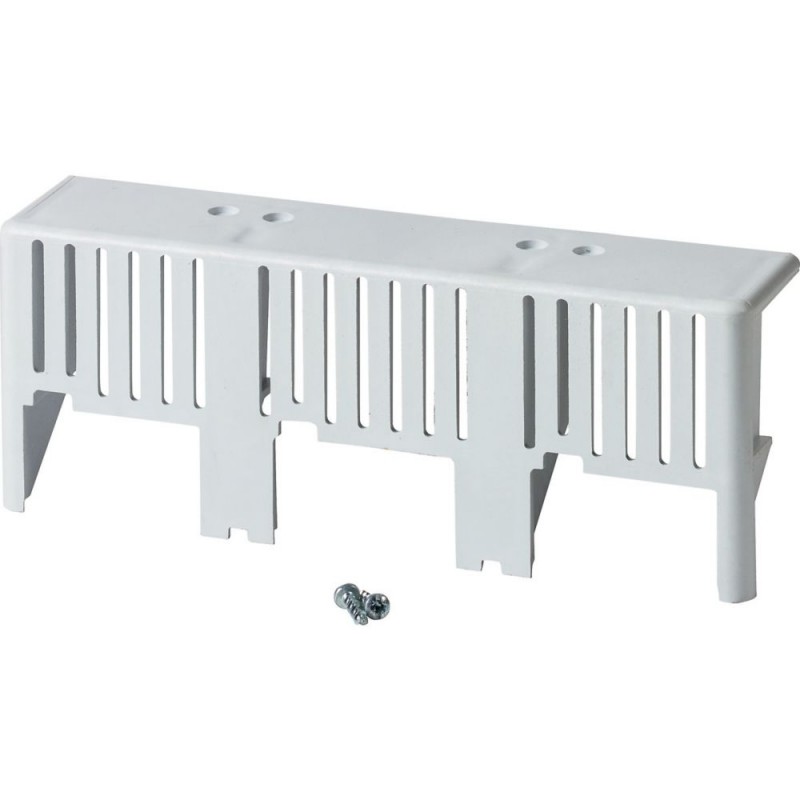

EATON - MOELLER EML27 144549 Y7-144549 - Immagine 1

Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica per i dettagli.

EML27 144549 Y7-144549 EATON ELECTRIC Coprimorsetti (si richiedono strumenti di misura in pollici) per avvia..

Riferimento: EML27

Codice: 144549

Numero di catalogo: Y7-144549

Produttore: EATON - MOELLER

Descrizione:

Coprimorsetti (si richiedono strumenti di misura in pollici) per avviatore statico S8x1+ dimensioni T, U
Strumento per la copertura del terminale con misure in pollici richieste per
Eaton EML Terminal cover (tools with inch measurements required) for soft starter S8x1+ sizes T, U
Coperchio di ricambio S8x1+T/U

Categorie:

  • Apparecchi elettrici a bassa tensione > Accessori per controllo elettronico del motore e dispositivo di protezione
  • EATON - MOELLER > Softstarter ad alte prestazioni

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON - MOELLER

  • Dettagli
  • ETIM
  • PDF
  • Recensioni
Garanzia, riparazione e restituzione.

Prezzo unitario: 20,78 €

Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Calcola prezzo per quantità

QuantitàPrezzo

Scadenza standard: 3 settimane.

  • Questi tempi di consegna sono una stima e possono leggermente variare quando l'ordine sarà elaborato.

VISTI DI RECENTE

DETTAGLI

General specifications

Product Name
Eaton S811 cover
Catalog Number
144549
EAN
4015081410590
Product Length/Depth
307.34 mm
Product Height
78.74 mm
Product Width
127 mm
Product Weight
0.345 kg
Certifications
CSA Class No.: 6223-02
UL
UL File No.: E202571
CSA
UL508
UL Category Control No.: NMFT
CSA-C22.2 No. 65
CSA File No.: LR 353
Model Code
EML27

Informazioni generali

Accessory/spare part type
Other

Condizioni ambientali e climatiche

Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-30 °C

Verifica di progetto

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 144549 Apparecchi elettrici a bassa tensione (EC002615)

Nome caratteristicatipo di accessori/pezzi di ricambio (EF000215)
Valore caratteristicaaltro
Nome caratteristicaaccessorio (EF013236)
Valore caratteristicaSì
Nome caratteristicapezzo di ricambio (EF013237)
Valore caratteristicaNo
