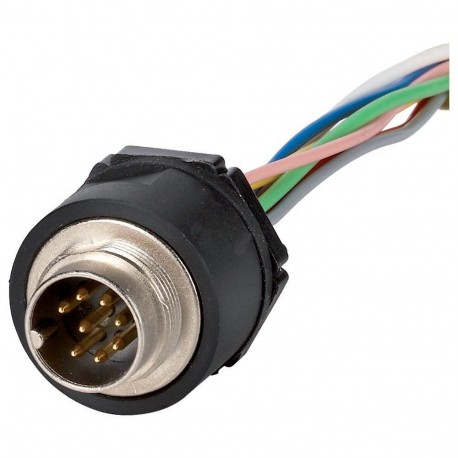

SWD4-SM8-20 116032 Y7-116032 EATON ELECTRIC Foro passante, SmartWire-DT, connettore, M20, per connettore SWD.. Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

SWD4-SM8-20 116032 Y7-116032 EATON ELECTRIC Foro passante, SmartWire-DT, connettore, M20, per connettore SWD..

SWD4-SM8-20

116032

Y7-116032

EATON-MOELLER

Foro passante, SmartWire-DT, connettore, M20, per connettore SWD4-SF8 per cavo tondo

Cavo passante SWDT M20 maschio a 8 poli 0,15 m

Eaton SWD4 Housing bushing socket, SmartWire-DT, plug, M20, for SWD4-SF8 socket for round cable

Boccola della custodia per montaggio ad incasso in M22-I...scatola di superficie..., spina a 8 poli per il collegamento a SWD4-SF8-67(W), grado di protezione della custodia IP67 8 cavi preconfezionati per il collegamento alla scheda M22-SWD-I...

Maggiori dettagli


sistemi di controllo industriali (PLC) > accessori per controlli

Smartwire Darwin

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

* Questo articolo potrebbe essere obsoleto. Se sei interessato chiedete noi un preventivo e ti diremo se ci sono unità disponibili. Se non ce ne sono più, un nostro tecnico cercherà un'alternativa fornibile con caratteristiche simili.

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Comprati di solito insieme

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton SWD4 Accessory Housing bushing socket
Catalog Number
116032
EAN
4015081157723
Product Length/Depth
144 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
0.026 kg
Certifications
UL File No.: E29184
CSA Class No.: 3211-07
UL
UL Category Control No.: NKCR
CSA
CSA File No.: 2324643
EN 50178
IEC/EN 61131-2
Catalog Notes
not relevant
Model Code
SWD4-SM8-20

Specifiche del prodotto

10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Climatic proofing
Dry heat to IEC 60068-2-2
Damp heat, constant, to IEC 60068-2-3
Air pressure
795 - 1080 hPa (operation)
Environmental conditions
Condensation: prevent with appropriate measures
Mounting position
As required
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Electrical accessory type
Plug
Connection type
Connection 2: SWD-OUT, 8 cables
Connection 1: M20 Plug, 8-pole
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Degree of protection
IP20 (according to IEC/EN 60529, EN 50178, VBG 4)
IP20
Mechanical accessory type
Other
Number of insertion cycles
500
Operating temperature - max
55 °C
Operating temperature - min
-25 °C
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
SmartWire-DT accessories

ETIM for 116032 Controllori logici programmabili (PLC) (EC002584)
Caratteristica Valore
tipo di accessori/pezzi di ricambio elettrici (EF005722) spina
tipo di accessori/pezzi di ricambio meccanici (EF005994) altro
accessorio (EF013236) Sì
pezzo di ricambio (EF013237) No
