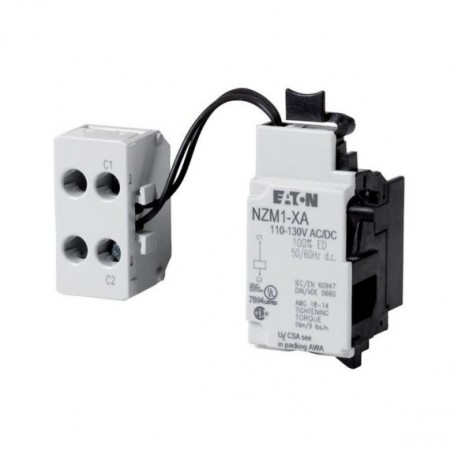

NZM1-XA24AC/DC 259708 Y7-259708 EATON ELECTRIC Sganciatore a lancio di corrente, 24VAC/DC
NZM1-XA24AC/DC
259708
Y7-259708
EATON-MOELLER
Sganciatore a lancio di corrente, 24VAC/DC
Bobina di sgancio, 24VAC/DC
Eaton Moeller series NZM - Molded Case Circuit Breaker. Shunt release, 24VAC/DC, 1
Gli accessori opzionali per la serie di interruttori automatici NZM offrono un'ampia gamma di possibilità di applicazione per l'uso in tutto il mondo. I gruppi funzionali modulari rendono il montaggio flessibile e semplice.
Apparecchi elettrici a bassa tensione > Sganciatore (per interruttore di potenza)
Interruttori automatici con custodia modellata NZM
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Comprati di solito insieme
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller series NZM release
Catalog Number
259708
EAN
4015082597085
Product Length/Depth
37 mm
Product Height
66 mm
Product Width
32 mm
Product Weight
0.074 kg
Compliances
IEC
UL/CSA
RoHS conform
UL/CSA
RoHS conform
Certifications
UL489
CSA certified
CSA (Class No. 1437-01)
CSA (File No. 22086)
CSA-C22.2 No. 5-09
UL (Category Control Number DIHS)
CE marking
IEC60947
UL (File No. E140305)
UL listed
CSA certified
CSA (Class No. 1437-01)
CSA (File No. 22086)
CSA-C22.2 No. 5-09
UL (Category Control Number DIHS)
CE marking
IEC60947
UL (File No. E140305)
UL listed
Model Code
NZM1-XA24AC/DC
Specifiche del prodotto
Used with
NZM1(-4), N(S)1(-4)
Type
Special features
- Switches are tripped by a voltage pulse or by the application of uninterrupted voltage.
- If the shunt trip is live, contact with the circuit breaker’s primary contacts is prevented when switched on.
- Shunt releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XU... undervoltage release.
Voltage rating
0.7 - 1.1 x Us
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Electric connection type
Screw connection
Frame
NZM1
Frequency rating
50 Hz / 60 Hz / 200 Hz / 400 Hz, DC (shunt release)
Minimum command time - max
15 ms
Minimum command time - min
10 ms
Number of contacts (normally open contacts)
0
Reaction time
20 ms
Pick-up power consumption (shunt release)
2.5 VA/W
Rated control supply voltage
24 V AC/DC
Rated control supply voltage (Us) at AC, 50 Hz - max
24 V
Rated control supply voltage (Us) at AC, 50 Hz - min
24 V
Rated control supply voltage (Us) at AC, 60 Hz - max
24 V
Rated control supply voltage (Us) at AC, 60 Hz - min
24 V
Suitable for
Off-load switch
Connection type
With terminal block on the left-hand switch side
Voltage type
AC/DC
Terminal capacity (solid/flexible conductor)
0.75 mm² - 2.5 mm² (1x) for undervoltage releases, off-delayed with ferrule
0.75 mm² - 2.5 mm² (2x) at shunt release with ferrule
18 - 14 AWG (1x) for undervoltage releases, off-delayed
0.75 mm² - 2.5 mm² (2x) for undervoltage releases, off-delayed with ferrule
18 - 14 AWG (2x) at shunt release
18 - 14 AWG (1x) at shunt release
18 - 14 AWG (2x) for undervoltage releases, off-delayed
0.75 mm² - 2.5 mm² (1x) at shunt release with ferrule
0.75 mm² - 2.5 mm² (2x) at shunt release with ferrule
18 - 14 AWG (1x) for undervoltage releases, off-delayed
0.75 mm² - 2.5 mm² (2x) for undervoltage releases, off-delayed with ferrule
18 - 14 AWG (2x) at shunt release
18 - 14 AWG (1x) at shunt release
18 - 14 AWG (2x) for undervoltage releases, off-delayed
0.75 mm² - 2.5 mm² (1x) at shunt release with ferrule
Rated control supply voltage (Us) at DC - max
24 V
Rated control supply voltage (Us) at DC - min
12 V
Voltage rating at AC (x Us) - max
1.1
Voltage rating at AC (x Us) - min
.7
Number of contacts (normally closed contacts)
0
Number of contacts (change-over contacts)
0
Undelayed short-circuit release - min
0 A
Undelayed short-circuit release - max
0 A
Time on duty - max
∞
Rated control voltage (relay contacts)
24 V DC
24 V AC
24 V AC
| Caratteristica | Valore |
|---|---|
| tensione di alimentazione pilota nominale AC 50 Hz (EF003978) | 24 V |
| tensione di alimentazione pilota nominale AC 60 Hz (EF003979) | 24 V |
| tensione di alimentazione pilota nominale DC (EF003980) | 12 V |
| tipo di tensione per l'azionamento (EF008242) | AC/DC |
| valore iniziale campo di regolaz. dell'attivatore corto circuito non ritardato (EF008187) | 0 A |
| valore finale campo di regolaz. dell'attivatore di corto circuito non ritardato (EF008188) | 0 A |
| tipo di collegamento elettrico (EF003961) | raccordo a vite |
| numero di contatti di chiusura (EF008256) | 0 |
| numero di contatti di riposo (EF008255) | 0 |
| numero di contatti invertitori (EF008257) | 0 |
| adatto per disgiuntore (EF005863) | No |
| adatto per interruttore di carico (EF001543) | Sì |
| adatto per salvamotore (EF005826) | No |
| adatto per relè di sovraccarico (EF001545) | No |
