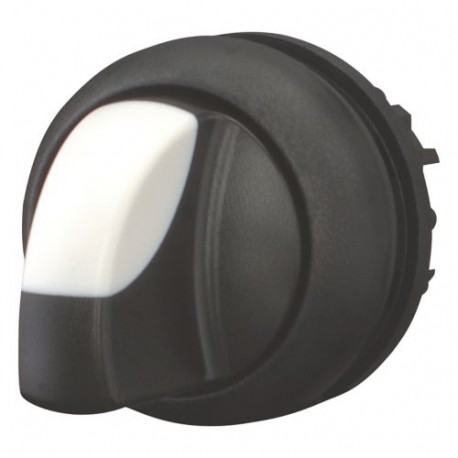

M22S-WRK3 216873 Y7-216873 EATON ELECTRIC Selettore, leva, 3 posizioni, nero, permanente

Riferimento: M22S-WRK3

Codice: 216873

Numero di catalogo: Y7-216873

Produttore: EATON - MOELLER

Descrizione:

Selettore, leva, 3 posizioni, nero, permanente
Leva Selettore Corta Interbloccata 3 Posizioni Ghiera Nera
Eaton Moeller® series M22 Changeover switch, RMQ-Titan, With thumb-grip, maintained, 3 positions, Bezel: black
Interruttore, Gamma prodotti: RMQ-Titan, Unità singola, Versione: Con impugnatura a pollice, permanente, 3 posizioni, Grado di protezione: IP66, Mascherina: nera, Collegamento a SmartWire-DT: sì, con collegamenti SWD-RMQ, Dimensioni frontali: 29,7, Istruzioni: Funzione di mantenimento/ritorno a molla, sostituibile con pezzi di codifica M22-XC-Y, con ponte a pistone per contatto centrale, Norme: IEC/EN 60947, VDE 0660, Grado di protezione: IP66

Categorie:

  • Apparecchi elettrici a bassa tensione > Switch da quadro
  • EATON - MOELLER > Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON - MOELLER

  • Dettagli
  • ETIM
  • PDF
  • Recensioni
Garanzia, riparazione e restituzione.

Prezzo totale: 53,29 €

Prezzo unitario: 10,657 €

Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Calcola prezzo per quantità

QuantitàPrezzo

Scadenza standard: 5 giorni.

  • Questi tempi di consegna sono una stima e possono leggermente variare quando l'ordine sarà elaborato.

VISTI DI RECENTE

DETTAGLI

General specifications

Product Name
Eaton Moeller® series M22 Changeover switch
Catalog Number
216873
EAN
4015082168735
Product Length/Depth
46 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Compliances
CE Marked
Certifications
IEC 60947-5
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
EN 60947-5
UL 508
VDE
CSA File No.: 012528
CE
CSA-C22.2 No. 94-91
IEC/EN 60947
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL
UL Category Control No.: NKCR
UL File No.: E29184
VDE 0660
CSA
Model Code
M22S-WRK3

Features & Functions

Bezel color
Black
Bezel material
Plastic
Color
Black
Design
With thumb-grip
Fitted with:
Front ring
Plunger bridge for the middle contact
Functions
Stay-put/spring-return function, can be changed with coding parts M22-XC-Y

General

Accessories
Thumb grip
Degree of protection
NEMA 4X, 13
Degree of protection (front side)
IP66
Lifespan, mechanical
100,000 Operations
Opening diameter
22.5 mm
Operating frequency
2000 Operations/h
Operating torque
0.3 Nm
Product category
RMQ-Titan
Size
Front diameter: 29.7 mm
Switching angle
60 °
Type
Selector switch actuator

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Communication

Connection to SmartWire-DT
Yes
With SWD-RMQ connections

Actuator

Actuator color
Black
Actuator function
Maintained
Switching function latching
Actuator type
Toggle
Number of switch positions
3

Contacts

Force for positive opening - min
0 N

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 216873 Apparecchi elettrici a bassa tensione (EC000222)

Nome caratteristicanumero di posizioni di commutazione (EF000231)
Valore caratteristica3
Nome caratteristicatipo di elemento di azionamento (EF006976)
Valore caratteristicamanetta
Nome caratteristicaadatto per illuminazione (EF001142)
Valore caratteristicaNo
Nome caratteristicacolore dell'elemento di azionamento (EF007167)
Valore caratteristicanero
Nome caratteristicacolore della calotta del segnalatore luminoso (EF007165)
Valore caratteristicaaltro
Nome caratteristicatipo di lente (EF006253)
Valore caratteristicatondo
Nome caratteristicadiametro del foro (EF000079)
Valore caratteristica22.5 mm
Nome caratteristicalarghezza dell'apertura (EF004565)
Valore caratteristica0 mm
Nome caratteristicaaltezza dell'apertura (EF004778)
Valore caratteristica0 mm
Nome caratteristicafunzione di commutazione a bloccaggio (EF007447)
Valore caratteristicaSì
Nome caratteristicaa impulso (EF001407)
Valore caratteristicaNo
Nome caratteristicacon anello frontale (EF006014)
Valore caratteristicaSì
Nome caratteristicamateriale dell'anello frontale (EF005972)
Valore caratteristicamateriale sintetico
Nome caratteristicacolore dell'anello frontale (EF002429)
Valore caratteristicanero
Nome caratteristicagrado di protezione (IP), lato frontale (EF003118)
Valore caratteristicaIP66
Nome caratteristicaindice di protezione (NEMA) (EF011959)
Valore caratteristica4X, 13
