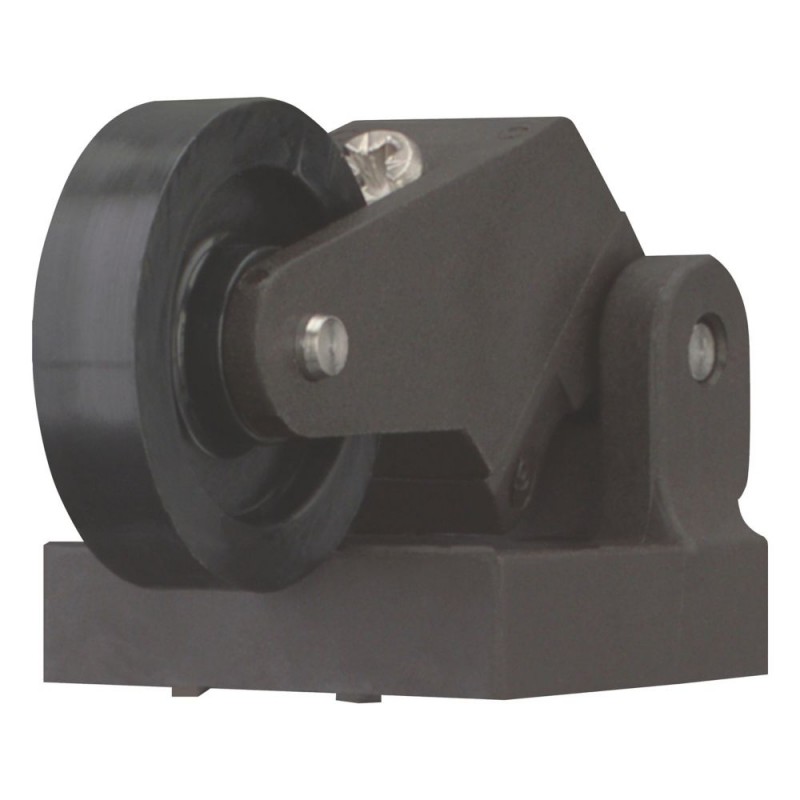

EATON - MOELLER LS-XLB 290178 Y7-290178 - Immagine 1

Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica per i dettagli.

LS-XLB 290178 Y7-290178 EATON ELECTRIC Leva a rotella, lunga

Riferimento: LS-XLB

Codice: 290178

Numero di catalogo: Y7-290178

Produttore: EATON - MOELLER

Descrizione:

Leva a rotella, lunga
Testa di azionamento; Leva a rulli; Lungo
Eaton Moeller® series LS Roller lever, large
Testa di controllo per interruttore di posizione LS-TITAN, IEC EN 60947-5-1, alto grado di protezione IP66, dispositivo per i mercati mondiali, sistema modulare, tecnologia di facile montaggio Le teste di controllo possono essere accoppiate in 4 direzioni e si adattano in modo semplice, rapido e sicuro utilizzando l'accessorio a baionetta.

Categorie:

  • sensori > Testa di azionamento per interruttori di posizione / interruttori a cerniera
  • EATON - MOELLER > Interruttori di posizione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON - MOELLER

  • Dettagli
  • ETIM
  • PDF
  • Recensioni
Garanzia, riparazione e restituzione.

Prezzo totale: 47,73 €

Prezzo unitario: 9,546 €

Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Calcola prezzo per quantità

QuantitàPrezzo

Scadenza standard: 5 giorni.

  • Questi tempi di consegna sono una stima e possono leggermente variare quando l'ordine sarà elaborato.

VISTI DI RECENTE

DETTAGLI

General specifications

Product Name
Eaton Moeller® series LS Roller lever
Catalog Number
290178
EAN
4015082901783
Product Length/Depth
33.5 mm
Product Height
45 mm
Product Width
31 mm
Product Weight
0.012 kg
Compliances
CE Marked
Certifications
IEC 60947-5
EN 60947-5
UL 508
CSA Std. C22.2 No. 14
CE
CSA
CSA-C22.2 No. 14
UL
IEC/EN 60947-5
CSA File No.: 012528
UL File No.: E29184
CSA Class No.: 3211-03
UL Category Control No.: NKCR
Catalog Notes
Large
Model Code
LS-XLB

Specifiche del prodotto

Type
Operating heads
Features
The operating head can be rotated 90° to enable adaptation to the specified approach direction
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Actuator type
Roller lever
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-40 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
Roller lever
Design
EN 50047 Form E

ETIM for 290178 Sensori (EC001483)

Nome caratteristicatipo di elemento di azionamento (EF006976)
Valore caratteristicaleva a rotella
