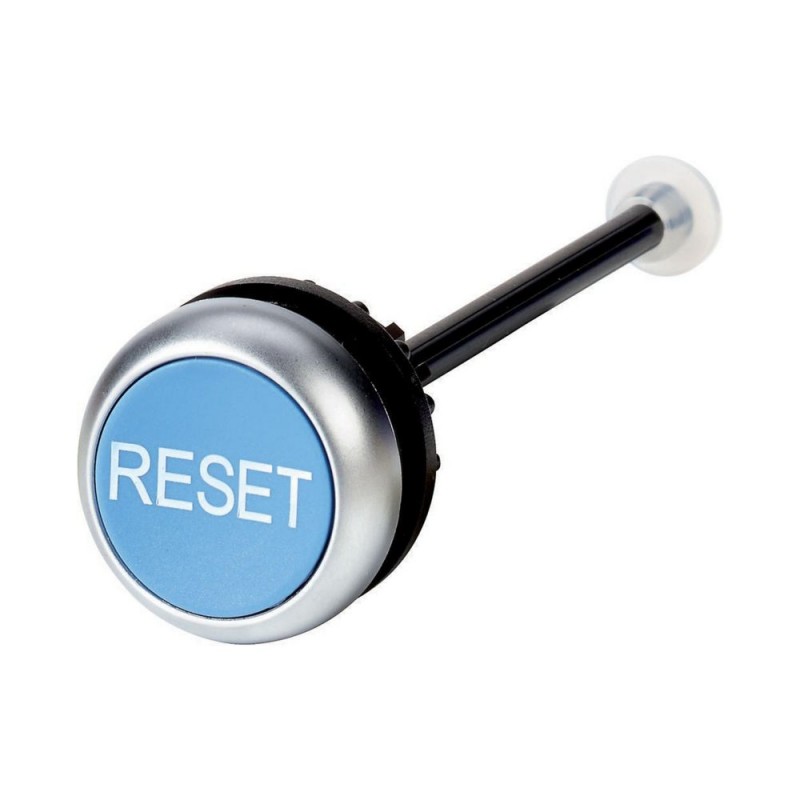

EATON - MOELLER M22-DZ-B-GB14 254834 Y7-254834 - Immagine 1

Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica per i dettagli.

M22-DZ-B-GB14 254834 Y7-254834 EATON ELECTRIC Pulsante di sblocco, azzurro , RESET

Riferimento: M22-DZ-B-GB14

Codice: 254834

Numero di catalogo: Y7-254834

Produttore: EATON - MOELLER

Descrizione:

Pulsante di sblocco, azzurro , RESET
Pulsante di sblocco blu RESET
Eaton Moeller® series M22 Release pushbutton, blue, Bezel: titanium, RESET
Pulsante di sblocco, Accessori funzione di base: Pulsanti di reset, Accessori: Pulsanti, Funzione: Per relè di sovraccarico chiusi, Per relè di sovraccarico chiusi, Diametro di montaggio: 22,3 mm, Diametro di montaggio: 22,3 mm, blu RESET, Anello frontale: Lunetta: titanio, Collegamento SmartWire-DT: no, Per l'uso con: ZW7..., ZE, Z5, ZB12, ZB32, ZB65, ZB150

Categorie:

  • Apparecchi elettrici a bassa tensione > Pulsante da quadro
  • EATON - MOELLER > Relè termici

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON - MOELLER

  • Dettagli
  • ETIM
  • PDF
  • Recensioni
Garanzia, riparazione e restituzione.

Prezzo totale: 79,42 €

Prezzo unitario: 7,942 €

Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Calcola prezzo per quantità

QuantitàPrezzo

Scadenza standard: 5 giorni.

  • Questi tempi di consegna sono una stima e possono leggermente variare quando l'ordine sarà elaborato.

VISTI DI RECENTE

DETTAGLI

General specifications

Product Name
Eaton Moeller® series M22 Accessory Release pushbutton
Catalog Number
254834
EAN
4015082548346
Product Length/Depth
120 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14
UL 508
EN 60947
IEC 60947
CE
CSA Class No.: 3211-03
UL
UL File No.: E29184
CSA
IEC/EN 60947
UL Category Control No.: NKCR
CSA-C22.2 No. 14
CSA File No.: 012528
Model Code
M22-DZ-B-GB14

Features & Functions

Bezel color
Chrome
Bezel material
Plastic
Features
Labelled
Fitted with:
Front ring

General

Degree of protection (front side)
NEMA 4X
IP67
Opening diameter
22 mm
Product category
Accessories
Type
Flat
Used with
ZB150
ZB32
ZE
Z5
ZB12
ZB65
ZW7...

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Communication

Connection to SmartWire-DT
No

Actuator

Actuator color
Blue
Actuator function
Spring-return

Contacts

Force for positive opening - min
0 N

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 254834 Apparecchi elettrici a bassa tensione (EC000221)

Nome caratteristicacolore del pulsante (EF000190)
Valore caratteristicablu
Nome caratteristicanumero di punti di comando (EF001372)
Valore caratteristica1
Nome caratteristicatipo di lente (EF006253)
Valore caratteristicatondo
Nome caratteristicadiametro del foro (EF000079)
Valore caratteristica22 mm
Nome caratteristicalarghezza dell'apertura (EF004565)
Valore caratteristica0 mm
Nome caratteristicaaltezza dell'apertura (EF004778)
Valore caratteristica0 mm
Nome caratteristicaforma del pulsante (EF001546)
Valore caratteristicapiatto
Nome caratteristicaadatto per illuminazione (EF001142)
Valore caratteristicaNo
Nome caratteristicacon copertura protettiva (EF005500)
Valore caratteristicaNo
Nome caratteristicaetichettato (EF001537)
Valore caratteristicaSì
Nome caratteristicafunzione di commutazione a bloccaggio (EF007447)
Valore caratteristicaNo
Nome caratteristicaa impulso (EF001407)
Valore caratteristicaSì
Nome caratteristicacon anello frontale (EF006014)
Valore caratteristicaSì
Nome caratteristicamateriale dell'anello frontale (EF005972)
Valore caratteristicamateriale sintetico
Nome caratteristicacolore dell'anello frontale (EF002429)
Valore caratteristicacromo
Nome caratteristicagrado di protezione (IP), lato frontale (EF003118)
Valore caratteristicaIP67
Nome caratteristicaindice di protezione (NEMA), lato frontale (EF011961)
Valore caratteristica4X
