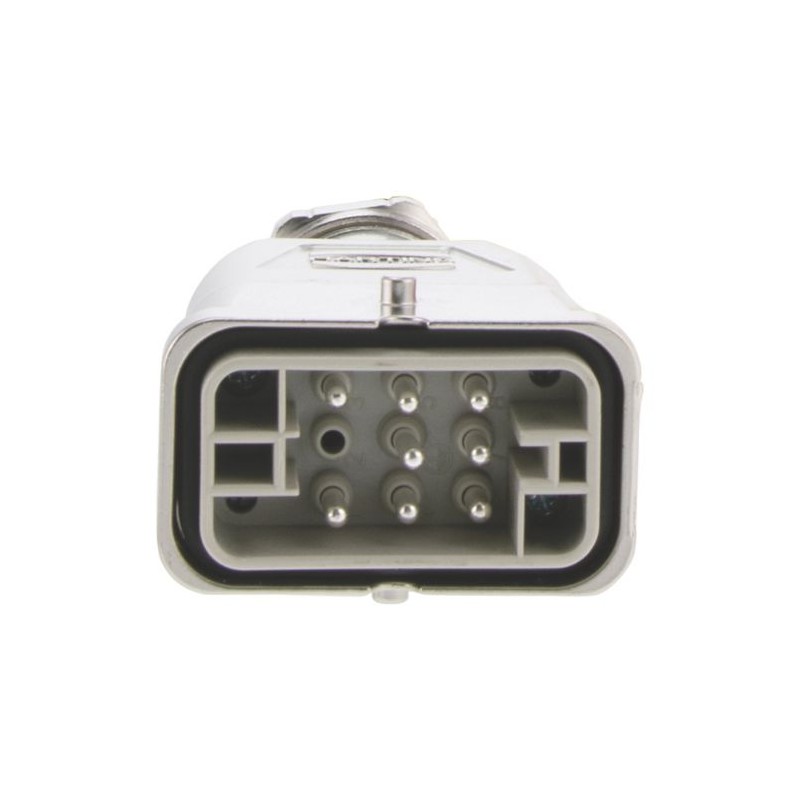

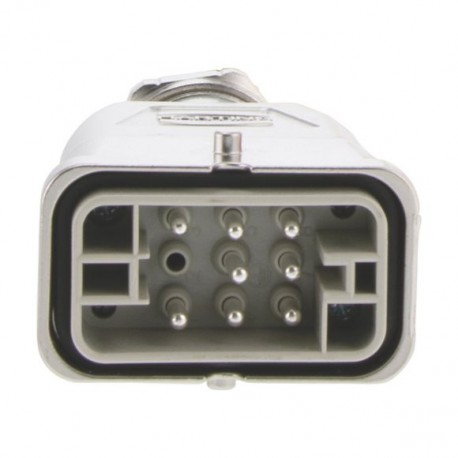

RASP-CM2-5M0 198281 Y7-198281 EATON ELECTRIC RASP-CM2-5M0 Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

RASP-CM2-5M0 198281 Y7-198281 EATON ELECTRIC RASP-CM2-5M0

RASP-CM2-5M0

198281

Y7-198281

EATON-MOELLER

RASP-CM2-5M0

Eaton Moeller® series Rapid Link 5-m motor cable RASP5

Cavo de motor de 5 m RASP5

Maggiori dettagli


Apparecchi elettrici a bassa tensione > accessori per controllo di frequenza

Avviatori Rapid Link

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $456.18
Prezzo unitario: $456.18
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series Rapid Link Accessory Motor cable
Catalog Number
198281
EAN
4015081958559
Product Length/Depth
5160 mm
Product Height
30 mm
Product Width
50 mm
Product Weight
1.7 kg
Certifications
EN 61684
IEC/EN 60529
DIN VDE 0110
Model Code
RASP-CM2-5M0

Features & Functions

Enclosure material
Metal
Functions
Connecting the speed controller to the motor
Material
Cable: Copper (Cu) flexible according to VDE 0295 Class 6
Outer casing halogen free
RAL-number
2003

General

Accessory/spare part type
Cable
Degree of protection
IP65
Flammability characteristics
Flame retardance, fire propagation: according to IEC 60332-2
Product Category
Accessories
Terminal capacity
4 x 1.5 + 2 x (2 x 0.75) mm² screened, Connection cable
Conductor cross-section, Contact pins: 4 x 1.5 + 4 x 0.75 mm², Metal housing with plug-in connection
Used with
RASP

Ambient conditions, mechanical

Environmental resistance
VDE 0472 Part 803 A/B (Resistance to oils and acids)

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
70 °C

Contacts

Contact material
Silver-plated copper

Cable

Outer cable diameter
9 - 13 mm
Permitted bending radius
10 x outer cable diameter

Design verification

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 198281 Apparecchi elettrici a bassa tensione (EC002025)
Caratteristica Valore
tipo di accessori/pezzi di ricambio (EF000215) cavo
accessorio (EF013236) Sì
pezzo di ricambio (EF013237) No

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 37 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
RASP-CM2-5M0 Y7-198281 198281 IT_198281.pdf 110 Kbytes RASP-CM2-5M0 Y7-198281 198281 IT_198281.pdf
