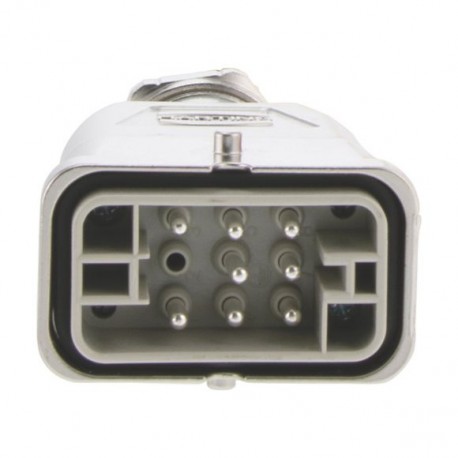

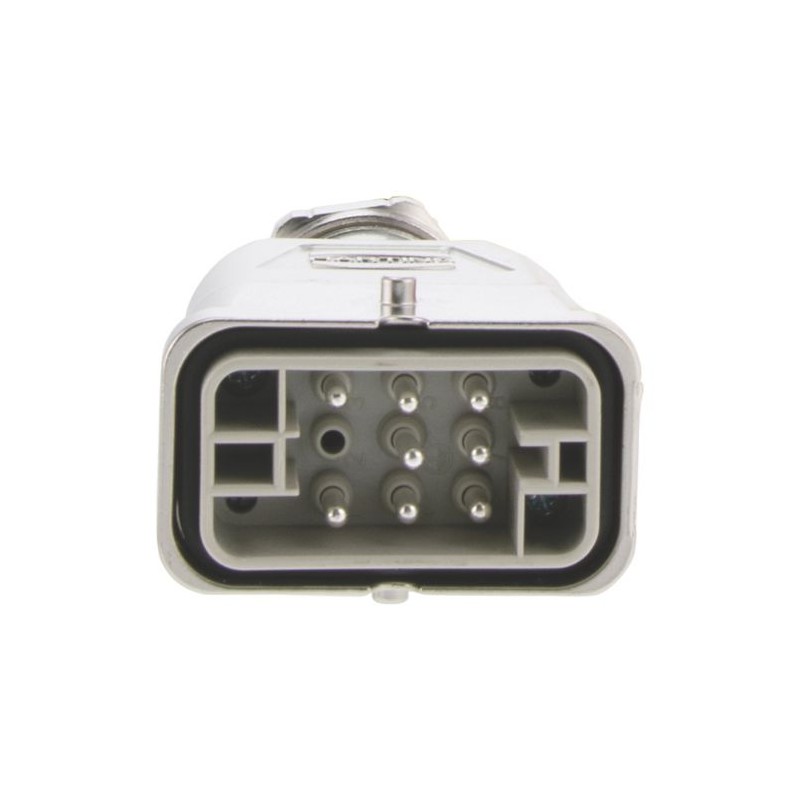

RASP-CM2-10M 198282 Y7-198282 EATON ELECTRIC RASP-CM2-10M
RASP-CM2-10M
198282
Y7-198282
EATON-MOELLER
RASP-CM2-10M
Eaton Moeller® series Rapid Link 10-m motor cable RASP5
Cable de motor de 10 m RASP5
Apparecchi elettrici a bassa tensione > accessori per controllo di frequenza
Avviatori Rapid Link
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Più venduti
▲Dettagli
▲General specifications
| Product Name | Eaton Rapid Link Motor cable |
| Catalog Number | 198282 |
| EAN | 4015081958566 |
| Product Length/Depth | 10100 mm |
| Product Height | 30 mm |
| Product Width | 50 mm |
| Product Weight | 2.95 kg |
| Certifications | EN 61684 DIN VDE 0110 IEC/EN 60529 |
| Model Code | RASP-CM2-10M |
Features & Functions
| Enclosure material | Metal |
| Functions | Connecting the speed controller to the motor |
| Material | Cable: Copper (Cu) flexible according to VDE 0295 Class 6 Outer casing halogen free |
| RAL-number | 2003 |
General information
| Accessory/spare part type | Cable |
| Degree of protection | IP65 |
| Flammability characteristics | Flame retardance, fire propagation: according to IEC 60332-2 |
| Product Category | Accessories |
| Product Category | Accessories |
| Terminal capacity | 4 x 1.5 + 2 x (2 x 0.75) mm² screened, Connection cable Conductor cross-section, Contact pins: 4 x 1.5 + 4 x 0.75 mm², Metal housing with plug-in connection |
| Used with | RASP |
Ambient conditions, mechanical
| Environmental resistance | VDE 0472 Part 803 A/B (Resistance to oils and acids) |
Climatic environmental conditions
| Ambient operating temperature - min | -30 °C |
| Ambient operating temperature - max | 70 °C |
Contacts
| Contact material | Silver-plated copper |
Cable
| Outer cable diameter | 9 - 13 mm |
| Permitted bending radius | 10 x outer cable diameter |
Design verification
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| Caratteristica | Valore |
|---|---|
| tipo di accessori/pezzi di ricambio (EF000215) | cavo |
| accessorio (EF013236) | Sì |
| pezzo di ricambio (EF013237) | No |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| RASP-CM2-10M Y7-198282 198282 IT_198282.pdf | 110 Kbytes |
|
