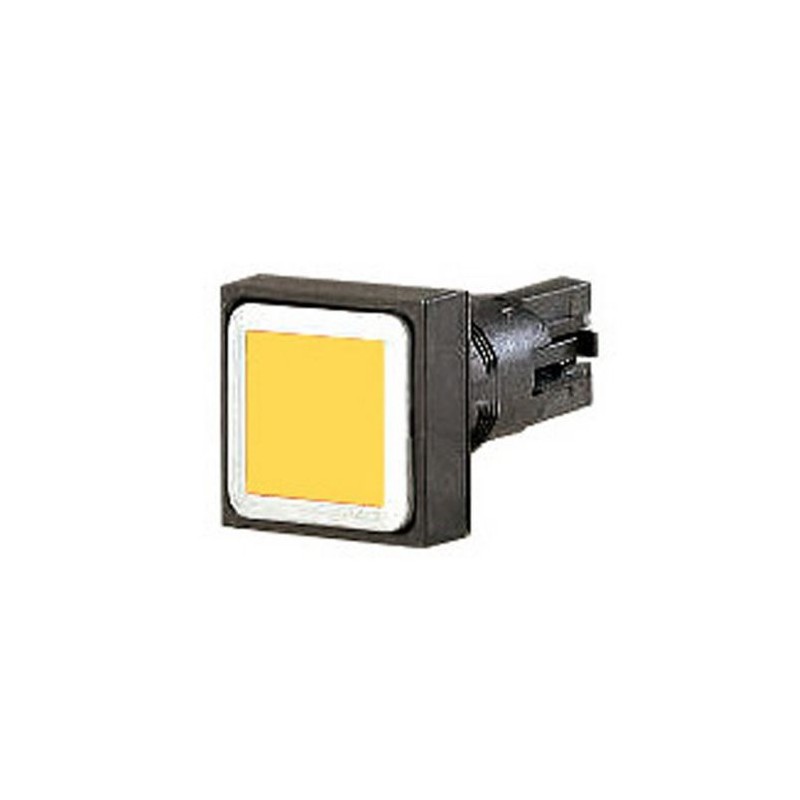

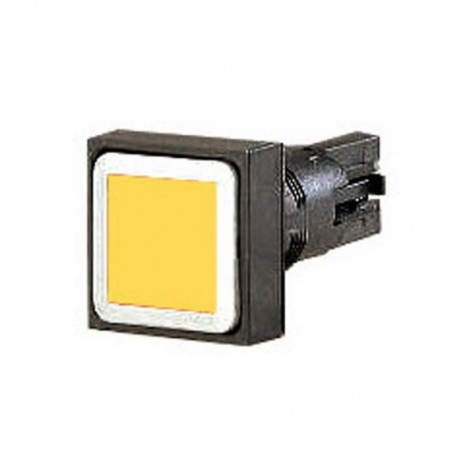

Q18DR-GE 090482 Y7-90482 EATON ELECTRIC Pulsante, giallo, permanente
Q18DR-GE
090482
Y7-90482
EATON-MOELLER
Pulsante, giallo, permanente
Pulsante da Incasso 16 mm 18x18 mm Interblocco Giallo
Eaton Moeller® series RMQ16 Pushbutton, yellow, maintained Q18DR-GE
Apparecchi elettrici a bassa tensione > Pulsante da quadro
Ausili di controllo e segnalazione
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series RMQ16 Pushbutton
Catalog Number
090482
EAN
4015080904823
Product Length/Depth
50 mm
Product Height
18 mm
Product Width
18 mm
Product Weight
0.007 kg
Certifications
CE
UL File No.: E29184
CSA File No.: 46552
CSA Class No.: 3211-03
IEC/EN 60947
CSA
VDE 0660
UL
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL 508
UL File No.: E29184
CSA File No.: 46552
CSA Class No.: 3211-03
IEC/EN 60947
CSA
VDE 0660
UL
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL 508
Model Code
Q18DR-GE
Features & Functions
Bezel color
Black
Bezel material
Plastic
Design
Flat
Fitted with:
Front ring
Inscription
Blank
General
Degree of protection
IP65
NEMA 1
NEMA 1
Degree of protection (front side)
IP65
NEMA 1
NEMA 1
Lifespan, mechanical
3,000,000 Operations
Opening diameter
16 mm
Operating frequency
1800 Operations/h
Product category
RMQ16
Size
Front dimensions: 18 x 18 mm
Terminal capacity
0.5 - 1.0 mm²
Terminal size
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
2.8 x 0.8 mm to DIN 46244, Blade terminal
2.8 x 0.8 mm to DIN 46244, Blade terminal
Type
Pushbutton actuator
Ambient conditions, mechanical
Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature (enclosed) - min
25 °C
Ambient operating temperature (enclosed) - max
40 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Actuator
Actuating force
4 N
Actuator color
Yellow
Actuator function
Switching function latching
Maintained
Maintained
Communication
Connection to SmartWire-DT
No
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| colore del pulsante (EF000190) | giallo |
| numero di punti di comando (EF001372) | 1 |
| tipo di lente (EF006253) | quadratico |
| diametro del foro (EF000079) | 16 mm |
| larghezza dell'apertura (EF004565) | 0 mm |
| altezza dell'apertura (EF004778) | 0 mm |
| forma del pulsante (EF001546) | piatto |
| adatto per illuminazione (EF001142) | No |
| con copertura protettiva (EF005500) | No |
| etichettato (EF001537) | No |
| funzione di commutazione a bloccaggio (EF007447) | Sì |
| a impulso (EF001407) | No |
| con anello frontale (EF006014) | Sì |
| materiale dell'anello frontale (EF005972) | materiale sintetico |
| colore dell'anello frontale (EF002429) | nero |
| grado di protezione (IP), lato frontale (EF003118) | IP65 |
| indice di protezione (NEMA), lato frontale (EF011961) | 1 |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| Q18DR-GE Y7-90482 090482 EN_025434.pdf | 1 Mbytes |
|
