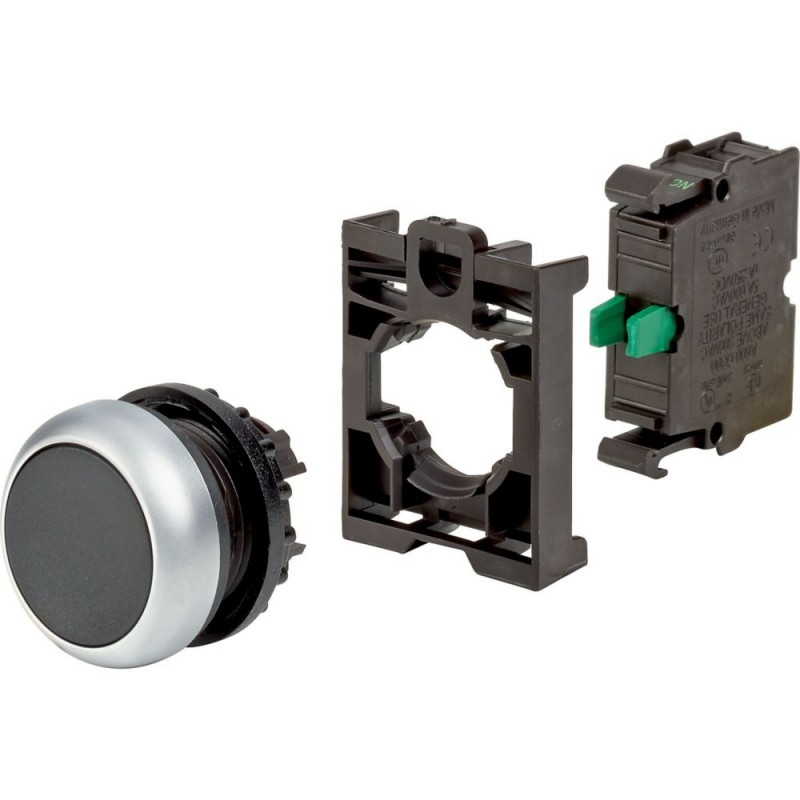

EATON - MOELLER M22-D-S-K10-BVP 110933 Y7-110933 - Immagine 1

Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica per i dettagli.

M22-D-S-K10-BVP 110933 Y7-110933 EATON ELECTRIC Pulsante 1 NA, apparecchio completo

Riferimento: M22-D-S-K10-BVP

Codice: 110933

Numero di catalogo: Y7-110933

Produttore: EATON - MOELLER

Descrizione:

Pulsante 1 NA, apparecchio completo
Pulsante a filo; 22 mm; Ritorno; Nero; 1 NO; Anello in titanio; Vescica
Eaton Moeller® series M22 Pushbutton, RMQ-Titan, flush, momentary, black, Blister pack for hanging
Pulsante, Gamma prodotti: RMQ-Titan, Descrizione: Blister da appendere., Soluzione pratica completa., Ordinabile con un unico codice articolo, Collegamento a SmartWire-DT: no

Categorie:

  • Apparecchi elettrici a bassa tensione > Pulsante da quadro
  • EATON - MOELLER > Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON - MOELLER

  • Dettagli
  • ETIM
  • PDF
  • Recensioni
Garanzia, riparazione e restituzione.

Prezzo unitario: 12,28 €

Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Calcola prezzo per quantità

QuantitàPrezzo

Scadenza standard: 5 giorni.

  • Questi tempi di consegna sono una stima e possono leggermente variare quando l'ordine sarà elaborato.

VISTI DI RECENTE

DETTAGLI

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
110933
EAN
4015081104628
Product Length/Depth
50 mm
Product Height
80 mm
Product Width
50 mm
Product Weight
0.025 kg
Compliances
CE
Certifications
DNV
GL
LR
Model Code
M22-D-S-K10-BVP

Features & Functions

Bezel color
Titanium
Bezel material
Plastic
Fitted with:
Front ring

General

Degree of protection (front side)
NEMA 4X
IP67
Opening diameter
22 mm
Product category
RMQ-Titan

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Communication

Connection to SmartWire-DT
No

Actuator

Actuator color
Black
Actuator function
Spring-return

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.11 W
Rated operational current for specified heat dissipation (In)
6 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 110933 Apparecchi elettrici a bassa tensione (EC000221)

Nome caratteristicacolore del pulsante (EF000190)
Valore caratteristicaBlack
Nome caratteristicanumero di punti di comando (EF001372)
Valore caratteristica1
Nome caratteristicatipo di lente (EF006253)
Valore caratteristicaRound
Nome caratteristicadiametro del foro (EF000079)
Valore caratteristica22 mm
Nome caratteristicalarghezza dell'apertura (EF004565)
Valore caratteristica0 mm
Nome caratteristicaaltezza dell'apertura (EF004778)
Valore caratteristica0 mm
Nome caratteristicaforma del pulsante (EF001546)
Valore caratteristicaFlat
Nome caratteristicaadatto per illuminazione (EF001142)
Valore caratteristicafalse
Nome caratteristicacon copertura protettiva (EF005500)
Valore caratteristicafalse
Nome caratteristicaetichettato (EF001537)
Valore caratteristicafalse
Nome caratteristicafunzione di commutazione a bloccaggio (EF007447)
Valore caratteristicafalse
Nome caratteristicaa impulso (EF001407)
Valore caratteristicatrue
Nome caratteristicacon anello frontale (EF006014)
Valore caratteristicatrue
Nome caratteristicamateriale dell'anello frontale (EF005972)
Valore caratteristicaPlastic
Nome caratteristicacolore dell'anello frontale (EF002429)
Valore caratteristicaChrome
Nome caratteristicagrado di protezione (IP), lato frontale (EF003118)
Valore caratteristicaIP67
Nome caratteristicaindice di protezione (NEMA), lato frontale (EF011961)
Valore caratteristica4X
