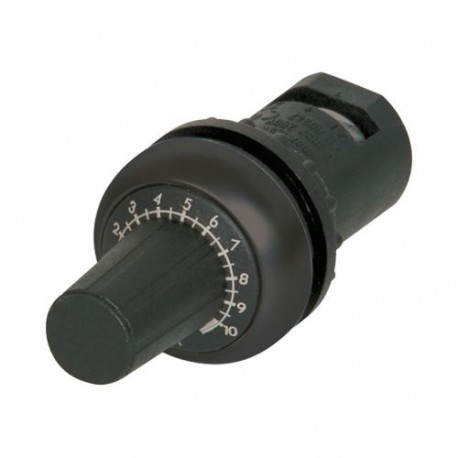

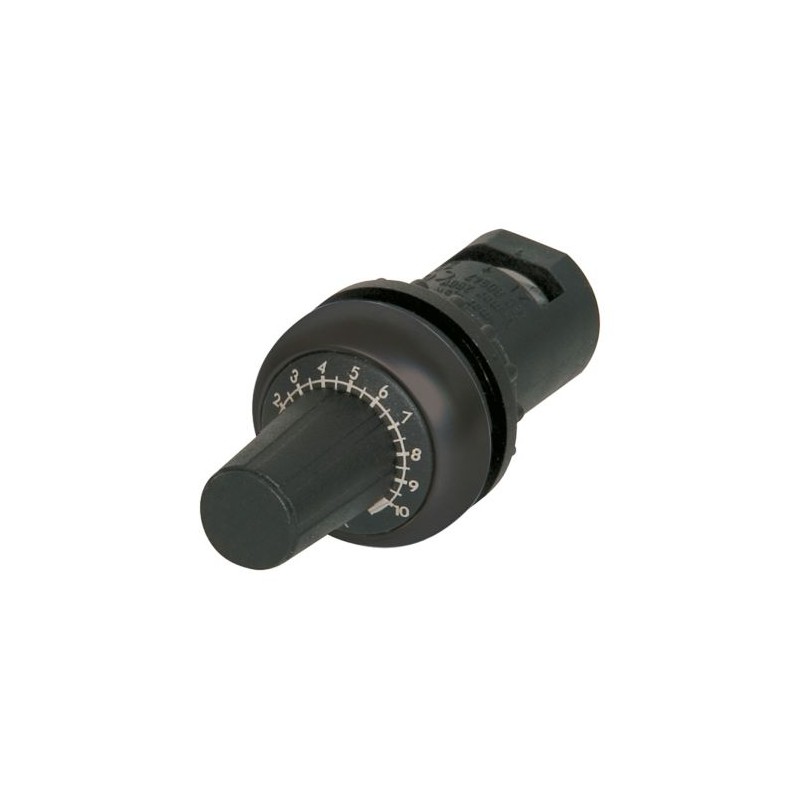

M22S-R*-* 263372 Y7-263372 EATON ELECTRIC Potenziometro, secondo specifica

M22S-R*-*

263372

Y7-263372

EATON-MOELLER

Potenziometro, secondo specifica

Potenziometro; 22 mm; Valore personalizzabile; Anello nero

Eaton Moeller® series M22 Potentiometer, Classical, M22, 22.5 mm, P 0.5 W, Bezel: black

Potenziometro, RMQ Versione: Classico, Riferimento gruppo di parti (ad es. DIL): M22, Diametro foro di montaggio: 22,5 mm, Unità singola, Descrizione: 3 morsetti a vite singoli, Precisione del valore di resistenza: ± 10% (lineare), Resistenza: Selezionabile, → Nota, Potenza nominale: P= 0,5 W, Grado di protezione: IP66, Cornice: nera, Connessione SmartWire-DT: no, Norme: IEC/EN 60947, VDE 0660

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Potenziometro per dispositivi di controllo

Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

* Questo articolo è ristretto. Per favore chiedete noi un preventivo per controllare se ci sono unità disponibili o offrono un prodotto alternativo.

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series M22 Potentiometer
Catalog Number
263372
Product Length/Depth
70 mm
Product Height
29 mm
Product Width
29 mm
Product Weight
0.034 kg
Certifications
CE
UL File No.: E29184
CSA
UL 508
VDE 0660
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
IEC/EN 60947
UL
CSA File No.: 012528
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
IEC/EN 60947-5
Model Code
M22S-R*-*

Features & Functions

Bezel color
Black
Design
Classical
Electric connection type
Screw connection
Fitted with:
3 individual screw terminals

General

Degree of protection
IP66
NEMA Other
Lifespan, mechanical
25,000 Operations
Opening diameter
22.5 mm
Overvoltage category
III
Pollution degree
3
Rated impulse withstand voltage (Uimp)
4000 V AC
Type
Potentiometer

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Terminal capacities

Terminal capacity (solid)
0.5 - 1.5 mm²
Terminal capacity (stranded)
0.5 - 1.5 mm²
Tightening torque
0.5 Nm, Screw terminals

Electrical rating

Power consumption
0.5 W
Rated insulation voltage (Ui)
250 V
Resistance
0 Ohm
Configurable

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0.5 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 263372 Apparecchi elettrici a bassa tensione (EC001027)
Caratteristica Valore
resistenza (EF002431) 0 Ohm
assorbimento di potenza (EF000346) 0.5 W
diametro del foro (EF000079) 22.5 mm
numero di giri (EF006943) 1
tipo di collegamento elettrico (EF003961) raccordo a vite
grado di protezione (IP) (EF005474) IP66
indice di protezione (NEMA) (EF011959) altro

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22S-R*-* Y7-263372 263372 ES_187086.pdf 1 Mbytes M22S-R*-* Y7-263372 263372 ES_187086.pdf
