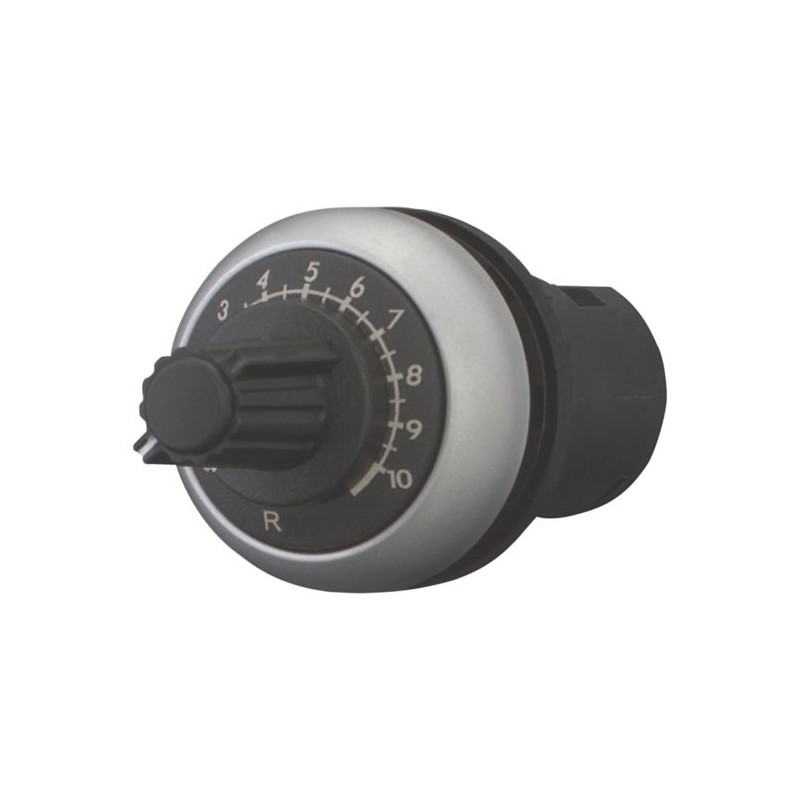

M22-R100K 229493 Y7-229493 EATON ELECTRIC Potenziometro, 100k, fissaggio frontale Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

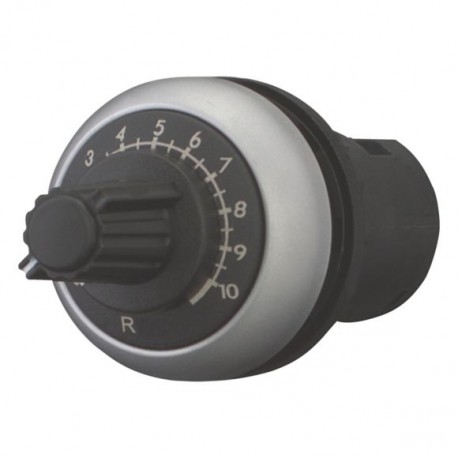

M22-R100K 229493 Y7-229493 EATON ELECTRIC Potenziometro, 100k, fissaggio frontale

M22-R100K

229493

Y7-229493

EATON-MOELLER

Potenziometro, 100k, fissaggio frontale

Potenziometro 22 mm R = 100 kOhm Anello in Titanio

Eaton Moeller® series M22 Potentiometer, Classical, M22, 22.5 mm, R 100 kΩ, P 0.5 W, Bezel: titanium

Potenziometro, Struttura RMQ: Classic, Riferimento gruppo di parti (ad es. DIL): M22, Diametro foro di montaggio: 22,5 mm, Unità singola, Descrizione: 3 morsetti a vite singoli, Precisione del valore di resistenza: ± 10% (lineare), Impedenza: R= 100 kΩ, Potenza nominale: P= 0,5 W, Grado di protezione: IP66, Cornice: titanio, Collegamento SmartWire-DT: no, Norme: IEC/EN 60947, VDE 0660

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Potenziometro per dispositivi di controllo

Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $62.02
Prezzo unitario: $62.02
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series M22 Potentiometer
Catalog Number
229493
EAN
4015082294939
Product Length/Depth
70 mm
Product Height
29 mm
Product Width
29 mm
Product Weight
0.034 kg
Compliances
CE Marked
Certifications
IEC 60947-5
CSA Std. C22.2 No. 94-91
EN 60947-5
CSA Std. C22.2 No. 14-05
UL 508
VDE
CE
CSA File No.: 012528
VDE 0660
CSA Class No.: 3211-03
UL File No.: E29184
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
UL
IEC/EN 60947-5
IEC/EN 60947
CSA-C22.2 No. 94-91
CSA
Model Code
M22-R100K

Features & Functions

Bezel color
Titanium
Design
Classical
Electric connection type
Screw connection
Fitted with:
3 individual screw terminals

General

Degree of protection
IP66
NEMA Other
Lifespan, mechanical
25,000 Operations
Opening diameter
22.5 mm
Overvoltage category
III
Pollution degree
3
Rated impulse withstand voltage (Uimp)
4000 V AC
Type
Potentiometer

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Terminal capacities

Terminal capacity (solid)
0.5 - 1.5 mm²
Terminal capacity (stranded)
0.5 - 1.5 mm²
Tightening torque
0.5 Nm, Screw terminals

Electrical rating

Power consumption
0.5 W
Rated insulation voltage (Ui)
250 V
Resistance
100000 Ohm

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0.5 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 229493 Apparecchi elettrici a bassa tensione (EC001027)
Caratteristica Valore
resistenza (EF002431) 100000 Ohm
assorbimento di potenza (EF000346) 0.5 W
diametro del foro (EF000079) 22.5 mm
numero di giri (EF006943) 1
tipo di collegamento elettrico (EF003961) raccordo a vite
grado di protezione (IP) (EF005474) IP66
indice di protezione (NEMA) (EF011959) altro

Datasheet - PDF

▲
