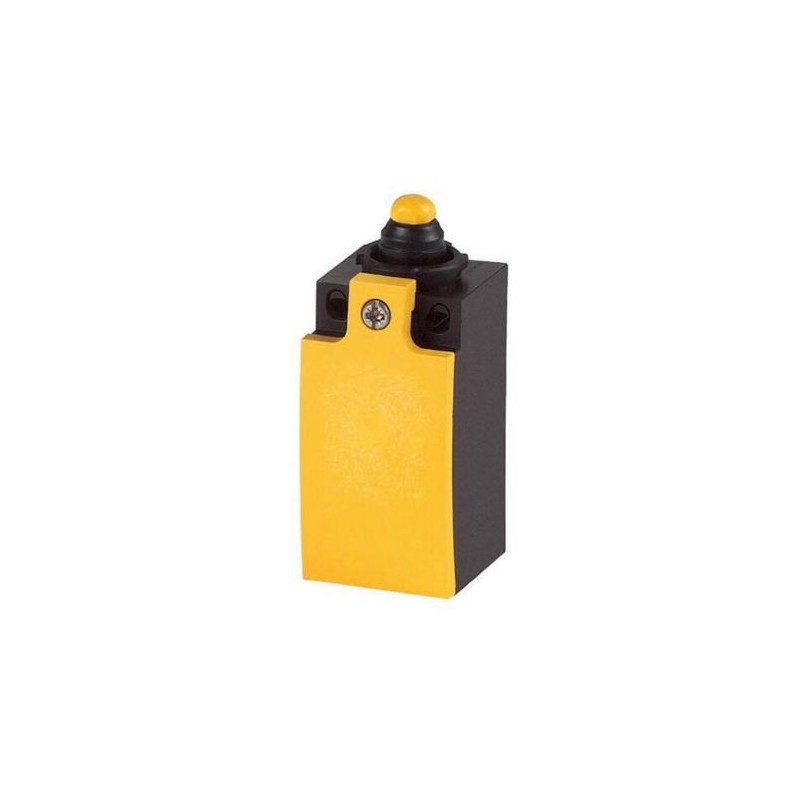

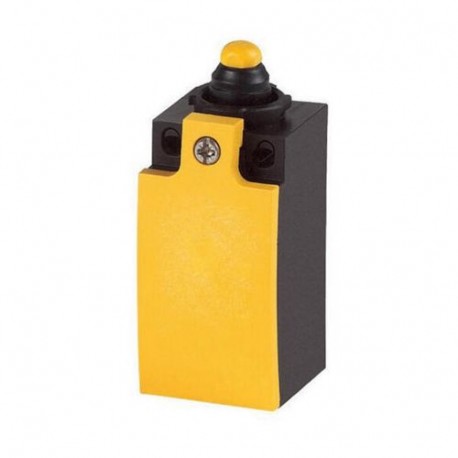

LS-S02A 116703 Y7-116703 EATON ELECTRIC Interruttore di posizione, 2 NC, perno con cappa

Riferimento: LS-S02A

Codice: 116703

Numero di catalogo: Y7-116703

Produttore: EATON - MOELLER

Descrizione:

Interruttore di posizione, 2 NC, perno con cappa
Interruttore di posizione in plastica 2 NC a pistone tondo
Eaton Moeller® series LS Position switch, Rounded plunger, Basic device, expandable, 2 NC, Screw terminal, Yellow, Insulated material, -25 - +70 °C, EN 50047 Form B
Interruttore di posizione, Funzione di base: Interruttori di posizione, Interruttori di posizione di sicurezza, Riferimento gruppo componenti: LS(M)-..., Gamma prodotti: Pistone arrotondato, Grado di protezione: IP66, IP67, Caratteristiche: Dispositivo di base, espandibile, Temperatura ambiente: -25 - +70 °C, Versione: EN 50047 Forma B, Contatti N/C = Normalmente chiuso: 2 NC, Note: = funzione di sicurezza, per apertura positiva secondo IEC/EN 60947-5-1, Apertura positiva (ZW): sì, Colore del coperchio della custodia: Giallo, Custodia: Materiale isolante, Tipo di connessione: Morsetto a vite, Norme: IEC/EN 60947

Categorie:

  • sensori > Interruttore
  • EATON - MOELLER > Interruttori di posizione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON - MOELLER

  • Dettagli
  • ETIM
  • PDF
  • Recensioni
Garanzia, riparazione e restituzione.

Prezzo unitario: 23,41 €

Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Calcola prezzo per quantità

QuantitàPrezzo

Scadenza standard: 3 settimane.

  • Questi tempi di consegna sono una stima e possono leggermente variare quando l'ordine sarà elaborato.

VISTI DI RECENTE

DETTAGLI

General specifications

Product Name
Eaton Moeller® series LS Position switch
Catalog Number
116703
EAN
4015081164486
Product Length/Depth
33.5 mm
Product Height
76.5 mm
Product Width
31 mm
Product Weight
0.051 kg
Compliances
CE Marked
Certifications
EN 60947-5
UL 508
CSA Std. C22.2 No. 14-05
IEC 60947-5
UL File No.: E29184
CSA File No.: 012528
CSA-C22.2 No. 14
CSA
CSA Class No.: 3211-03
IEC/EN 60947
UL Category Control No.: NKCR
CE
IEC/EN 60947-5
UL
Catalog Notes
Contacts with safety function, by positive opening to IEC/EN 60947-5-1
Model Code
LS-S02A

Specifiche del prodotto

Type
Features
Expandable
Forced opening
Positive opening
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Electric connection type
Cable entry metrical
Enclosure material finishing
Other
Operating frequency
6000 Operations/h
Pollution degree
3
Actuator alignment
Roller cam straight
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Enclosure material
Insulated material
Plastic
Enclosure type
Cuboid
Rated operational current (Ie) at DC-13, 110 V
0.6 A
Rated operational current (Ie) at DC-13, 125 V
0.8 A
Rated operational current (Ie) at DC-13, 220 V, 230 V
0.3 A
Rated operational current (Ie) at DC-13, 24 V
3 A
Rated operational current for specified heat dissipation (In)
6 A
Sensor height
61 mm
Sensor length
33.5 mm
Static heat dissipation, non-current-dependent Pvs
0 W
Width sensor
31 mm
Product category
Rounded plunger
Action
2021118113756-Mechanical Limit Switches.xlsm-Data
Rated impulse withstand voltage (Uimp)
4000 V AC
Enclosure color
Yellow Cover
Actuating force at beginning/end of stroke
1.0 N/8.0 N
Explosion safety category for dust
None
Explosion safety category for gas
None
Actuator type
Plunger
Actuating torque of rotary drives
0.2 Nm
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Diameter sensor
0 mm
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.17 W
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
2
Number of contacts (normally open contacts)
0
Number of safety auxiliary contacts
2
Rated insulation voltage (Ui)
400 V
Rated operational current (Ie) at AC-15, 125 V
6 A
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
6 A
Rated operational current (Ie) at AC-15, 24 V
6 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
4 A
Design
EN 50047 Form B
Mounting position
As required
Rated conditional short-circuit current (Iq)
1 kA
Overvoltage category
III
Control circuit reliability
1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)
1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA)
Connection type
Screw terminal
Temperature resistance
100 °C, Contact temperature of roller head
Degree of protection
IP66/IP67
NEMA Other
Interface type
None
Switch function type
Slow-action switch
Lifespan
8,000,000 mechanical Operations
Repetition accuracy
0.15 mm (Contacts/switching capacity)
Shock resistance
25 g, Standard-action contact, Mechanical, Half-sinusoidal shock 20 ms
Supply frequency
Max. 400 Hz, Contacts
Suitable for
Safety functions
Operating speed
Max. 1/0.5 m/s (with DIN cam, mechanical actuation)
For angle of actuation α = 0°/30°
Short-circuit protection rating
Max. 6 A gG/gL, Fuse, Contacts
Terminal capacity (flexible with ferrule)
1 x (0.5 - 1.5) mm²
Terminal capacity (solid)
1 x (0.5 - 2.5) mm²

ETIM for 116703 Sensori (EC000030)

Nome caratteristicalarghezza del sensore (EF007094)
Valore caratteristica31 mm
Nome caratteristicadiametro del sensore (EF007111)
Valore caratteristica0 mm
Nome caratteristicaaltezza del sensore (EF007283)
Valore caratteristica61 mm
Nome caratteristicalunghezza del sensore (EF007334)
Valore caratteristica33.5 mm
Nome caratteristicacorrente d'esercizio nominale Ie per AC-15, 24 V (EF007084)
Valore caratteristica6 A
Nome caratteristicacorrente d'esercizio nominale Ie per AC-15, 125 V (EF007082)
Valore caratteristica6 A
Nome caratteristicacorrente d'esercizio nominale Ie per AC-15, 230 V (EF001385)
Valore caratteristica6 A
Nome caratteristicacorrente d'esercizio nominale Ie per DC-13, 24 V (EF007087)
Valore caratteristica3 A
Nome caratteristicacorrente d'esercizio nominale Ie per DC-13, 125 V (EF007085)
Valore caratteristica0.8 A
Nome caratteristicacorrente d'esercizio nominale Ie per DC-13, 230 V (EF001386)
Valore caratteristica0.3 A
Nome caratteristicafunzione di commutazione (EF000189)
Valore caratteristicaorgano di comando lento
Nome caratteristicafunzione di commutazione a bloccaggio (EF007447)
Valore caratteristicaNo
Nome caratteristicauscita elettronica (EF006987)
Valore caratteristicaNo
Nome caratteristicaapertura forzata (EF006694)
Valore caratteristicaSì
Nome caratteristicanumero di contatti ausiliari di sicurezza (EF006940)
Valore caratteristica2
Nome caratteristicanumero di contatti di riposo (EF008255)
Valore caratteristica2
Nome caratteristicanumero di contatti di chiusura (EF008256)
Valore caratteristica0
Nome caratteristicanumero di contatti invertitori (EF008257)
Valore caratteristica0
Nome caratteristicatipo di interfaccia (EF006977)
Valore caratteristicasenza
Nome caratteristicatipo di interfaccia per comunicazione sicura (EF003956)
Valore caratteristicasenza
Nome caratteristicaforma di costruzione della scatola (EF004008)
Valore caratteristicacubo
Nome caratteristicamateriale della scatola (EF001596)
Valore caratteristicamateriale sintetico
Nome caratteristicarivestimento scatola (EF001601)
Valore caratteristicaaltro
Nome caratteristicatipo di elemento di azionamento (EF006976)
Valore caratteristicapulsante a bottone
Nome caratteristicaallineamento dell'elemento di azionamento (EF008793)
Valore caratteristicapunteria a rullo diritto
Nome caratteristicatipo di collegamento elettrico (EF003961)
Valore caratteristicainserimento cavo (metrico)
Nome caratteristicacon indicatore di stato (EF001602)
Valore caratteristicaNo
Nome caratteristicaadatto per funzioni di sicurezza (EF001597)
Valore caratteristicaSì
Nome caratteristicacategoria di protezione antideflagrante per gas (EF003997)
Valore caratteristicasenza
Nome caratteristicacategoria di protezione antideflagrante per polvere (EF003998)
Valore caratteristicasenza
Nome caratteristicatemperatura ambiente durante il funzionamento (EF007515)
Valore caratteristica-25 °C
Nome caratteristicagrado di protezione (IP) (EF005474)
Valore caratteristicaIP66/IP67
Nome caratteristicaindice di protezione (NEMA) (EF011959)
Valore caratteristicaaltro
