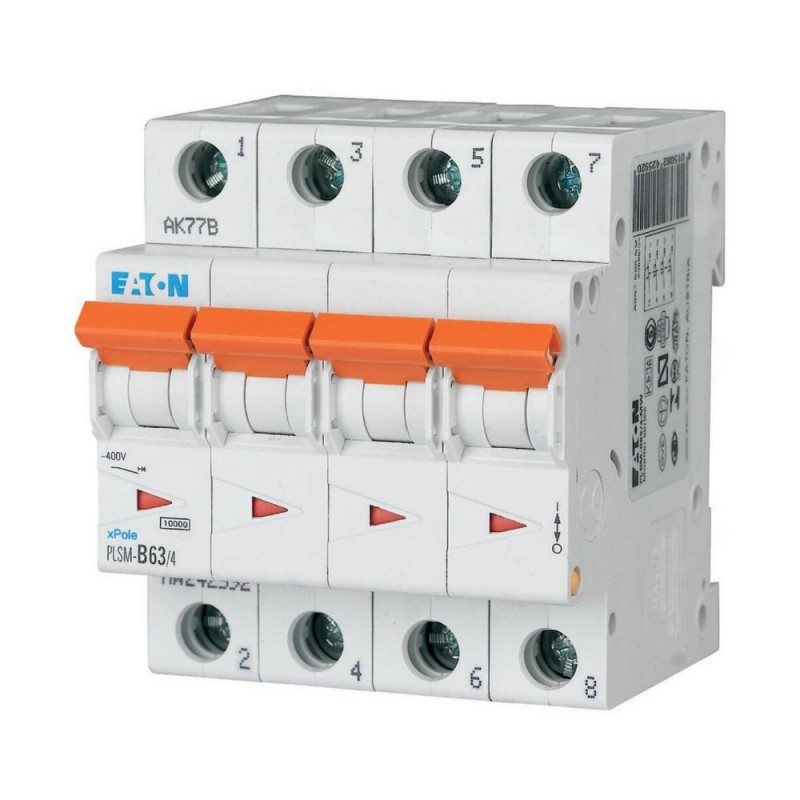

PLSM-B63/4-MW 242592 Y7-242592 EATON ELECTRIC Interruttore protettore, 63A, 4p, curva caratteristica B

Riferimento: PLSM-B63/4-MW

Codice: 242592

Numero di catalogo: Y7-242592

Produttore: EATON - MOELLER

Descrizione:

Interruttore protettore, 63A, 4p, curva caratteristica B
Interruttore Automatico PLSM, 4P, Curva B, 63A
Eaton Moeller series xPole - PLS6/M MCB. PLSM, 4 pole, tripping characteristic: B, rated current In: 63 A, rated switching capacity IEC/EN 60898-1: 10 kA
Interruttore magnetotermico, PLSM, 4 poli, caratteristica di sgancio: B, corrente nominale In: 63 A, potenza di commutazione nominale secondo IEC/EN 60898-1: 10 kA, Quadri per applicazioni residenziali e commerciali

Categorie:

  • disgiuntori, fusibili, apparecchi per l’installazione in serie/su parete > Interruttore magnetotermico
  • EATON - MOELLER > Quadri modulari - industriali

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON - MOELLER

  • Dettagli
  • ETIM
  • PDF
  • Recensioni
Garanzia, riparazione e restituzione.

Prezzo unitario: 252,04 €

Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Calcola prezzo per quantità

QuantitàPrezzo

Scadenza standard: 3 settimane.

  • Questi tempi di consegna sono una stima e possono leggermente variare quando l'ordine sarà elaborato.

VISTI DI RECENTE

DETTAGLI

General specifications

Product Name
Eaton Moeller series xPole - PLS6/M MCB
Catalog Number
242592
EAN
4015082425920
Product Length/Depth
80 mm
Product Height
75 mm
Product Width
70 mm
Product Weight
0.478 kg
Compliances
RoHS conform
Model Code
PLSM-B63/4-MW

Specifiche del prodotto

Used with
PLSM
Miniature circuit breaker
Type
Special features
Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Application
  • Switchgear for residential and commercial applications
  • xPole - Switchgear for residential and commercial applications
Amperage Rating
63 A
Features
Additional equipment possible
Concurrently switching N-neutral
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Pollution degree
2
Degree of protection
IP20
Equipment heat dissipation, current-dependent
20.8 W
Rated impulse withstand voltage (Uimp)
4 kV
Tripping characteristic
B
Ambient operating temperature - max
75 °C
Ambient operating temperature - min
-25 °C
Built-in depth
70.5 mm
Connectable conductor cross section (multi-wired) - max
25 mm²
Connectable conductor cross section (multi-wired) - min
1 mm²
Connectable conductor cross section (solid-core) - max
25 mm²
Connectable conductor cross section (solid-core) - min
1 mm²
Current limiting class
3
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Heat dissipation capacity
0 W
Heat dissipation per pole, current-dependent
0 W
Width in number of modular spacings
4
Voltage type
AC
Overvoltage category
III
Number of poles
Four-pole
Release characteristic
B
Number of poles (protected)
4
Number of poles (total)
4
Rated insulation voltage (Ui)
440 V
Rated operational current for specified heat dissipation (In)
63 A
Rated operational voltage (Ue) - max
400 V
Rated short-circuit breaking capacity (EN 60898) at 230 V
10 kA
Rated short-circuit breaking capacity (EN 60898) at 400 V
10 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 230 V
0 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 400 V
0 kA
Rated switching capacity (IEC/EN 60898-1)
10 kA
Static heat dissipation, non-current-dependent
0 W
Power loss
18.6 W

ETIM for 242592 Disgiuntori, fusibili (EC000042)

Nome caratteristicaprofondità di montaggio (EF000218)
Valore caratteristica70.5 mm
Nome caratteristicacaratteristica di intervento (EF000889)
Valore caratteristicaB
Nome caratteristicanumero di poli (totale) (EF008618)
Valore caratteristica4
Nome caratteristicanumero di poli protetti (EF005548)
Valore caratteristica4
Nome caratteristicacorrente nominale (EF000227)
Valore caratteristica63 A
Nome caratteristicatensione nominale (EF000228)
Valore caratteristica400 V
Nome caratteristicatensione di isolamento nominale Ui (EF001366)
Valore caratteristica440 V
Nome caratteristicaresistenza nominale a tensione ad impulso (Uimp) (EF011980)
Valore caratteristica4 kV
Nome caratteristicapotere di interruzione nominale Icn secondo EN 60898 a 230 V (EF009556)
Valore caratteristica10 kA
Nome caratteristicatipo di tensione (EF000187)
Valore caratteristicaAC
Nome caratteristicapotere di interruzione nominale Icn secondo EN 60898 a 400 V (EF009555)
Valore caratteristica10 kA
Nome caratteristicapotere di interruzione nominale Icu secondo IEC 60947-2 a 230 V (EF009557)
Valore caratteristica0 kA
Nome caratteristicapotere di interruzione nominale Icu secondo IEC 60947-2 a 400 V (EF009558)
Valore caratteristica0 kA
Nome caratteristicafrequenza (EF000416)
Valore caratteristica50 Hz
Nome caratteristicapotenza dissipata (EF005387)
Valore caratteristica18.6 W
Nome caratteristicaclasse di limitazione energetica (EF002568)
Valore caratteristica3
Nome caratteristicamontaggio a incasso (EF007517)
Valore caratteristicaNo
Nome caratteristicaconduttore neutro a commutazione (EF005997)
Valore caratteristicaSì
Nome caratteristicacategoria di sovratensione (EF002569)
Valore caratteristica3
Nome caratteristicagrado di inquinamento (EF002570)
Valore caratteristica2
Nome caratteristicadispositivi supplementari possibili (EF008148)
Valore caratteristicaSì
Nome caratteristicanumero di unità modulari (EF002950)
Valore caratteristica4
Nome caratteristicagrado di protezione (IP) (EF005474)
Valore caratteristicaIP20
Nome caratteristicatemperatura ambiente durante il funzionamento (EF007515)
Valore caratteristica-25 °C
Nome caratteristicasezione conduttore collegabile multifilare (EF007343)
Valore caratteristica1 mm²
Nome caratteristicasezione conduttore collegabile unifilare (EF007337)
Valore caratteristica1 mm²
Nome caratteristicaantideflagrante (EF004663)
Valore caratteristicaNo
